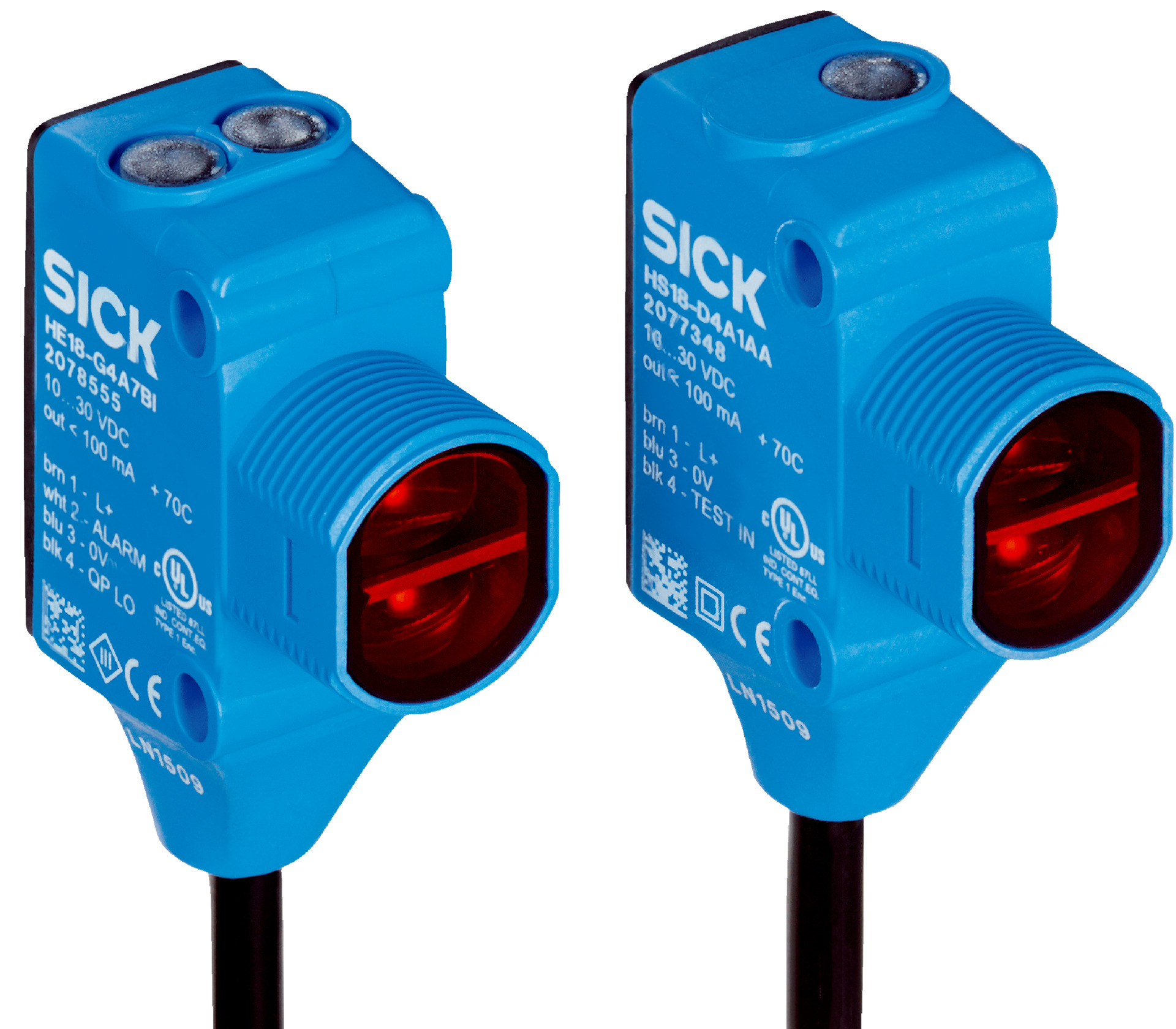

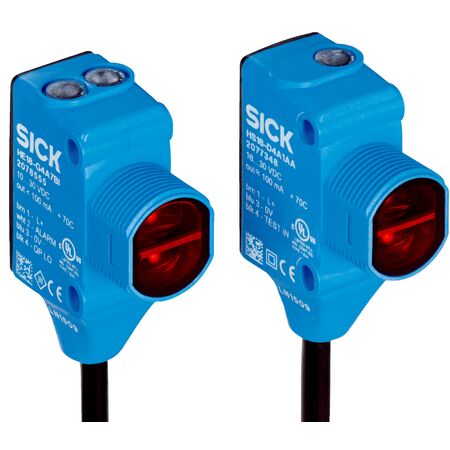

Photoelectric Sensor HSE18-P2B2BA | Through-Beam | 20m Sensing Range | IP67/IP69K Rated | by SICK
The HSE18-P2B2BA photoelectric sensor is a through-beam sensor designed for industrial automation, offering a sensing range of up to 20 meters. With a high switching frequency of 1,000 Hz and an IP67/IP69K rating, it excels in harsh environments, making it ideal for safety and monitoring applications in manufacturing and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor HSE18-P2B2BA | Through-Beam | 20m Sensing Range | IP67/IP69K Rated | by SICK
Brand: SICK
SKU: 1084438
Alternatively Known As: Through-beam photoelectric sensor, M18 photoelectric sensor, SICK HSE18 sensor, industrial photoelectric sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 20 m
- Light source: PinPoint LED, 631 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: PNP, light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Cable with M8, 3-pin connector, 150 mm length
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Protection class: III
- Enclosure rating: IP67, IP69K
- Operating temperature: -40°C to +70°C
- Storage temperature: -40°C to +75°C
- Electromagnetic compatibility: EN 60947-5-2
- Dimensions (H x L x W): 45.5mm x 31.8mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 20 meters
- Hybrid housing design with M18 thread diameter
- Signal strength light bar for easy adjustment
- High switching frequency of 1,000 Hz
- IP67 and IP69K rated for harsh environments
- Wide ambient operating temperature range from -40°C to +70°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper alignment and secure mounting.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with ≤ 20 mA current draw
- Durable IP67/IP69K rated housing reduces waste by extending product life
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK HSE18-P2B2BA photoelectric sensor is available for immediate purchase, ideal for industrial automation and safety applications.
