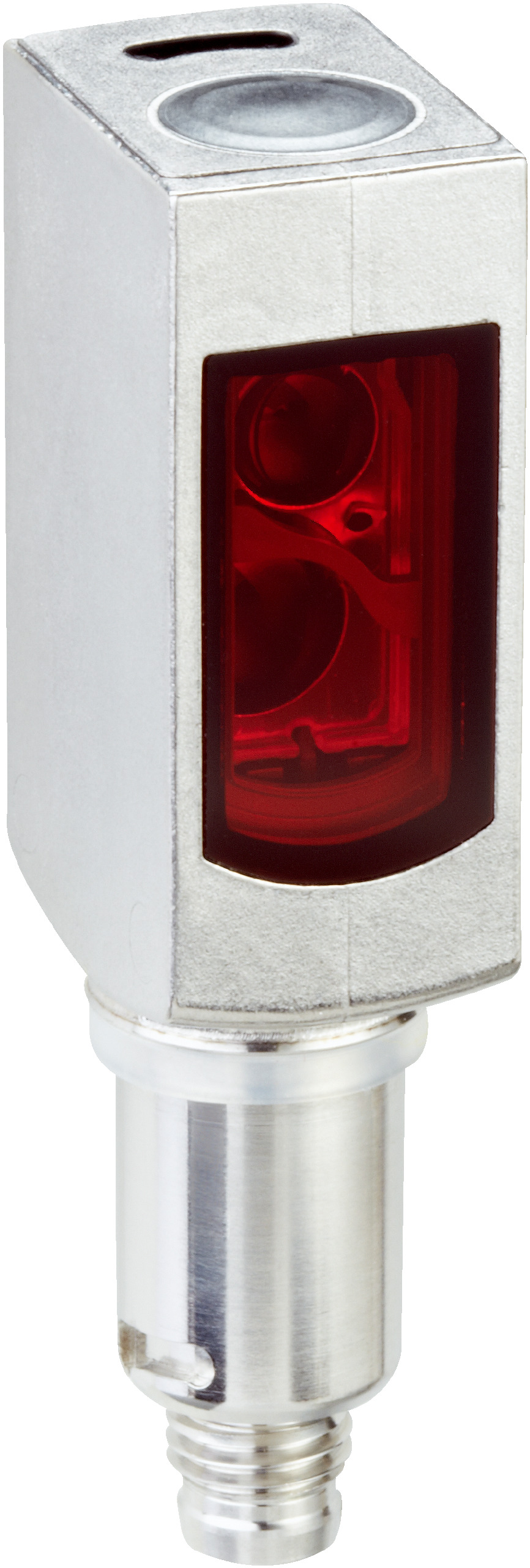

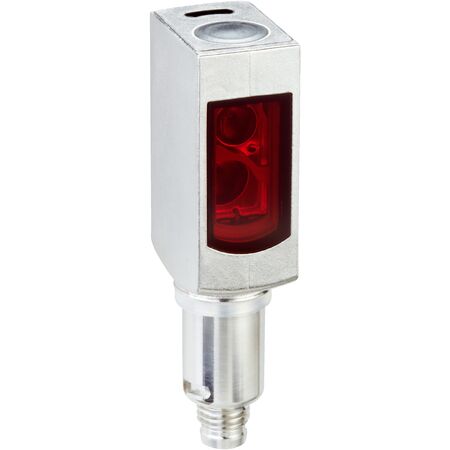

Photoelectric Sensor | Retro-Reflective | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
The Photoelectric Sensor is designed for industrial automation, featuring a sensing range of up to 5 meters without a reflector and a fast response time of under 0.5 ms. With its hygienic stainless steel housing and robust IP66/IP67/IP68/IP69K ratings, this sensor is perfect for washdown environments and reliable object detection, ensuring optimal performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor | Retro-Reflective | 5m Sensing Range | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1090378
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, IO-Link sensor, Stainless steel photoelectric sensor, SICK WLG4SC sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 to 5 meters
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 45 mm at 1.5 m
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Connection: Male connector M8, 4-pin
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Communication: IO-Link COM2 (38.4 kBaud), 16-bit process data
- Dimensions (H x L x W): 63mm x 22mm x 15mm
- Weight: 0.14 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 5 meters without reflector
- Polarisation filters for improved detection
- PinPoint LED visible red light with 650 nm wavelength
- Single teach-in button for easy adjustment
- Hygienic stainless steel V4A housing suitable for washdown environments
- IP66, IP67, IP68, and IP69K rated for robust protection
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- IO-Link communication interface with 16-bit process data
- Multiple logic and timer functions including AND, OR, WINDOW, and hysteresis
- Contamination display and device status diagnostics
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Detection of transparent objects
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces waste by extending product life
- Energy-efficient LED light source minimizes power consumption
- Robust IP ratings reduce need for frequent replacements in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLG4SC-3P5232HA00 photoelectric sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
