Photoelectric Sensor Through Beam | 20m Range | IP67 Rated | Infrared Light by NHP
Photoelectric sensor with 20m range and IP67 rating—ideal for industrial automation and safety applications. Built for reliable detection, with infrared light and durable plastic housing.
Sign in
Please login to continue to your account.

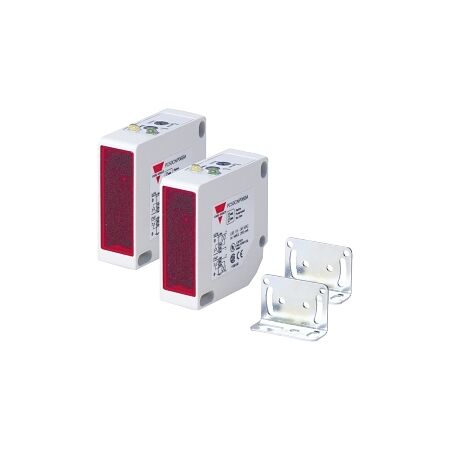

Product Name/Title: Carlo Gavazzi Photoelectric Sensor Through Beam Plastic SPDT NO NC M12 Plug Range 20m 5m
Brand: NHP
SKU: PC50CNT20KIT
Alternatively Known As: Through Beam Photoelectric Sensor, Infrared Photoelectric Sensor, NHP Photo Sensor
- Voltage Type: AC/DC
- Max Output Current: 200 mA
- Response Time: 1 ms
- Type of Electric Connection: Cable
- Material of Optical Surface: Plastic
- Material Housing: Plastic
- Construction Type Housing: Cuboid
- Degree of Protection: IP67
- Sensing Type: Transmitted beam emitter & receiver pair
- Type of Light: Infrared light
- Illumination Mode: Continuous light
- Wavelength of the Sensor: 880 nm
- Beam Angle Field of View: 2 °
- Max Switching Distance: 20000 mm
- Ambient Temperature: -20-60 °C
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.3 kg
- Transmitted beam emitter & receiver pair for reliable detection.
- IP67 rated for protection against dust and water.
- Professional installation by a qualified technician is recommended for optimal performance.
- Industrial automation for object detection and counting
- Safety applications in machinery and equipment
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
- Energy-efficient operation reduces overall power consumption.
1 year warranty against manufacturing defects.
The Carlo Gavazzi Photoelectric Sensor is available now for immediate purchase. Ideal for industrial automation and safety applications.
