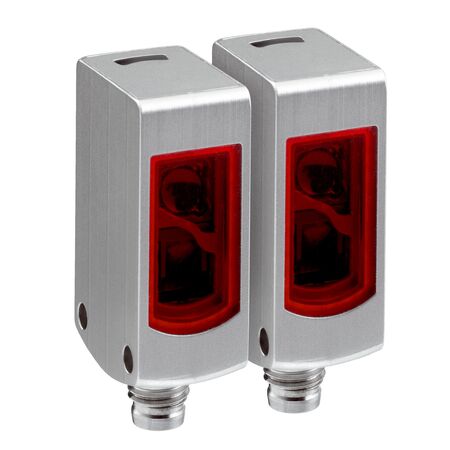

Photoelectric Sensor WSE4S-3E2130V | Through-Beam Sensing | IP66 to IP69K Protection | Slim Stainless Steel Design | by SICK
The WSE4S-3E2130V photoelectric sensor features a through-beam sensing principle with a maximum range of 4.5 meters, making it ideal for industrial automation and hygienic washdown applications. With a robust stainless steel V4A housing and high protection ratings (IP66 to IP69K), this sensor ensures reliable performance in demanding environments, while its fast response time of under 0.5 ms enhances operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor WSE4S-3E2130V | Through-Beam Sensing | IP66 to IP69K Protection | Slim Stainless Steel Design | by SICK
Brand: SICK
SKU: 1052877
Alternatively Known As: Through-beam photoelectric sensor, Washdown photoelectric sensor, Industrial photoelectric sensor, Stainless steel photoelectric sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max: 0 m to 5 m
- Sensing range typical: 0 m to 4.5 m
- Light source: PinPoint LED
- Type of light: Visible red light
- Light spot size at 2 m: Ø 50 mm
- Wavelength: 650 nm
- Adjustment: None
- Housing design: Washdown, slim
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Connection: M8, 3-pin connector
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Protection class: III
- Digital output type: NPN
- Switching mode: Dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Circuit protection: A, B, C
- Test input sender off: TE to 0 V
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- MTTFD: 753 years
- Mission time: 20 years
- Dimensions (H x L x W): 45mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 4.5 meters
- Visible red light with 650 nm wavelength
- Slim stainless steel V4A housing for washdown environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms
- NPN dark switching digital output with max 100 mA current
- Operating temperature range from -30°C to +70°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Robust design reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK WSE4S-3E2130V photoelectric sensor is available for immediate purchase, ideal for industrial automation and hygienic washdown applications.
