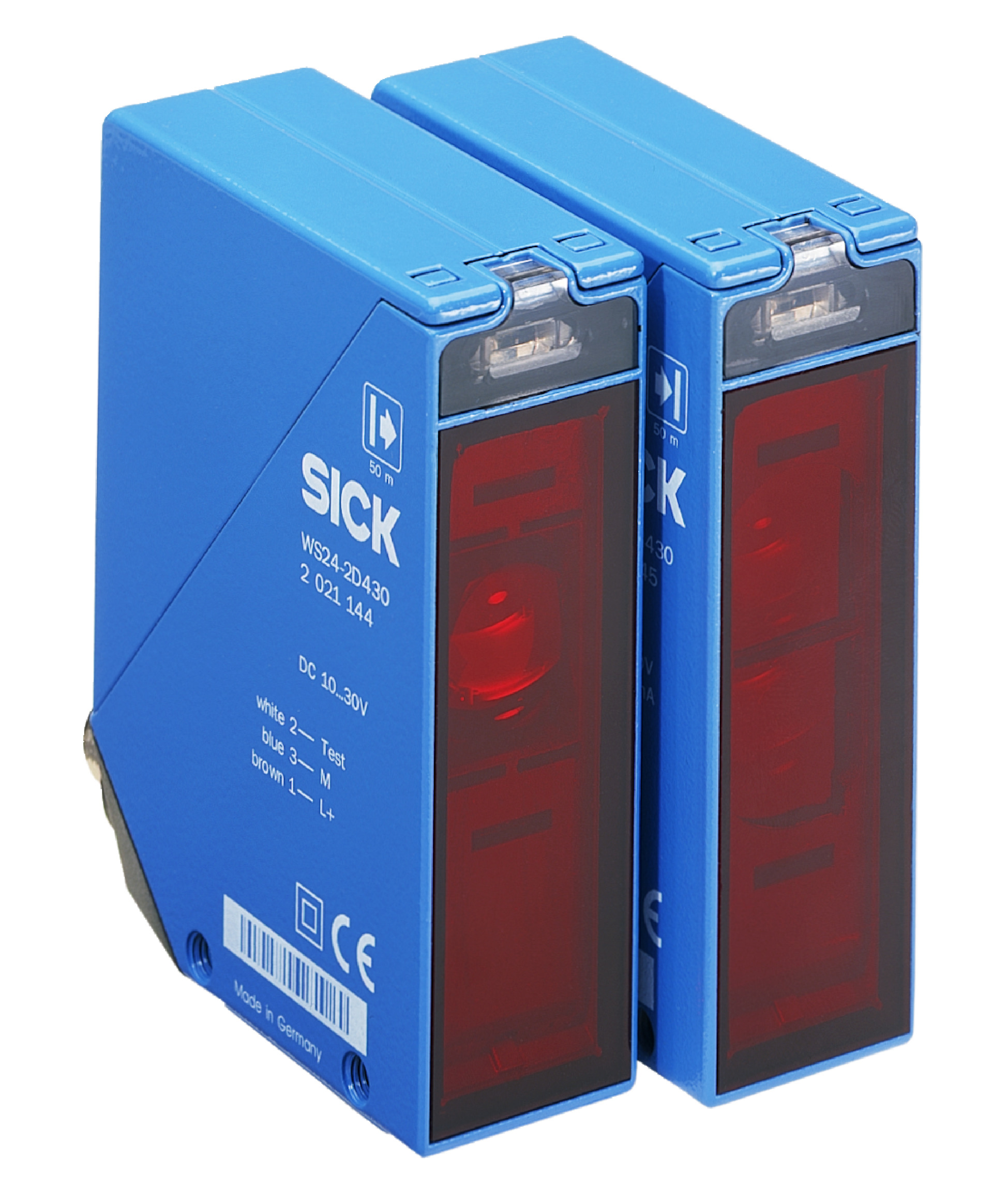

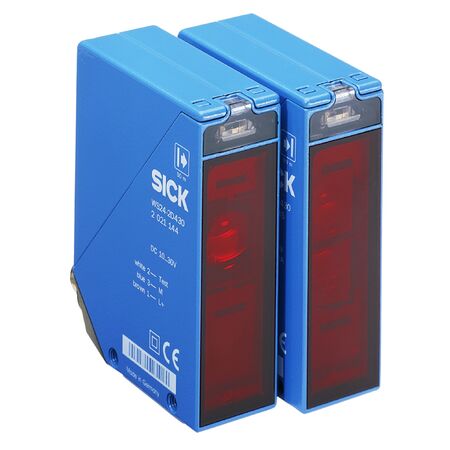

Photoelectric Sensor WS/WE24-2B440 | Through-Beam | IP69K Rated | Fast Response Time | by SICK
The WS/WE24-2B440 photoelectric sensor features a through-beam design with a sensing range of up to 50 m, making it ideal for industrial automation and safety applications. With a robust IP69K-rated metal housing and fast response time of ≤ 500 µs, this sensor ensures reliable performance in harsh environments, perfect for object detection and monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor WS/WE24-2B440 | Through-Beam | IP69K Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1017875
Alternatively Known As: Through-beam photoelectric sensor, Industrial photoelectric sensor, SICK WS/WE24 sensor, WS/WE24-2B440 sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 50 m (max 60 m)
- Focus angle: Approx. 1°
- Light source: Visible red LED
- Light spot size at 50 m: Ø 700 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender and receiver: 50 mA each
- Switching output: NPN, PNP selectable
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Angle of reception: Approx. 2.5°
- Time functions: Switch-on delay and off delay adjustable 0.5 s to 10 s
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, C, D
- Protection class: II
- Housing material: Metal, zinc diecast
- Optics material: Plastic, PMMA
- Enclosure rating: IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Front screen heating included
- Dimensions (H x L x W): 87.5mm x 65mm x 27mm
- Weight: 0.66 kg
Key Features
- Through-beam photoelectric sensor with visible red light LED
- Sensing range up to 50 m with max range 60 m
- Rectangular metal zinc diecast housing with IP69K rating
- Selectable switching mode: light/dark and PNP/NPN output
- Adjustable delay time from 0.5 s to 10 s
- Front screen heating for reliable operation in harsh environments
- High switching frequency of 1,000 Hz and fast response time ≤ 500 µs
- Male M12 4-pin connector for easy connection
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring, alignment, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
- Packaging and assembly line control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WS/WE24-2B440 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
