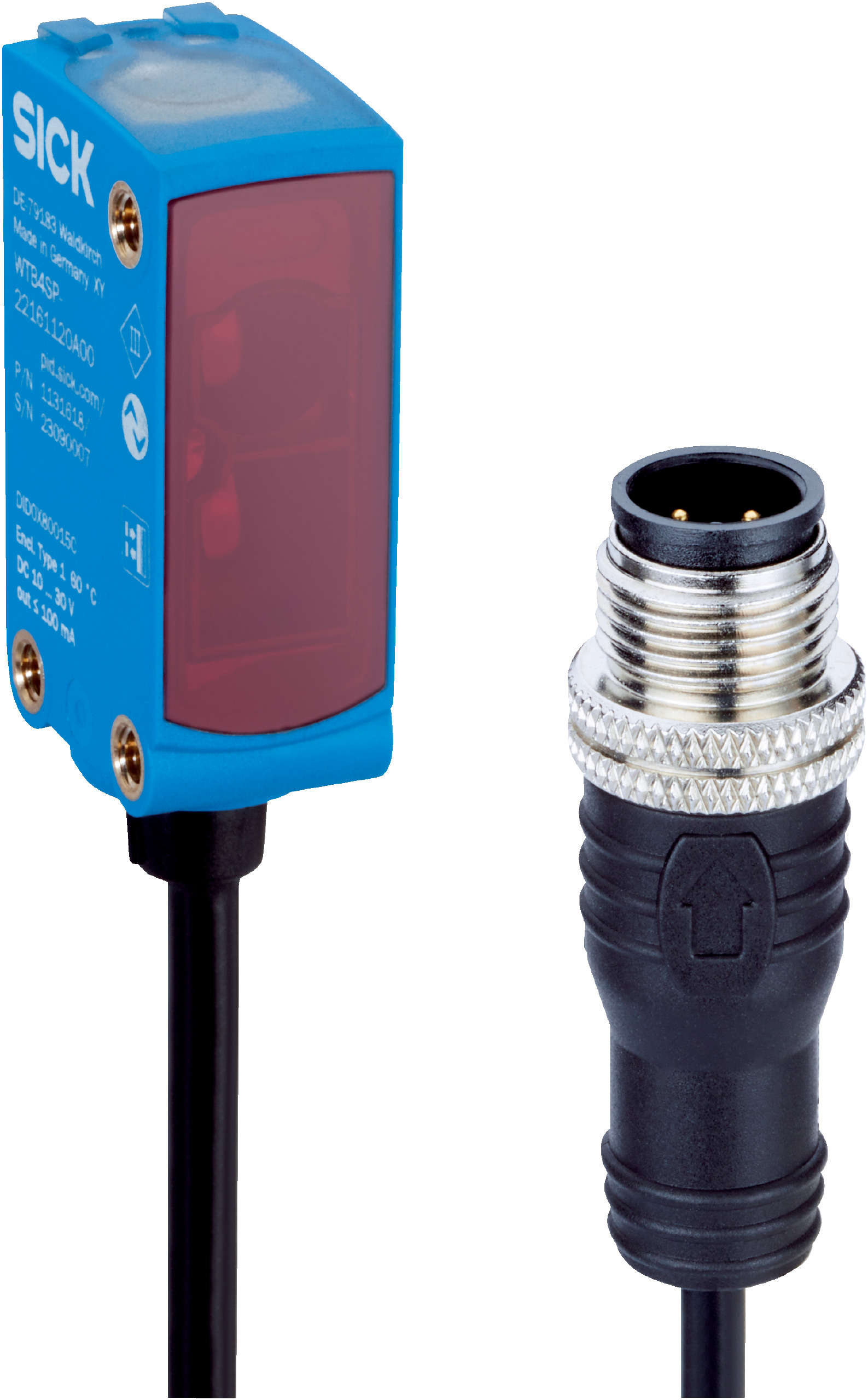

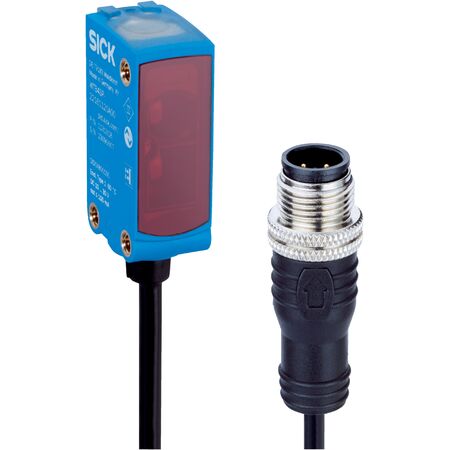

Photoelectric Sensor WLA4SP-8416A100A00 | 4m Sensing Range | IP66/IP67 Rated | by SICK
The WLA4SP-8416A100A00 photoelectric sensor excels in industrial automation with a sensing range of up to 4 meters and a robust IP66/IP67 rating. Featuring a PinPoint LED light source and fast response time of ≤ 500 µs, it’s perfect for precise object detection, even in challenging environments. Designed for reliability, this sensor is ideal for applications requiring accurate sensing and minimal interference.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor WLA4SP-8416A100A00 | 4m Sensing Range | IP66/IP67 Rated | by SICK
Brand: SICK
SKU: 1139765
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK photoelectric sensor, WLA4SP sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range: 0 m to 4 m, recommended 0 m to 2.6 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Digital outputs: 2 push-pull PNP/NPN, dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Connection: Cable with M12 male connector, 4-pin, 190 mm length
- Housing material: Plastic VISTAL®
- Compliance: Reverse polarity, overcurrent, and short-circuit protected
- Dimensions (H x L x W): 42mm x 19mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 4 meters with recommended range 0 to 2.6 meters
- PinPoint LED visible red light with 635 nm wavelength
- Polarisation filters included to reduce interference
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- LED indicators for alignment aid, operating status, and light beam status
- Push-pull PNP/NPN digital outputs with dark switching mode
- High switching frequency up to 1000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66/IP67 protection rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 1000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Object detection in industrial automation
- Detecting objects wrapped in film
- Use in environments requiring precise sensing up to 4 meters
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact through durability and reliability
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WLA4SP-8416A100A00 photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
