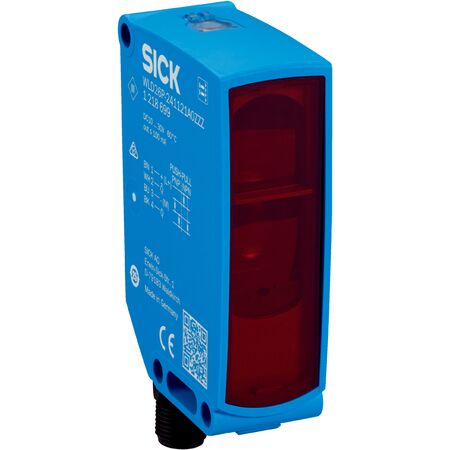

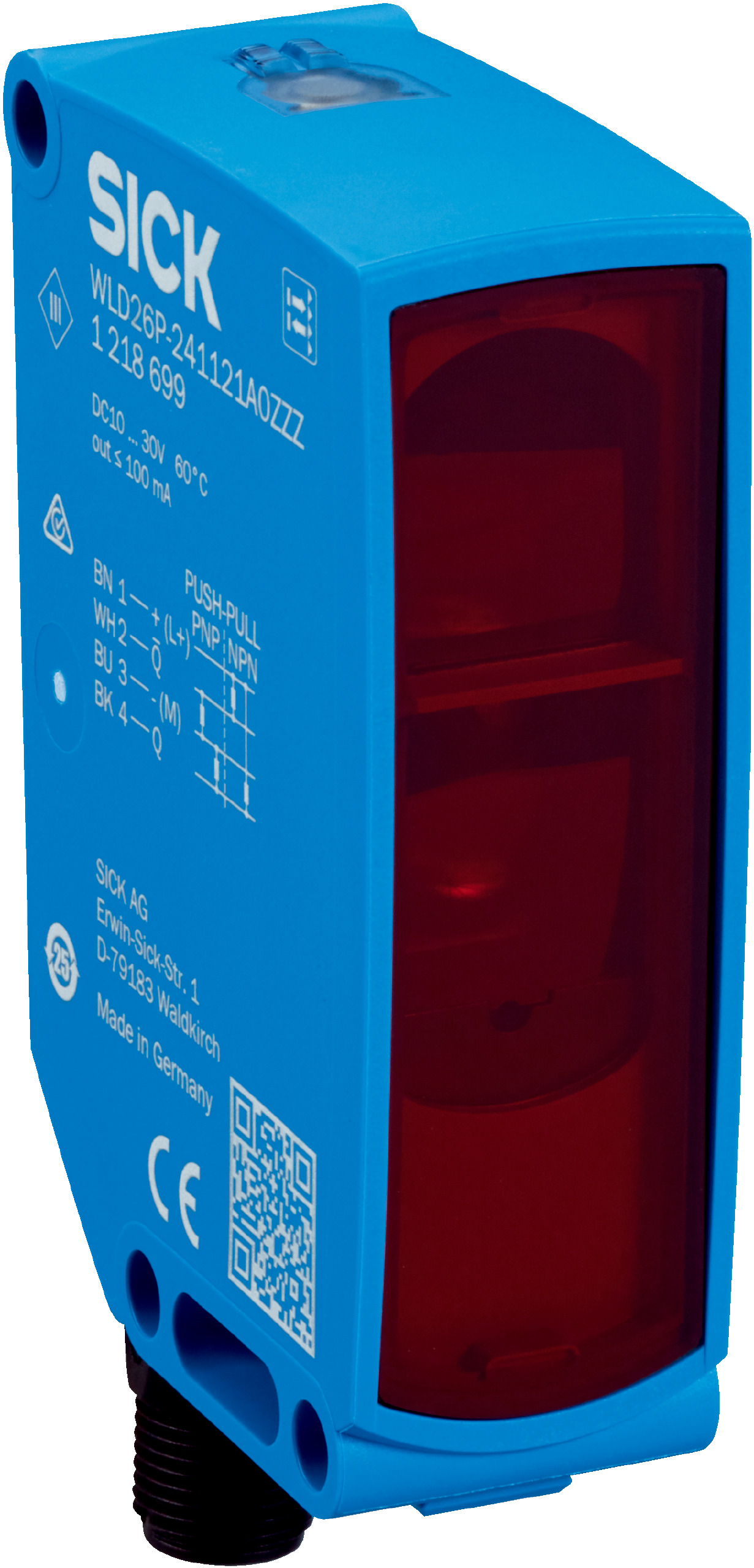

Photoelectric Sensor WLD26P-241122A0ZZZ | 0.25m to 3m Sensing Range | IP66, IP67, IP69 Rated | by SICK
The WLD26P-241122A0ZZZ photoelectric sensor is designed for industrial automation, featuring a sensing range of 0.25m to 3m and a visible red light PinPoint LED. With high protection ratings of IP66, IP67, and IP69, this robust sensor is perfect for safety and presence detection in manufacturing lines, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor WLD26P-241122A0ZZZ | 0.25m to 3m Sensing Range | IP66, IP67, IP69 Rated | by SICK
Brand: SICK
SKU: 1113466
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK WLD26P sensor, Industrial object sensor
Technical Specifications
- Sensing range: 0.25 m to 3 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load
- Digital outputs: 2 complementary push-pull PNP/NPN with light/dark switching
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Housing material: Plastic VISTAL® with PMMA front screen
- Connection: Male M12, 4-pin connector
- Dimensions (H x L x W): 83mm x 53mm x 25mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0.25 m to 3 m with recommended reflector PL80A
- Visible red light PinPoint LED with 635 nm wavelength
- High protection class IP66, IP67, and IP69 rated
- Push-pull PNP/NPN complementary digital outputs with light/dark switching
- Robust plastic VISTAL® housing with PMMA front screen
- LED indicators for power and object detection status
- High shock and vibration resistance
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and secure mounting for optimal sensor performance.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WLD26P-241122A0ZZZ photoelectric sensor is available for immediate purchase, ideal for industrial automation and safety applications.
