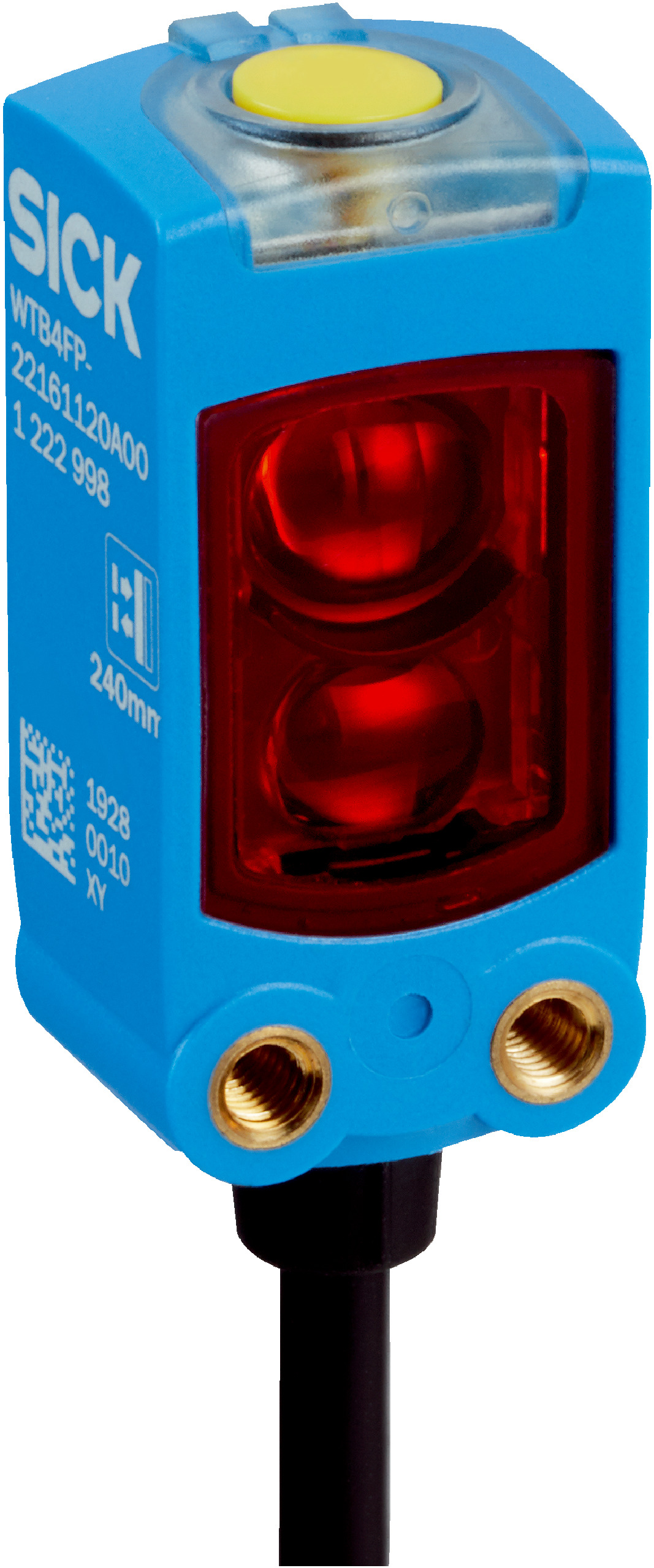

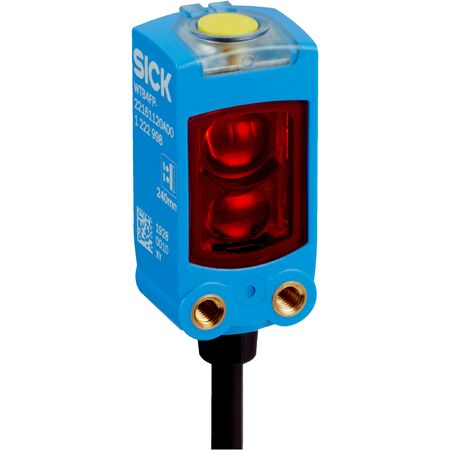

Photoelectric Sensor WLD4FP-1H162130A00 | Dual Lens System | IP66 & IP67 Rated | Fast Response Time | by SICK
The WLD4FP-1H162130A00 photoelectric sensor features a dual lens system for enhanced object detection, with a sensing range of 0 m to 4.5 m and a fast response time of ≤ 500 µs. Ideal for industrial automation and material handling, this sensor is built to withstand harsh environments with an IP66 and IP67 rating, ensuring reliable performance in manufacturing processes and logistics systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor WLD4FP-1H162130A00 | Dual Lens System | IP66 & IP67 Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1113192
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK photoelectric sensor, WLD4FP sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective with dual lens system
- Sensing range: 0 m to 4.5 m; recommended 0.035 m to 3.9 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Switching frequency: up to 1000 Hz
- Response time: ≤ 500 µs
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Cable: 4-wire, 2 m length, PVC
- Housing material: Plastic VISTAL®, front screen PMMA
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0 m to 4.5 m with recommended range 0.035 m to 3.9 m
- PinPoint LED visible red light with 635 nm wavelength
- BluePilot teach-in button for sensitivity adjustment
- IO-Link V1.1 interface for sensor configuration and Smart Task functions
- High switching frequency up to 1000 Hz and fast response time ≤ 500 µs
- IP66 and IP67 rated enclosure for robust protection
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 1000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and configuration, including IO-Link setup for optimal performance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and monitoring in manufacturing processes
- Packaging and logistics systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLD4FP-1H162130A00 photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
