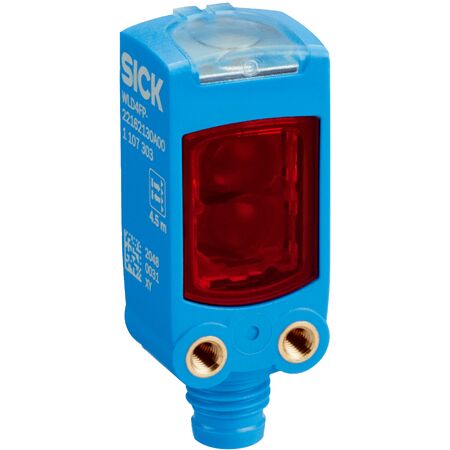

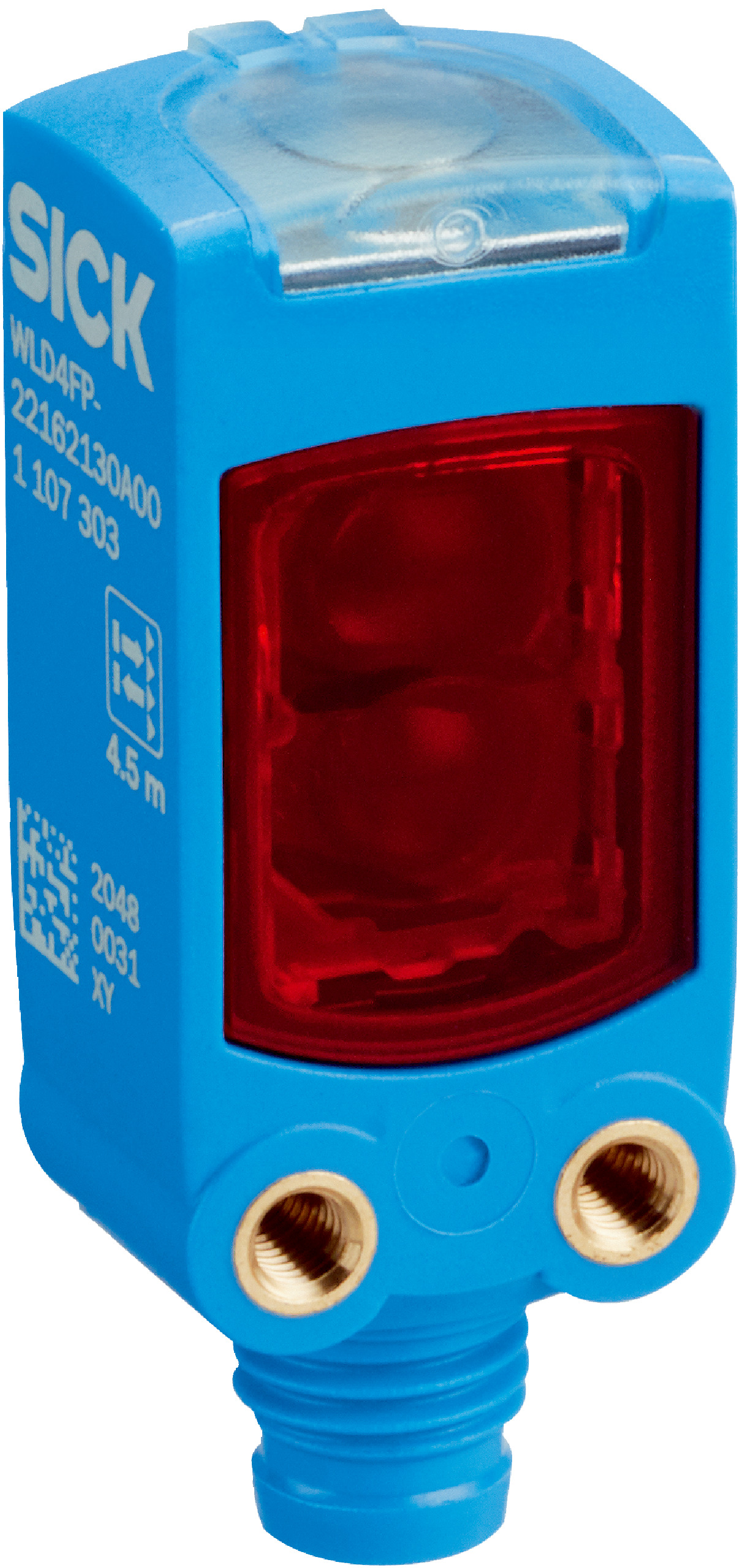

Photoelectric Sensor WLD4FP-22162100A00 | Dual Lens System | IP66 & IP67 Rated | 100,000 Hour LED Life | by SICK
The Photoelectric Sensor WLD4FP-22162100A00 features a dual lens system for enhanced object detection, with a sensing range of 0 m to 4.5 m and a PinPoint LED light source. Ideal for industrial automation and safety applications, this sensor operates efficiently in temperatures from -40°C to +60°C and boasts an impressive LED service life of 100,000 hours, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor WLD4FP-22162100A00 | Dual Lens System | IP66 & IP67 Rated | 100,000 Hour LED Life | by SICK
Brand: SICK
SKU: 1124610
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, IO-Link photoelectric sensor, SICK WLD4FP sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 4.5 m; recommended 0.035 m to 3.9 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED service life: 100,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Response time: ≤ 500 µs; switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40°C to +60°C
- Connection: Male M8, 4-pin connector
- Housing material: Plastic VISTAL®; Front screen: Plastic PMMA
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Communication: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 2.3 ms
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0 m to 4.5 m with recommended range 0.035 m to 3.9 m
- PinPoint LED visible red light with 635 nm wavelength
- High LED service life of 100,000 hours at 25°C
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- IP66 and IP67 rated enclosure for robust protection
- Operating temperature range from -40°C to +60°C
- Shock resistance of 30 g and vibration resistance from 10 Hz to 1000 Hz
- Complementary push-pull digital outputs (PNP/NPN) with light/dark switching
- Reverse polarity, overcurrent, and short-circuit protected outputs
- LED indicators for alignment, power, IO-Link mode, and light beam status
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration, including IO-Link setup.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
- Packaging and logistics systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WLD4FP-22162100A00 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
