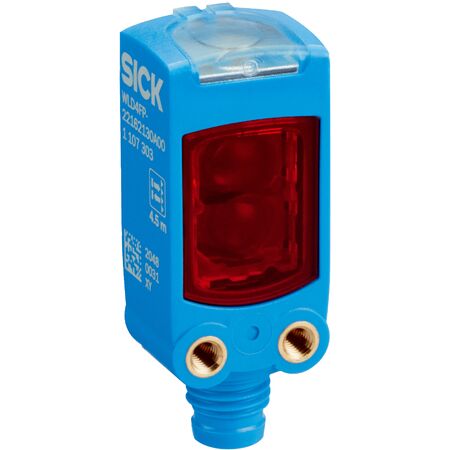

Photoelectric Sensor WLG4FP-22111130ZZZ | ClearSens Dual Lens | IP66 & IP67 Rated | by SICK
The Photoelectric Sensor WLG4FP-22111130ZZZ features a ClearSens dual lens system and a sensing range of 0 mm to 4.5 m, making it ideal for industrial automation and object detection. With a robust IP66 and IP67 enclosure rating, this sensor operates efficiently in harsh environments, ensuring reliable performance in manufacturing process control and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with ClearSens dual lens system
- Sensing range: 0 mm to 4.5 m; recommended 0.035 m to 3.9 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Digital outputs: 2 complementary push-pull PNP/NPN with light/dark switching
- Response time: ≤ 500 µs; switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40°C to +60°C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Connection: Male M8, 4-pin connector
- Housing material: Plastic VISTAL®; Front screen: Plastic PMMA
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with ClearSens dual lens system
- Sensing range from 0 mm to 4.5 m with recommended range 0.035 m to 3.9 m
- PinPoint LED visible red light with 635 nm wavelength
- High LED service life of 100,000 hours at 25°C
- Push-pull PNP/NPN complementary digital outputs with light/dark switching
- IP66 and IP67 rated enclosure for robust protection
- Operating temperature range from -40°C to +60°C
- Shock resistance of 30 g and vibration resistance from 10 Hz to 1000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK WLG4FP-22111130ZZZ sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
