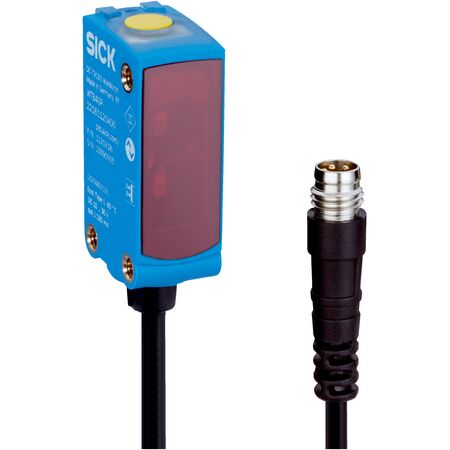

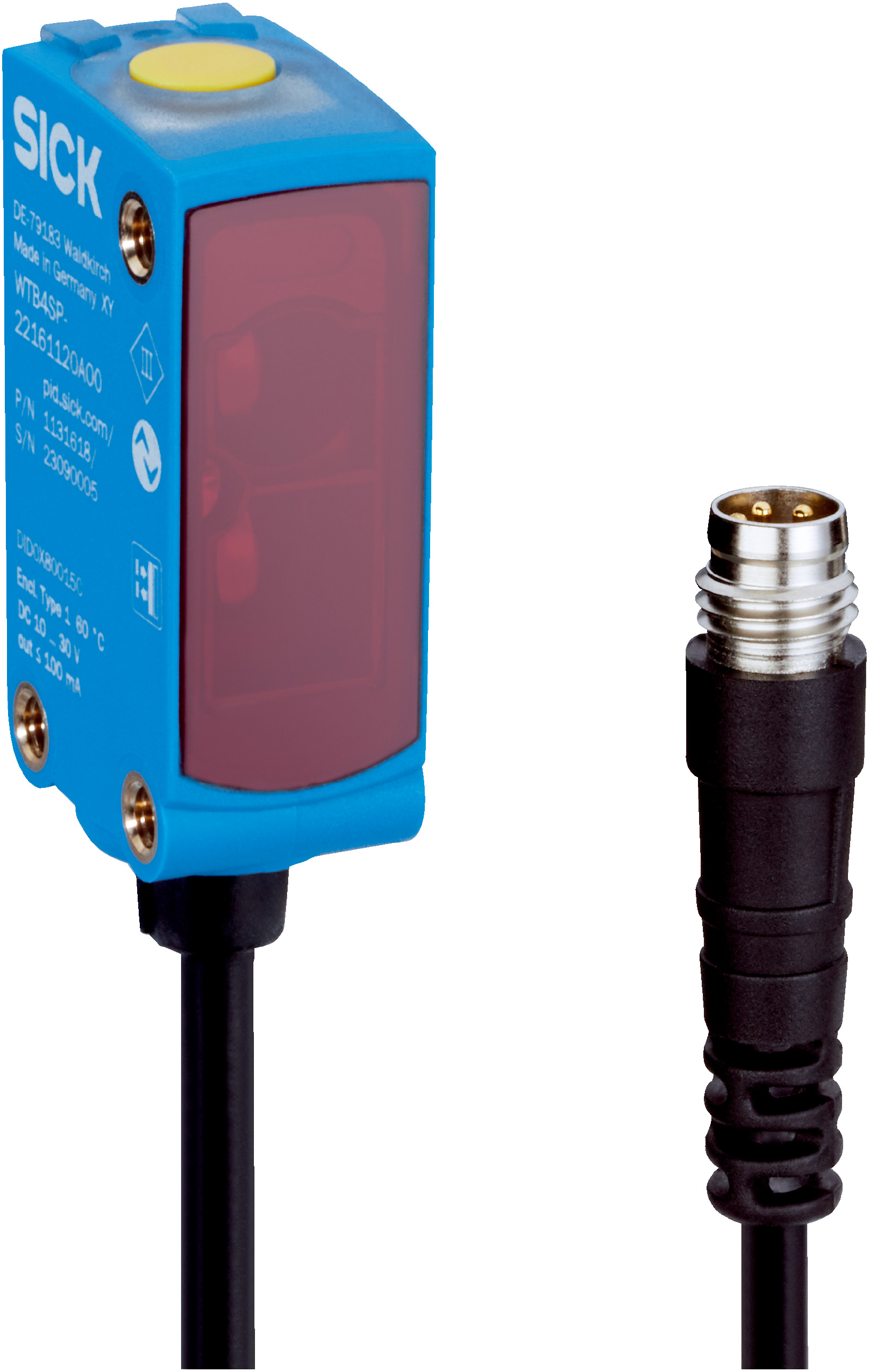

Photoelectric Sensor WLG4SP-32167130A00 | Retro-Reflective | IO-Link Interface | IP66/IP67 Rated | by SICK
The WLG4SP-32167130A00 photoelectric sensor is designed for industrial automation, featuring a sensing range of 0 m to 7.1 m and a PinPoint LED light source with a 635 nm wavelength. Ideal for detecting transparent and wrapped objects, this robust sensor offers high switching frequency and fast response time, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor WLG4SP-32167130A00 | Retro-Reflective | IO-Link Interface | IP66/IP67 Rated | by SICK
Brand: SICK
SKU: 1139761
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, IO-Link sensor, SICK photoelectric sensor, WLG4SP sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Sensing range: 0 m to 7.1 m, recommended 0 m to 5 m
- Digital outputs: 2 push-pull (PNP/NPN), dark switching, max output current 100 mA
- Supply voltage: 10 V DC to 30 V DC, ripple ≤ 5 V pp
- Response time: ≤ 500 µs, switching frequency up to 1,000 Hz
- Protection class: III, circuit protection against reverse polarity, overcurrent, and short-circuit
- Housing: Plastic VISTAL®, front screen PMMA, cable PVC with M8 male connector
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Communication: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 2.3 ms
- Shock resistance: 30 g, 11 ms; vibration resistance: 10 Hz to 1,000 Hz
- LED indicators: BluePilot alignment aid, green operating indicator, yellow light beam status
- Dimensions (H x L x W): 42mm x 19mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with ClearSens and MultiMode
- Sensing range from 0 m to 7.1 m, optimal 0 m to 5 m
- PinPoint LED visible red light with 635 nm wavelength
- BluePilot teach-in button for sensitivity adjustment
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- Dual push-pull digital outputs (PNP/NPN) with dark switching
- High switching frequency up to 1,000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66/IP67 protection
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 1,000 Hz
- Status LEDs for alignment, operation, and received light beam status
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment, wiring, and configuration via IO-Link for optimal sensor performance.
Applications
- Industrial automation for object detection
- Detecting objects wrapped in film
- Detecting transparent objects
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Compliant with environmental regulations including China RoHS
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLG4SP-32167130A00 photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
