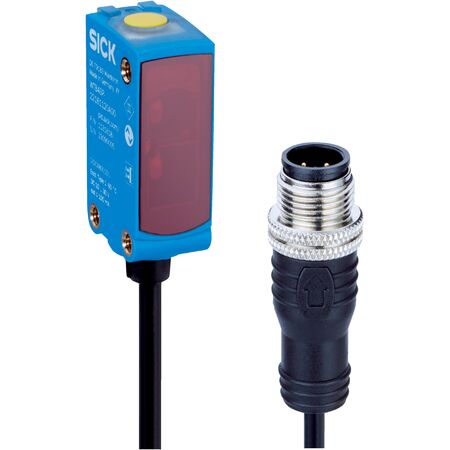

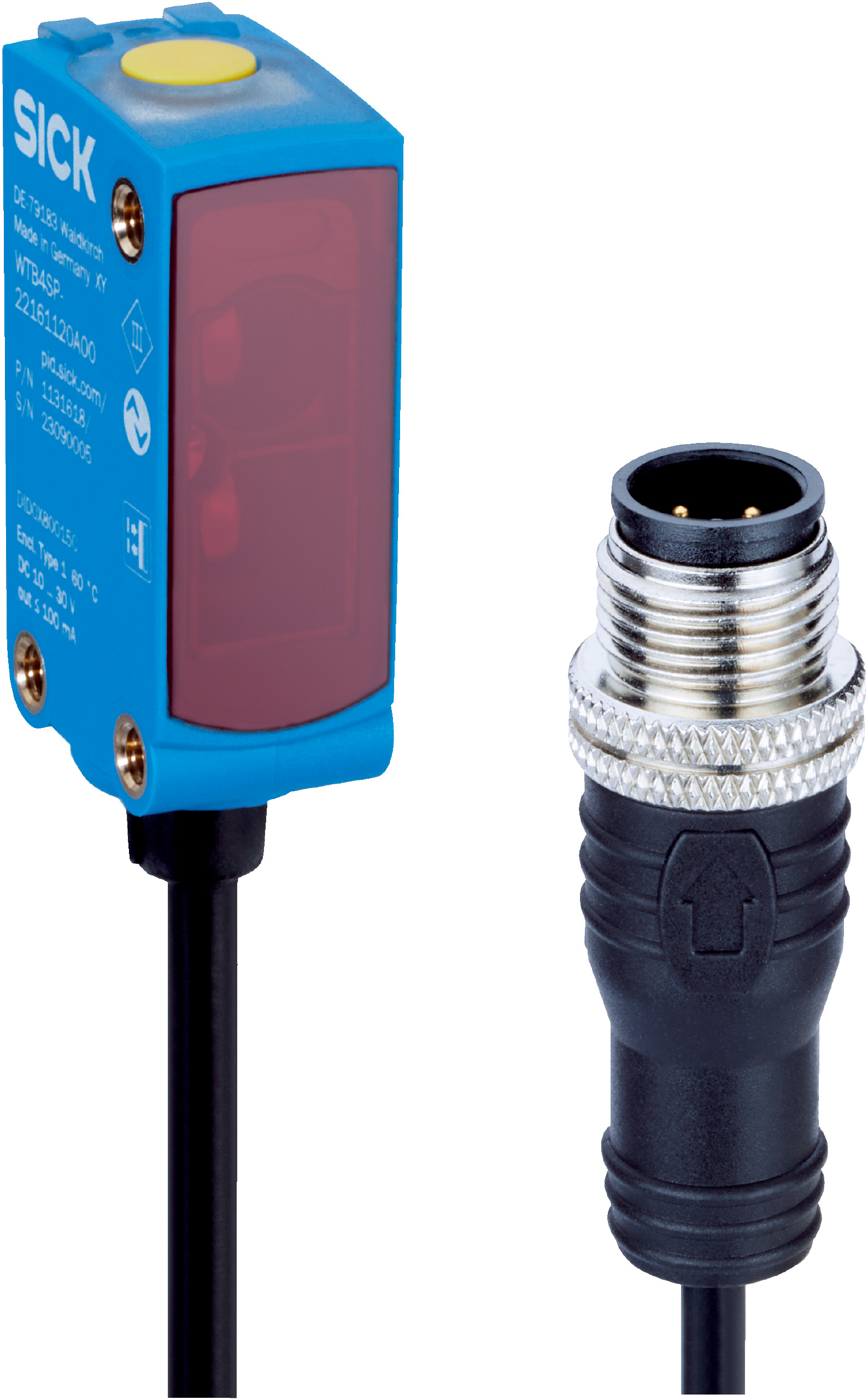

Photoelectric Sensor WLG4SP-8416K130A00 | Retro-Reflective | IP66/IP67 Rated | 0-7.1m Sensing Range | by SICK
The WLG4SP-8416K130A00 photoelectric sensor is designed for precise object detection in industrial automation, featuring a sensing range of 0 to 7.1 meters and a robust IP66/IP67 rated housing. With a PinPoint LED light source and dual push-pull digital outputs, it ensures reliable performance in various applications, including packaging and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor WLG4SP-8416K130A00 | Retro-Reflective | IP66/IP67 Rated | 0-7.1m Sensing Range | by SICK
Brand: SICK
SKU: 1139764
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK photoelectric sensor, IO-Link sensor, Object detection sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Sensing range: 0 m to 7.1 m, recommended 0 m to 5 m
- Digital outputs: 2 push-pull (PNP/NPN), light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Connection: Cable with M12 male connector, 4-pin, 190 mm length
- Housing material: Plastic VISTAL®
- EMC standard: EN 60947-5-2
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz
- Dimensions (H x L x W): 42mm x 19mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with ClearSens and MultiMode
- Sensing range from 0 m to 7.1 m, optimal performance between 0 m and 5 m
- PinPoint LED visible red light with 635 nm wavelength
- BluePilot teach-in button for sensitivity adjustment
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- Dual push-pull digital outputs (PNP/NPN) with light/dark switching
- High switching frequency up to 1,000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66/IP67 protection rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 1,000 Hz
- Status LEDs for alignment, operation, and light beam status indication
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Detecting objects wrapped in film
- Detecting transparent objects
- Industrial automation and object detection
- Packaging and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Compliant with environmental regulations including China RoHS
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLG4SP-8416K130A00 photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
