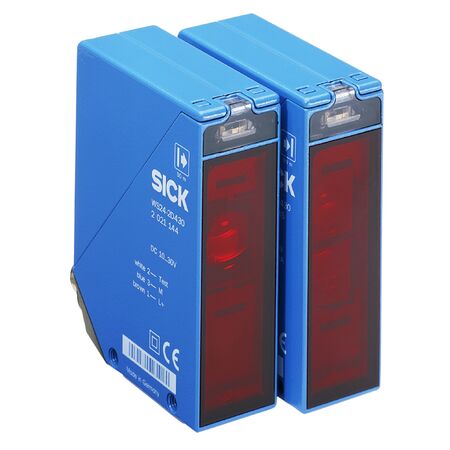

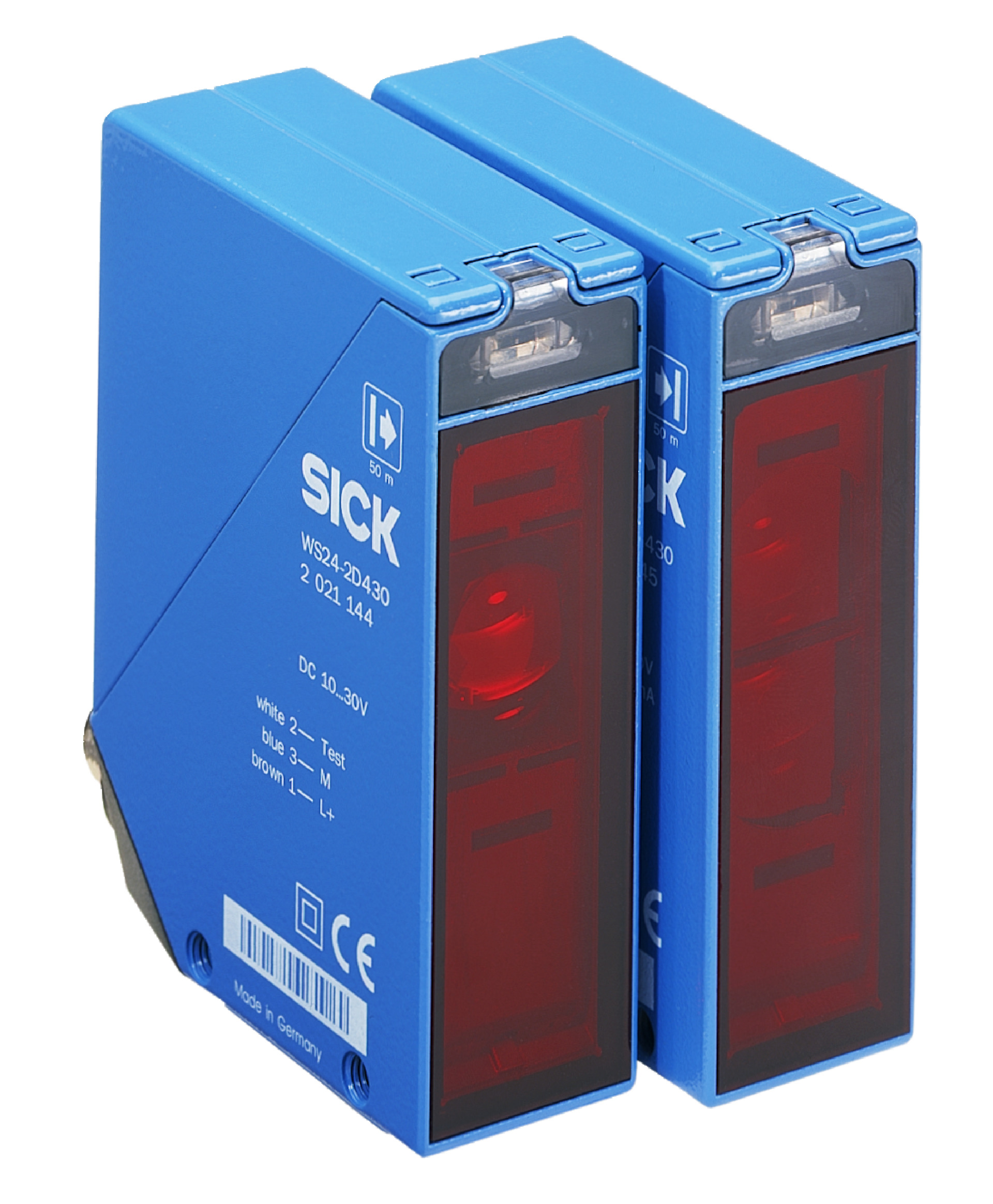

Photoelectric Sensor WS/WE24-2B240 | IP67 Rated | Through-Beam Sensing | Adjustable Delay | by SICK
The WS/WE24-2B240 photoelectric sensor features a robust through-beam sensing principle, ideal for industrial automation and safety monitoring. With an IP67 rating for dust and water protection, it operates efficiently in temperatures from -40 °C to +60 °C. This sensor offers selectable switching modes and adjustable delay times, making it perfect for material handling and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor WS/WE24-2B240 | IP67 Rated | Through-Beam Sensing | Adjustable Delay | by SICK
Brand: SICK
SKU: 1017862
Alternatively Known As: Through-beam photoelectric sensor, Optical sensor WS/WE24-2B240, Industrial photoelectric sensor, SICK photoelectric sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption sender: 50 mA
- Power consumption receiver: 50 mA
- Switching output: NPN, PNP selectable
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Angle of reception: Approx. 2.5°
- Time functions: Switch-on delay and off delay
- Delay time adjustable: 0.5 s to 10 s
- Connection type: Terminal connection with M16 gland
- Circuit protection: Types A, C, D
- Protection class: II
- Housing material: Metal, zinc diecast
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Front screen heating included
- Dimensions (H x L x W): 87.5mm x 65mm x 27mm
- Weight: 0.66 kg
Key Features
- Through-beam photoelectric sensing principle
- Rectangular metal zinc diecast housing
- Visible red LED light source with approx. 1° focus
- Sensing range up to 50 m, max 60 m
- Selectable switching mode: light/dark and PNP/NPN
- Switching frequency up to 1000 Hz
- Adjustable delay time from 0.5 s to 10 s
- IP67 rated enclosure for dust and water protection
- Front screen heating for reliable operation in cold environments
- Wide ambient operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
- Packaging and assembly line control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WS/WE24-2B240 photoelectric sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
