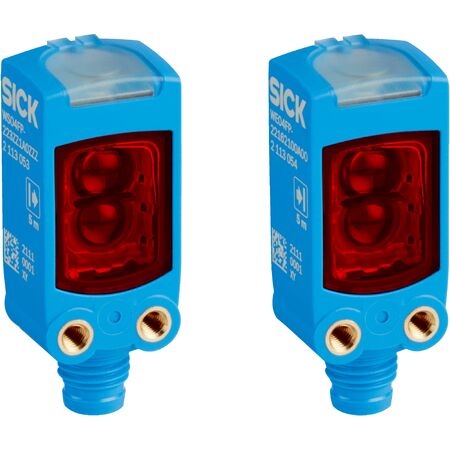

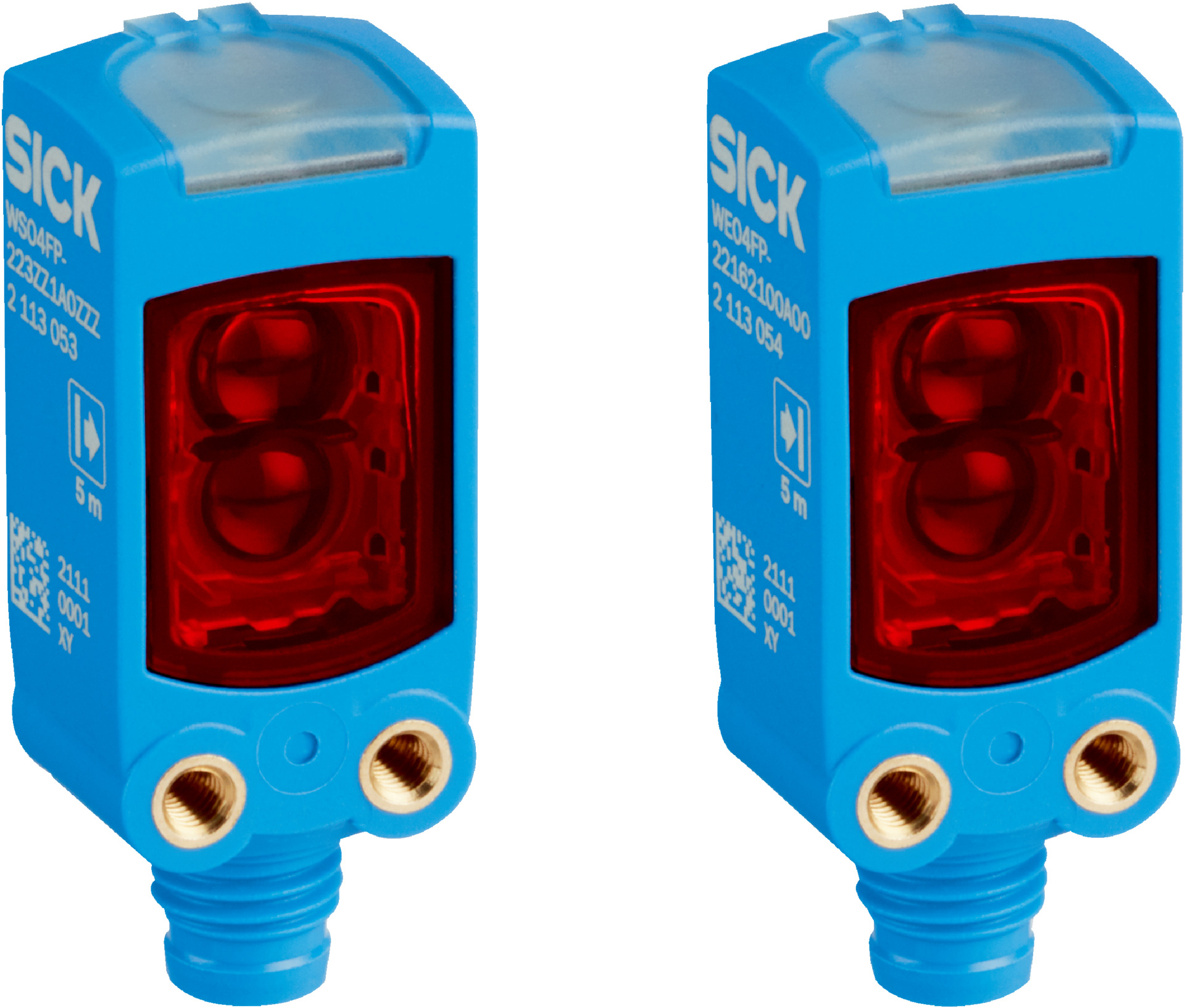

Photoelectric Sensor WSE4FP-21A12600ZZZ | Through-Beam Sensing | IP66/IP67 Rated | 2m Sensing Range | by SICK
The WSE4FP-21A12600ZZZ photoelectric sensor features a through-beam sensing principle with a sensing range of up to 2 meters, making it ideal for industrial automation and manufacturing process control. With a robust IP66/IP67 rated housing and a short response time of ≤ 500 µs, this sensor ensures reliable object detection and safety monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor WSE4FP-21A12600ZZZ | Through-Beam Sensing | IP66/IP67 Rated | 2m Sensing Range | by SICK
Brand: SICK
SKU: 1149743
Alternatively Known As: Through-beam photoelectric sensor, SICK photoelectric sensor, WSE4FP sensor, industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load at 24 V
- Output type: 1 PNP digital output, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature range: -40 °C to +60 °C
- Storage temperature range: -40 °C to +75 °C
- Material: Plastic VISTAL® housing, PMMA front screen
- Connection: M8, 3-pin connector
- LED wavelength: 635 nm
- Average LED service life: 100,000 hours at 25 °C
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 2 meters with recommended best performance at 1.5 meters
- PinPoint LED light source with visible red light at 635 nm wavelength
- LED indicators for alignment aid, power status, and object detection
- Robust plastic VISTAL® housing with IP66/IP67 protection rating
- High shock resistance (30 g) and vibration resistance (10 Hz to 1,000 Hz)
- Short response time of ≤ 500 µs and switching frequency up to 1,000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper alignment and secure connection.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WSE4FP-21A12600ZZZ photoelectric sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
