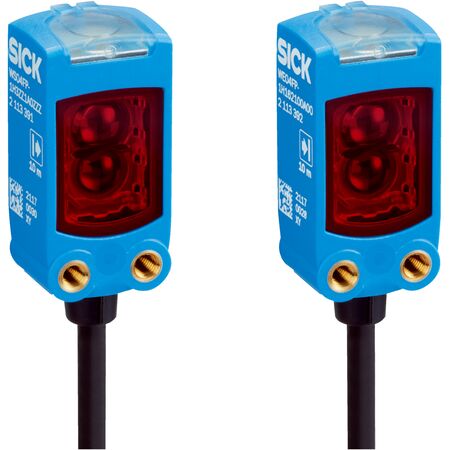

Photoelectric Sensor WSE4FP-6G312100ZZZ | Through-Beam Sensing | IP66 & IP67 Rated | by SICK
The WSE4FP-6G312100ZZZ photoelectric sensor features a through-beam sensing principle with a sensing range of up to 10 meters, making it ideal for industrial automation and object detection. With IP66 and IP67 ratings for dust and water protection, this sensor is built for durability and reliability in harsh environments, ensuring optimal performance in material handling and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor WSE4FP-6G312100ZZZ | Through-Beam Sensing | IP66 & IP67 Rated | by SICK
Brand: SICK
SKU: 1123899
Alternatively Known As: Through-beam photoelectric sensor, SICK photoelectric sensor, WSE4FP sensor, industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40°C to +60°C
- Cable: 3-wire, 5 m length, PVC insulated
- Housing material: Plastic VISTAL®
- Front screen material: Plastic PMMA
- LED indicators: Blue (alignment aid), Green (power on), Yellow (object detection status)
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 10 meters with recommended range 7.5 meters
- PinPoint LED visible red light with 635 nm wavelength
- High LED service life of 100,000 hours at 25°C
- IP66 and IP67 rated for dust and water protection
- Shock resistance up to 30 g and vibration resistance from 10 Hz to 1000 Hz
- Push-pull PNP/NPN digital output with light switching mode
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WSE4FP-6G312100ZZZ photoelectric sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
