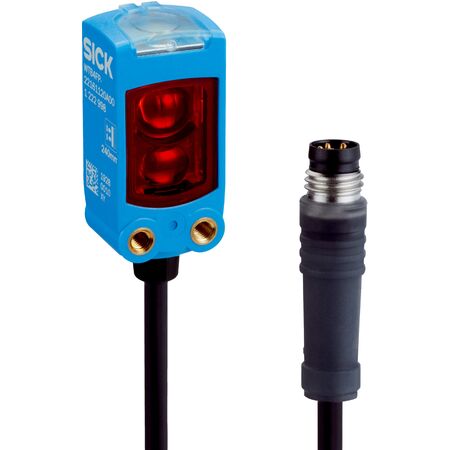

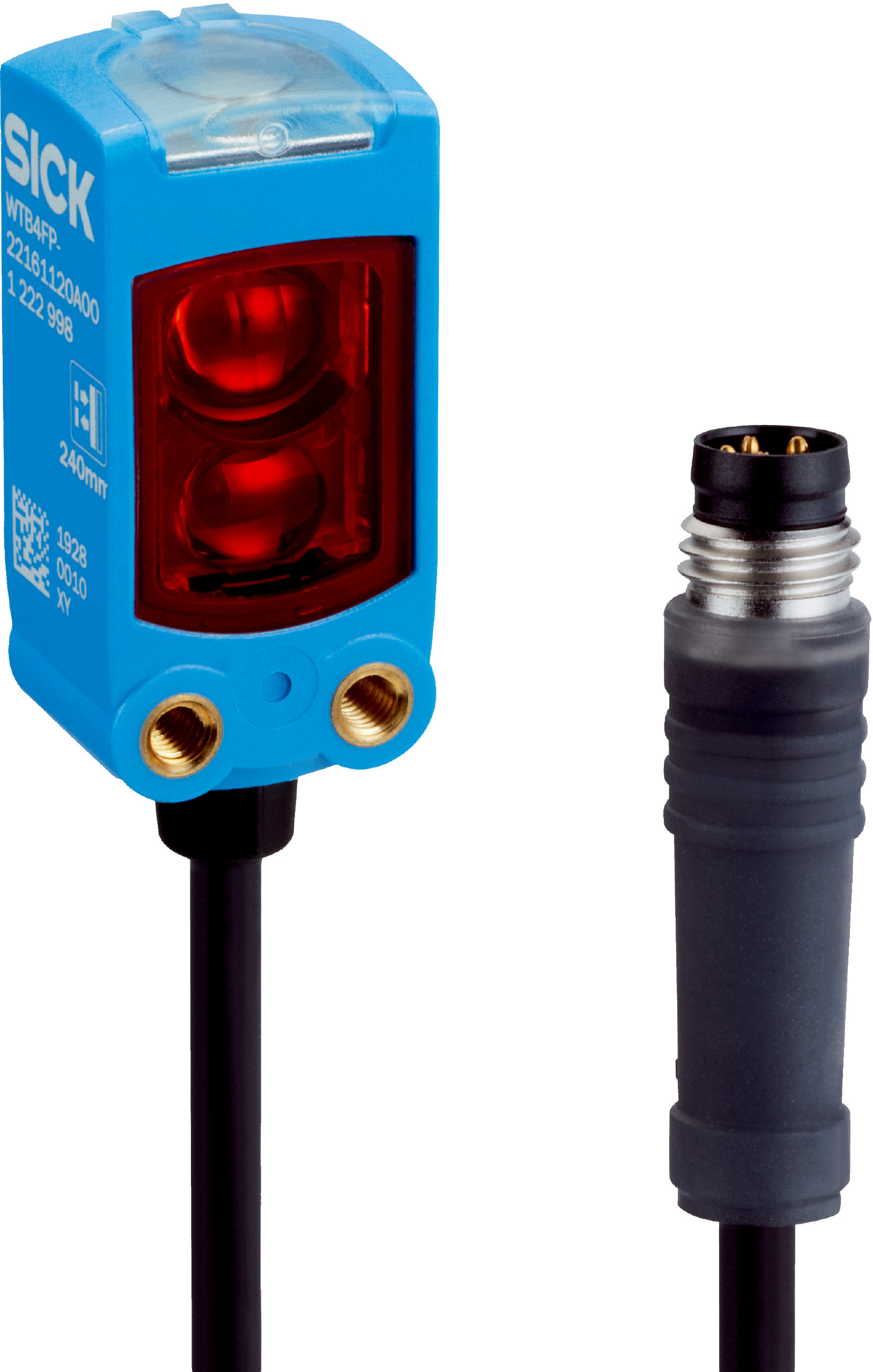

Photoelectric Sensor WTB4FP-313111A0ZZZ | Background Suppression | IP66/IP67 Rated | by SICK
The WTB4FP-313111A0ZZZ photoelectric sensor excels in industrial automation with its background suppression feature and a sensing range of 4 mm to 47 mm. Designed for reliable object detection, it operates efficiently in temperatures from -40 °C to +60 °C, making it perfect for manufacturing and packaging applications. With a robust IP66/IP67 rated housing, this sensor ensures durability and longevity in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor WTB4FP-313111A0ZZZ | Background Suppression | IP66/IP67 Rated | by SICK
Brand: SICK
SKU: 1126171
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, SICK photoelectric sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 4 mm to 47 mm
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Light spot size: Ø 4.2 mm at 130 mm distance
- LED indicators: Green for power on, Yellow for object detection
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA without load at 24 V
- Output type: Push-pull PNP/NPN, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Plastic VISTAL®
- Connection: Cable with M8 3-pin connector, 110 mm length
- Operating temperature: -40 °C to +60 °C
- Enclosure rating: IP66 and IP67
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 4 mm to 47 mm
- PinPoint LED light source with visible red light at 635 nm wavelength
- Point-shaped light spot with 4.2 mm diameter at 130 mm distance
- LED indicators for power and object detection status
- High switching frequency up to 1,000 Hz
- Robust plastic VISTAL® housing with IP66/IP67 protection
- Operating temperature range from -40 °C to +60 °C
- Short response time of ≤ 500 µs and repeatability of 150 µs
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 25 mA)
- Durable IP66/IP67 rated housing protects against dust and water, extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB4FP-313111A0ZZZ photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
