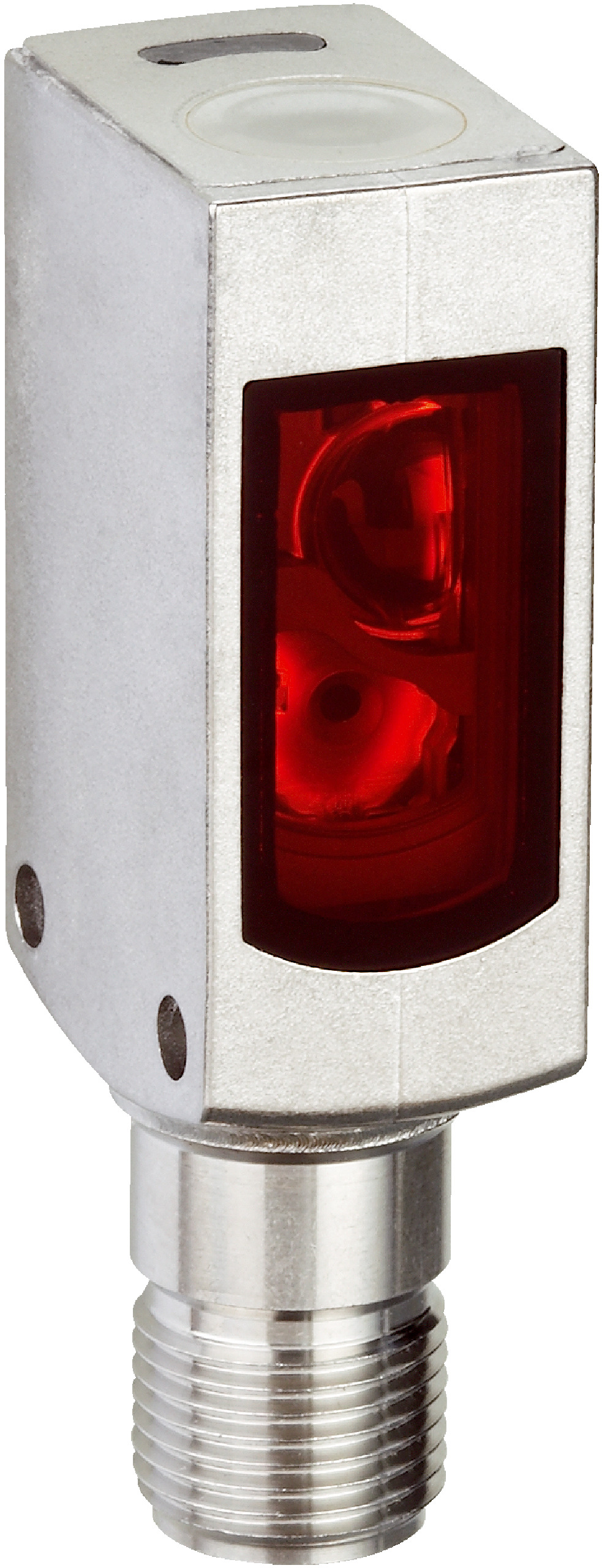

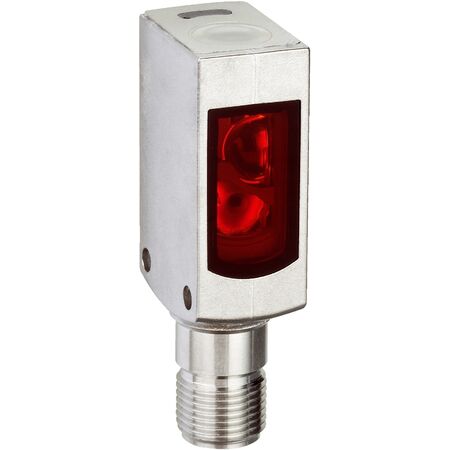

Photoelectric Sensor WTB4S-3P3162V | Background Suppression | IP66 to IP69K | Fast Response Time | by SICK
The WTB4S-3P3162V Photoelectric Sensor is designed for industrial automation, featuring background suppression and a sensing range from 4 mm to 500 mm. With a fast response time under 0.5 ms and a robust IP66 to IP69K protection rating, it's perfect for hygienic and washdown applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor WTB4S-3P3162V | Background Suppression | IP66 to IP69K | Fast Response Time | by SICK
Brand: SICK
SKU: 1046387
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, Industrial photo sensor, SICK photo sensor, Washdown photoelectric sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range max.: 4 mm to 500 mm
- Sensing range typical: 10 mm to 350 mm
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 6.5 mm at 150 mm distance
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP, light switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Cable material: Plastic, PVC
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 4 mm to 500 mm
- PinPoint LED visible red light with 650 nm wavelength
- Single teach-in button for easy adjustment
- Slim stainless steel V4A (1.4404, 316L) housing design
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time under 0.5 ms and switching frequency up to 1,000 Hz
- Cable with M8, 3-pin connector and 150 mm cable length
- Certified for hygienic and washdown applications
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Precision sensing in manufacturing and processing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- High ingress protection extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4S-3P3162V Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
