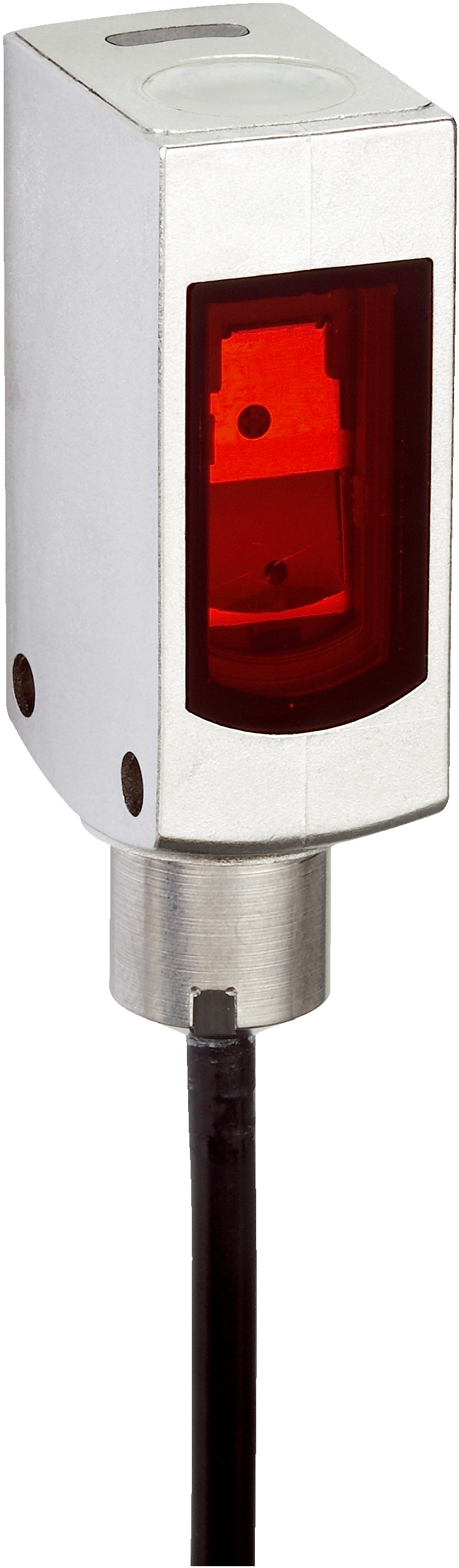

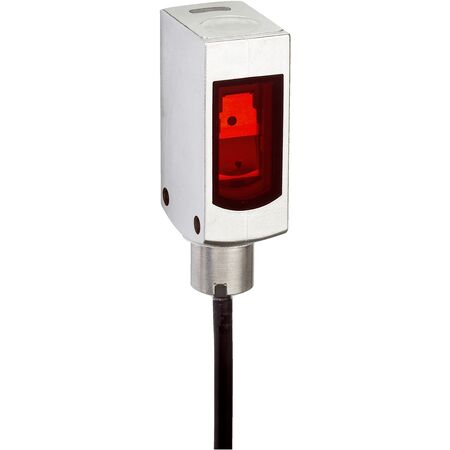

Photoelectric Sensor WTB4SL-3N1162V | Background Suppression | IP66 to IP69K | 650nm Laser | by SICK
The WTB4SL-3N1162V Photoelectric Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 25 mm to 300 mm and a visible red laser light source at 650 nm. With a robust stainless steel housing and high protection ratings (IP66 to IP69K), it's perfect for hygienic and washdown environments, ensuring reliable performance even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor WTB4SL-3N1162V | Background Suppression | IP66 to IP69K | 650nm Laser | by SICK
Brand: SICK
SKU: 1058257
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, Laser photoelectric sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 25 mm to 300 mm
- Light source: Visible red laser, 650 nm wavelength
- Laser class: 1
- Adjustment: Single teach-in button
- Housing: Metal, Stainless steel V4A (1.4404, 316L)
- Protection rating: IP66, IP67, IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: NPN digital output, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m length
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 55.4mm x 22.2mm x 15.3mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 25 mm to 300 mm
- Visible red laser light source with 650 nm wavelength
- Laser class 1 safety
- Single teach-in button for easy adjustment
- Slim stainless steel V4A housing suitable for washdown environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time ≤ 0.5 ms and switching frequency up to 1000 Hz
- NPN digital output with light/dark switching mode
- Cable connection with 2 m length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Detection of small objects in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient laser light source minimizes power consumption
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4SL-3N1162V Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
