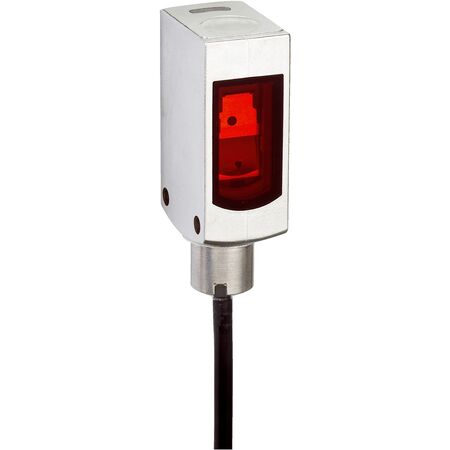

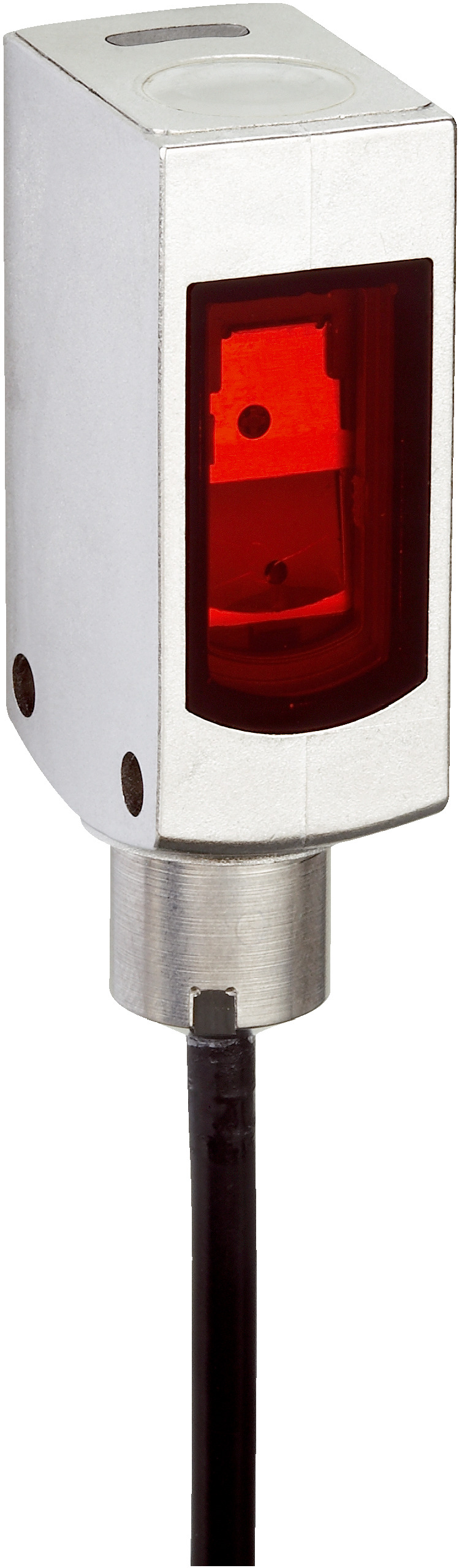

Photoelectric Sensor WTB4SL-3P3462V | Background Suppression | Laser Light Source | IP66 to IP69K Rated | by SICK
The WTB4SL-3P3462V Photoelectric Sensor is designed for industrial automation, featuring a sensing range of 25 mm to 300 mm and a visible red laser light source. With a robust stainless steel housing and high protection ratings (IP66 to IP69K), it's perfect for hygienic and washdown environments, ensuring reliable object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor WTB4SL-3P3462V | Background Suppression | Laser Light Source | IP66 to IP69K Rated | by SICK
Brand: SICK
SKU: 1058255
Alternatively Known As: Photoelectric sensor, Proximity sensor, Background suppression sensor, Laser proximity sensor, Industrial photo sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 25 mm to 300 mm
- Light source: Laser, visible red light, 650 nm wavelength
- Laser class: 1
- Adjustment: Single teach-in button
- Housing: Metal, Stainless steel V4A (1.4404, 316L)
- Connection: Cable with M12 male connector, 4-pin
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP digital output, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -10 °C to +50 °C (extended -30 °C to +55 °C)
- Storage temperature: -30 °C to +70 °C
- Dimensions (H x L x W): 55.4mm x 22.2mm x 15.3mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 25 mm to 300 mm
- Visible red laser light source with 650 nm wavelength
- Laser class 1 safety
- Single teach-in button for easy adjustment
- Slim stainless steel V4A housing suitable for washdown environments
- High protection rating: IP66, IP67, IP68, IP69K
- Fast response time ≤ 0.5 ms and switching frequency up to 1,000 Hz
- Complementary PNP digital output with light/dark switching mode
- Cable with M12 male connector, 4-pin
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Detection of small objects in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 61010 for electrical equipment safety
- Complies with AS/NZS 4801 Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient laser light source minimizes power consumption
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB4SL-3P3462V Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
