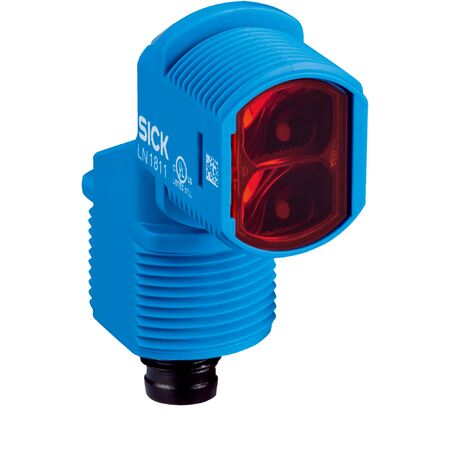

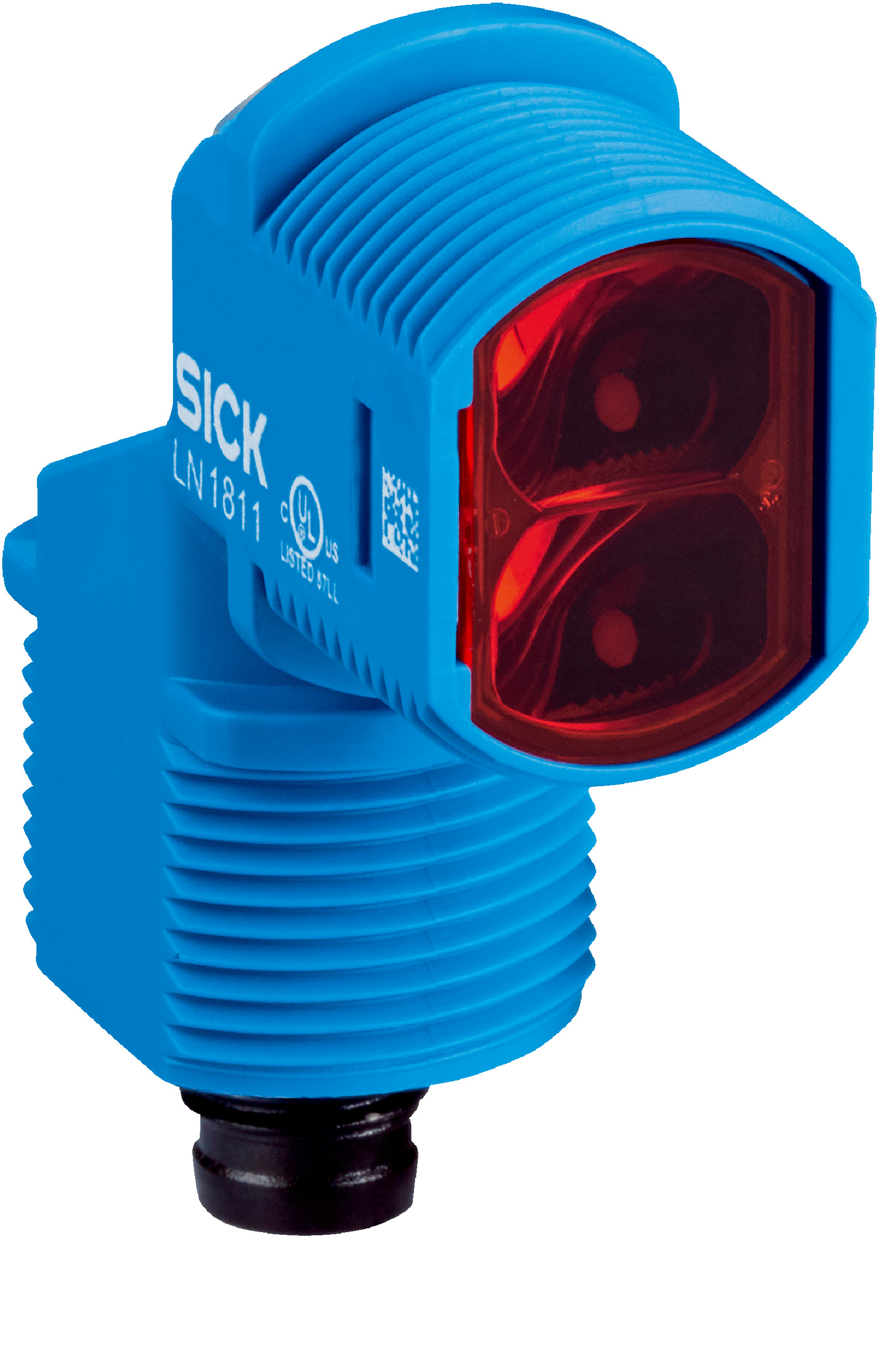

Photoelectric Sensor ZLD18-4FZ3A8 | Dual Lens System | IP67 Rated | 4.2m Sensing Range | by SICK
The ZLD18-4FZ3A8 Photoelectric Sensor is designed for industrial automation, featuring a dual lens system for precise object detection up to 4.2 meters. With a fast response time of ≤ 500 µs and an IP67 rated enclosure, it ensures reliable performance in challenging environments. Ideal for manufacturing process control and safety monitoring, this sensor is built to enhance efficiency and reduce false triggering.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor ZLD18-4FZ3A8 | Dual Lens System | IP67 Rated | 4.2m Sensing Range | by SICK
Brand: SICK
SKU: 1100623
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Industrial photo sensor, SICK ZLD18 sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 4.2 m
- Light source: Visible red LED, 625 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: Male M8, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Weight: 4.54 g
- Dimensions (H x L x W): 40.8mm x 33.3mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 625 nm
- Sensing range up to 4.2 meters
- Hybrid housing design with M18 thread diameter
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +55°C
- Fast response time of ≤ 500 µs and switching frequency of 1,000 kHz
- PNP dark switching output with maximum output current of 100 mA
- Polarizing filter included to reduce false triggering
- Connection via male M8 4-pin connector
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Supports sustainable industrial automation by improving process efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-4FZ3A8 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
