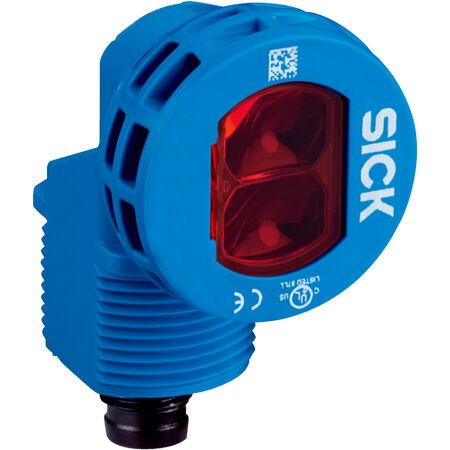

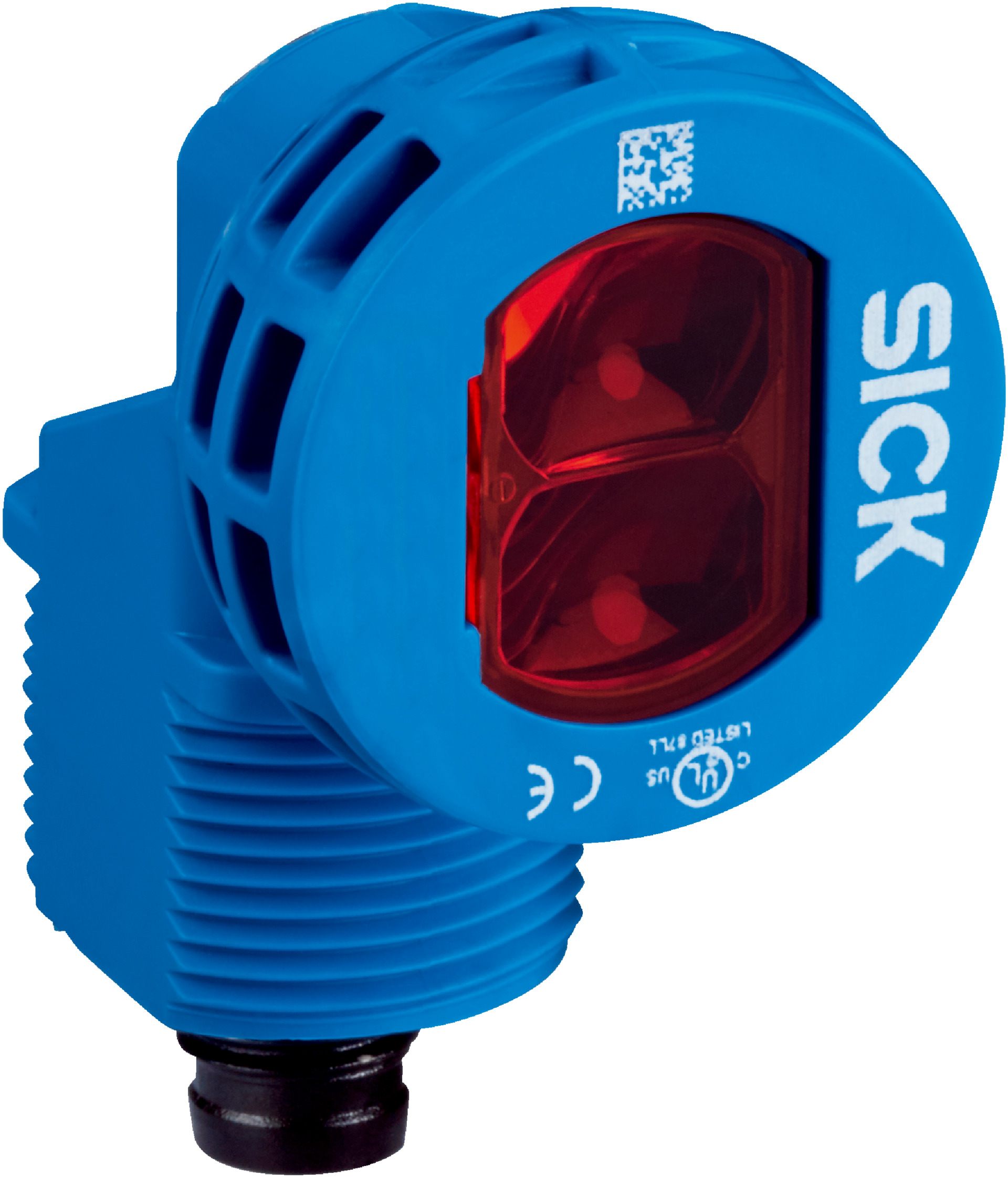

Photoelectric Sensor ZLD18-5PZ3A8 | IP67 Rated | Fast Response Time | PNP Output | by SICK
The ZLD18-5PZ3A8 Photoelectric Sensor is designed for industrial automation, featuring a fast response time of ≤ 500 µs and an IP67 rated enclosure for dust and water protection. With a sensing range of up to 4.2 meters and a visible red LED light source, it's perfect for safety and presence detection in manufacturing lines and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor ZLD18-5PZ3A8 | IP67 Rated | Fast Response Time | PNP Output | by SICK
Brand: SICK
SKU: 1089834
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, Proximity sensor, SICK ZLD18 sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, light switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Light spot size: Ø 125 mm at 1,000 mm distance
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Connection type: Male M8, 4-pin connector
- Dimensions (H x L x W): 42.6mm x 33.3mm x 24mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 625 nm wavelength
- Sensing range up to 4.2 meters
- Hybrid housing design in blue color
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +55°C
- Fast response time of ≤ 500 µs and switching frequency of 1,000 kHz
- PNP light switching output with max output current of 100 mA
- Polarizing filter included to reduce false triggering
- Connection via male M8 4-pin connector
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and secure electrical connections.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-5PZ3A8 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
