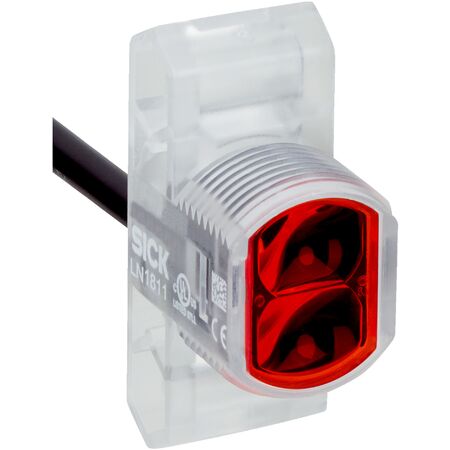

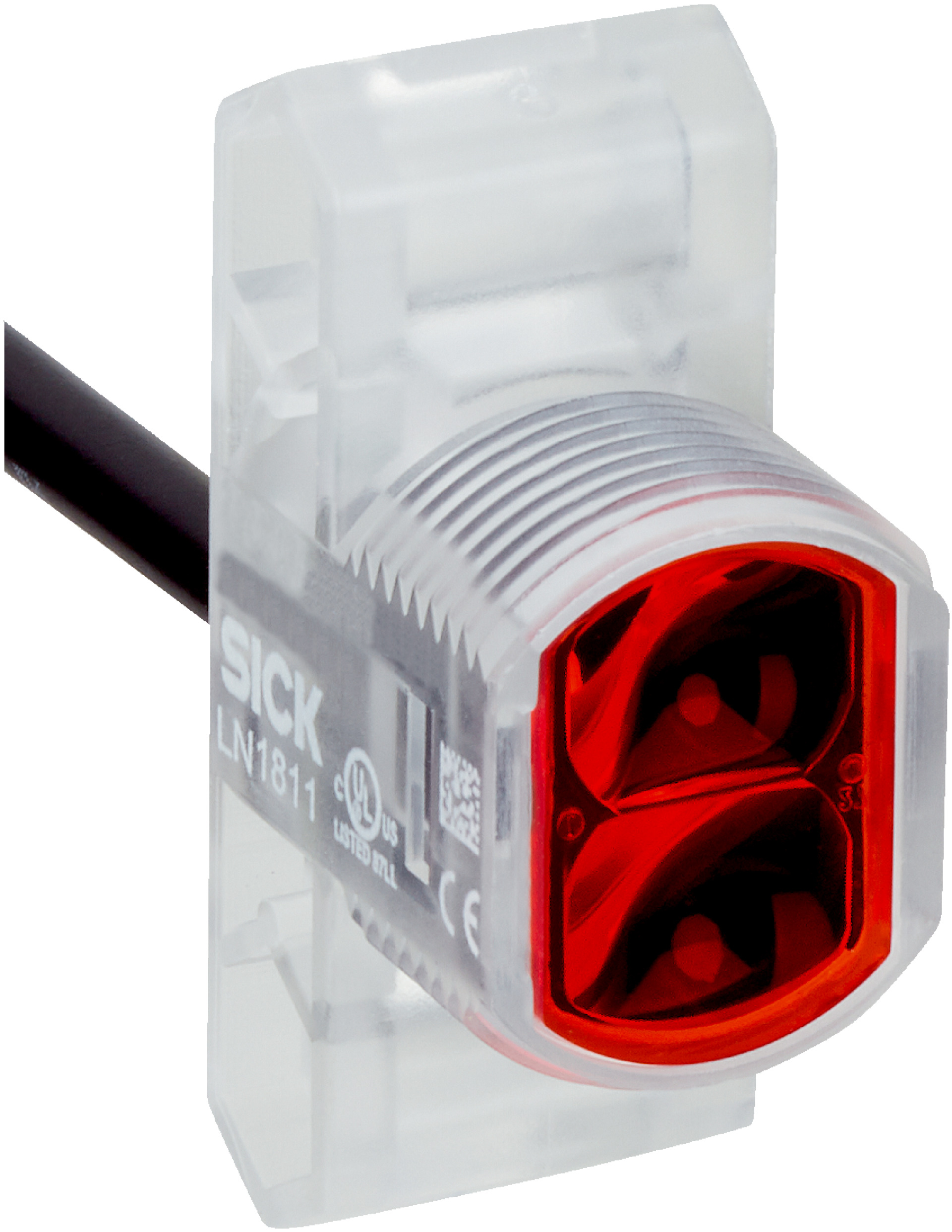

Photoelectric Sensor ZLD18-AFZ1G8 | Retro-Reflective | IP67 Rated | Dual Lens System | by SICK
The ZLD18-AFZ1G8 Photoelectric Sensor is designed for industrial automation, featuring a dual lens system for enhanced object detection and a maximum sensing range of 5 meters. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Sensor ZLD18-AFZ1G8 | Retro-Reflective | IP67 Rated | Dual Lens System | by SICK
Brand: SICK
SKU: 1096983
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, Proximity sensor, Industrial sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 to 4.2 meters (max 5 meters)
- Light source: Visible red LED, 625 nm wavelength
- Housing: Plastic ABS with transparent color, M18 thread diameter
- Supply voltage: 10 V DC to 30 V DC with <10% ripple
- Current consumption: ≤ 15 mA
- Switching output: PNP, dark switching mode
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: 4-wire cable, 2,000 mm length, PVC insulation
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Weight: 3.63 g
- Dimensions (H x L x W): 35mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 625 nm wavelength
- Maximum sensing range up to 5 meters
- M18 threaded housing with hybrid light emission design
- IP67 rated enclosure for dust and water protection
- Dark switching PNP output with up to 100 mA output current
- Fast response time of ≤ 500 µs and switching frequency of 1,000 kHz
- Operating temperature range from -40°C to +55°C
- Cable open end, 4-wire, 2,000 mm length with PVC insulation
- Polarizing filter and special device features included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product lifespan
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-AFZ1G8 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
