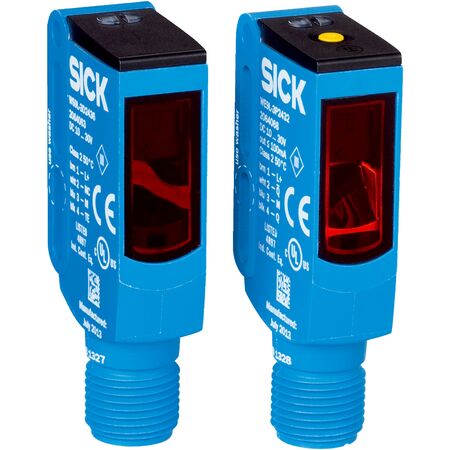

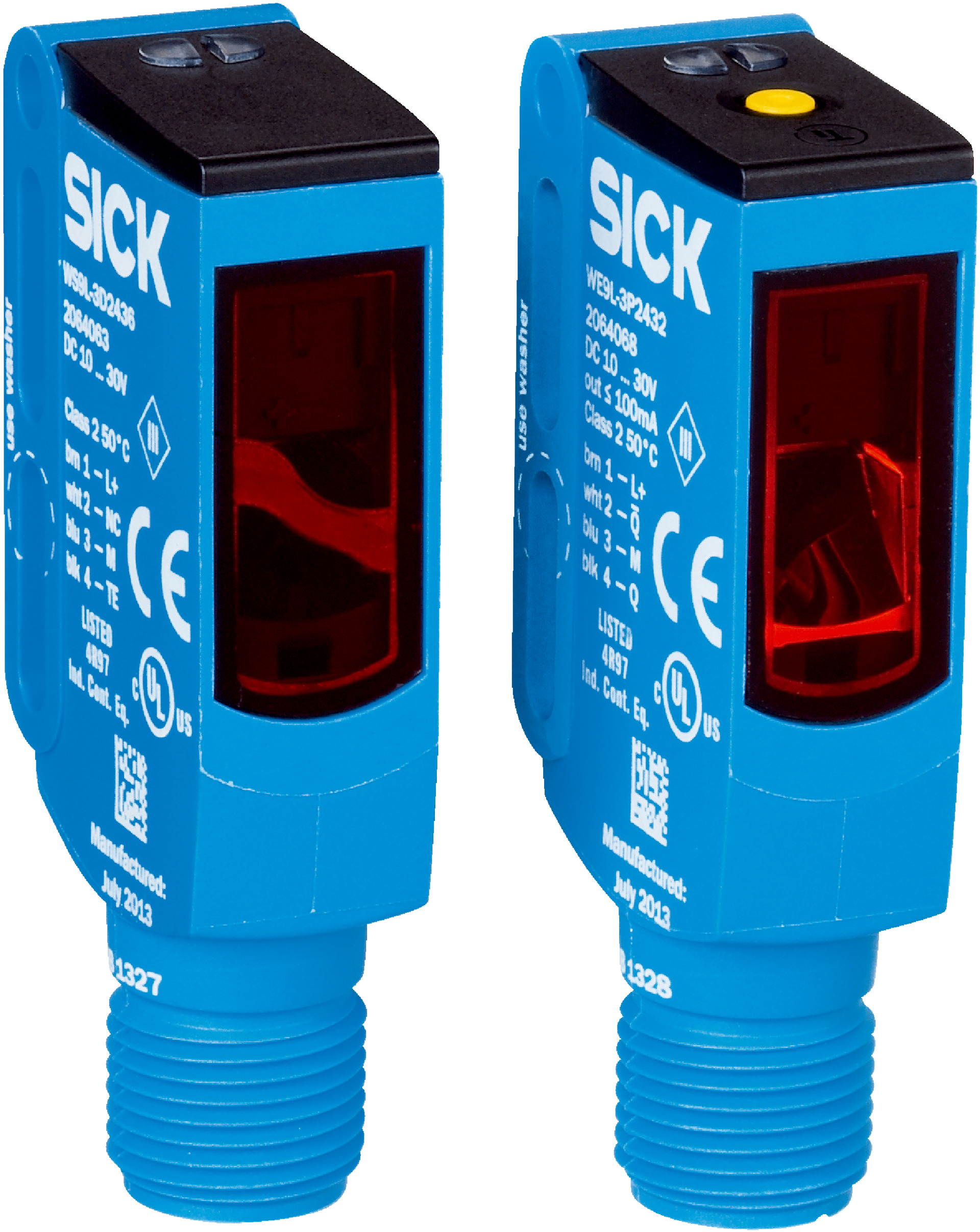

Photoelectric Through Beam Switch | Laser Class 1 | 50m Sensing Range | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Through Beam Switch is designed for precise object detection in industrial automation, featuring a 50m sensing range and a visible red laser light. With a fast response time of ≤ 0.5 ms and robust IP66/IP67/IP69K protection, it's perfect for manufacturing lines and conveyor systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Through Beam Switch | Laser Class 1 | 50m Sensing Range | IP66/IP67/IP69K Rated | by SICK
Brand: SICK
SKU: 2064063
Alternatively Known As: Photoelectric sensor, Through beam sensor, Laser sensor, Optical sensor, Industrial photoelectric switch
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 50 m
- Light source: Visible red laser, wavelength 650 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -30°C to +55°C extended range
- Storage temperature: -30°C to +70°C
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red laser light
- Sensing range up to 50 meters
- Laser class 1 compliant with IEC 60825-1 standards
- Rectangular housing design with M3 mounting holes
- Fast response time of ≤ 0.5 ms and switching frequency of 1000 Hz
- Complementary NPN output with light/dark switching mode
- Robust plastic VISTAL® housing with IP66, IP67, and IP69K protection ratings
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing lines
- Safety and monitoring in conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient laser technology
- Durable IP69K rated housing reduces waste by extending product life
- Complies with China RoHS and ECOLAB standards for environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WS9L-3D2436 Photoelectric Through Beam Switch is available for immediate purchase, ideal for industrial automation and precise object detection applications.
