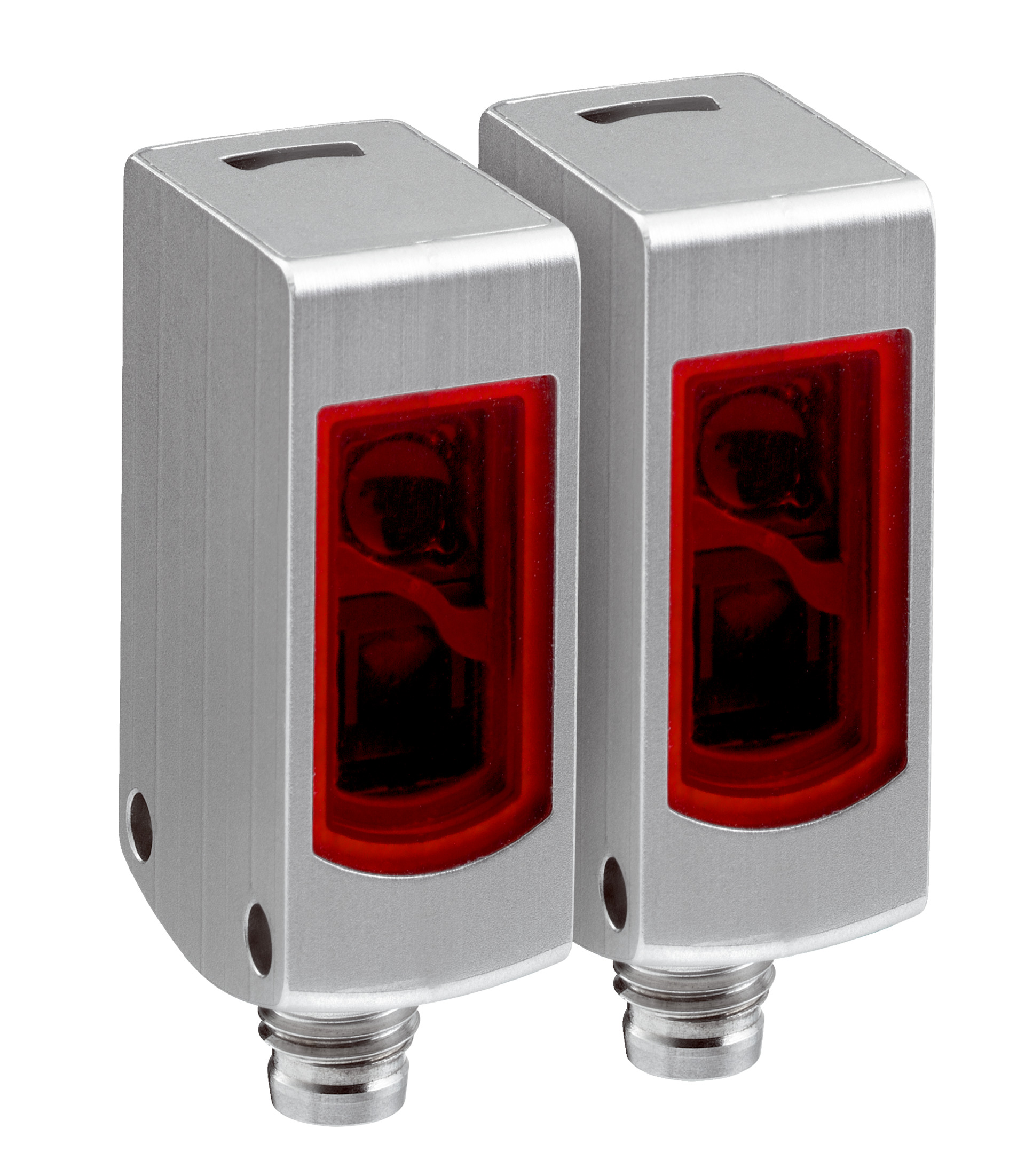

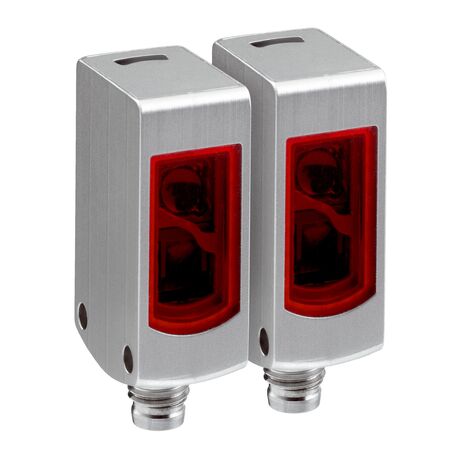

Photoelectric Through Beam Switch | PNP Output | IP66/IP67/IP68/IP69K Rated | Stainless Steel Housing | by SICK
The Photoelectric Through Beam Switch with PNP output is designed for reliable object detection in industrial automation. With a sensing range of up to 4.5 meters and a fast response time of under 0.5 ms, this sensor is perfect for hygienic washdown zones and machine safety applications. Its robust stainless steel housing ensures durability in harsh environments, making it an ideal choice for process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Through Beam Switch | PNP Output | IP66/IP67/IP68/IP69K Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 2060945
Alternatively Known As: Photoelectric sensor, Through beam sensor, PNP photoelectric switch, M12 connector sensor, Washdown photoelectric sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 m to 4.5 m
- Light source: PinPoint LED, visible red light, wavelength 650 nm
- Light spot size: Ø 50 mm at 2 m distance
- Supply voltage: 10 V DC to 30 V DC
- Output type: PNP complementary, light/dark switching
- Max output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 200 Hz
- Protection class: III
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Storage temperature: -30 °C to +75 °C
- MTTFD: 968 years
- Mission time: 20 years
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 4.5 meters
- Slim stainless steel V4A housing suitable for washdown environments
- IP66, IP67, IP68, and IP69K rated for harsh conditions
- Fast response time under 0.5 ms with switching frequency of 200 Hz
- PNP complementary output with light/dark switching mode
- Connector type: Male M12, 4-pin
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Machine safety and process control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Robust stainless steel housing extends product life reducing waste
- Energy-efficient LED light source minimizes power consumption
- Certified for hygienic zones reducing contamination risks
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WE4S-3P2430V Photoelectric Through Beam Switch is available for immediate purchase, ideal for industrial automation and hygienic washdown applications.
