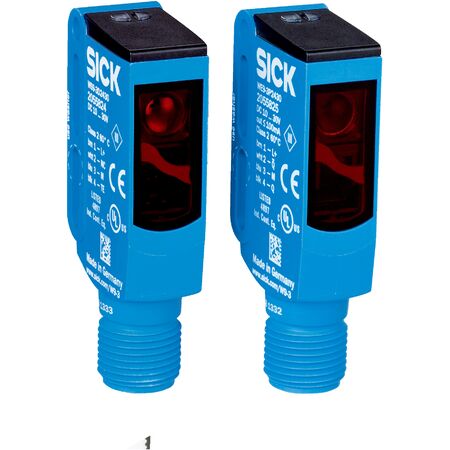

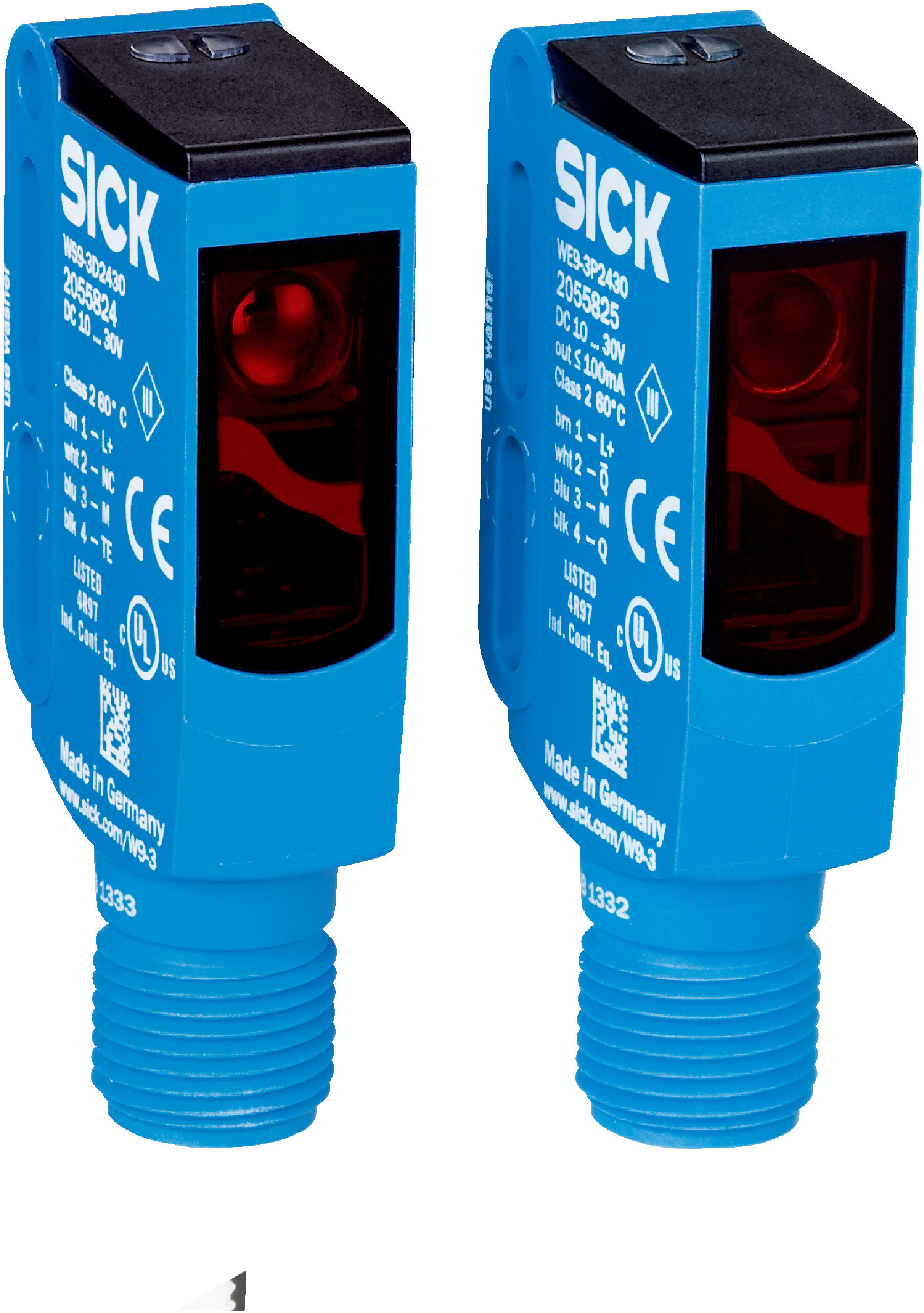

Photoelectric Through Beam Switch WE9-3N2430 | NPN Output | IP66/IP67/IP69K Rated | Fast Response Time | by SICK
The Photoelectric Through Beam Switch WE9-3N2430 is designed for industrial automation, featuring a robust NPN output and a sensing range of up to 10 meters. With no adjustment required for operation, it offers a fast response time of under 0.5 ms and operates within a wide temperature range of -40°C to +60°C. Ideal for manufacturing process control and material handling, this sensor ensures reliable object detection in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Through Beam Switch WE9-3N2430 | NPN Output | IP66/IP67/IP69K Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 2055826
Alternatively Known As: Photoelectric sensor, Through beam sensor, Optical sensor, NPN photoelectric switch, M12 connector sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Weight: 13 g
- Dimensions (H x L x W): 52mm x 24mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red light
- Sensing range up to 7 meters, max 10 meters
- PinPoint LED light source with 650 nm wavelength
- No adjustment required for operation
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
- NPN switching output with light/dark switching mode
- Robust plastic housing with IP66, IP67, and IP69K protection ratings
- Wide ambient operating temperature range from -40°C to +60°C
- Circuit protection included and UL, cULus certifications
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 30 mA reduces energy usage
- Durable IP69K rated housing ensures long product life and reduces waste
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK Photoelectric Through Beam Switch WE9-3N2430 is available for immediate purchase, ideal for industrial automation and manufacturing applications.
