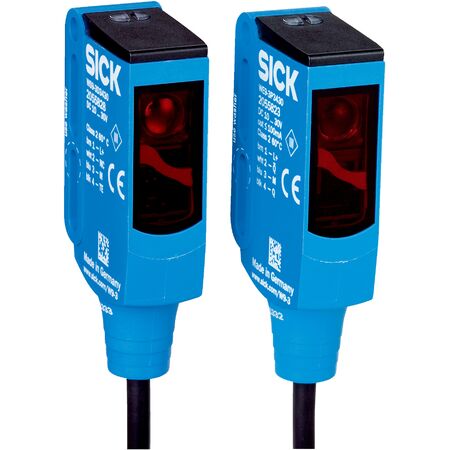

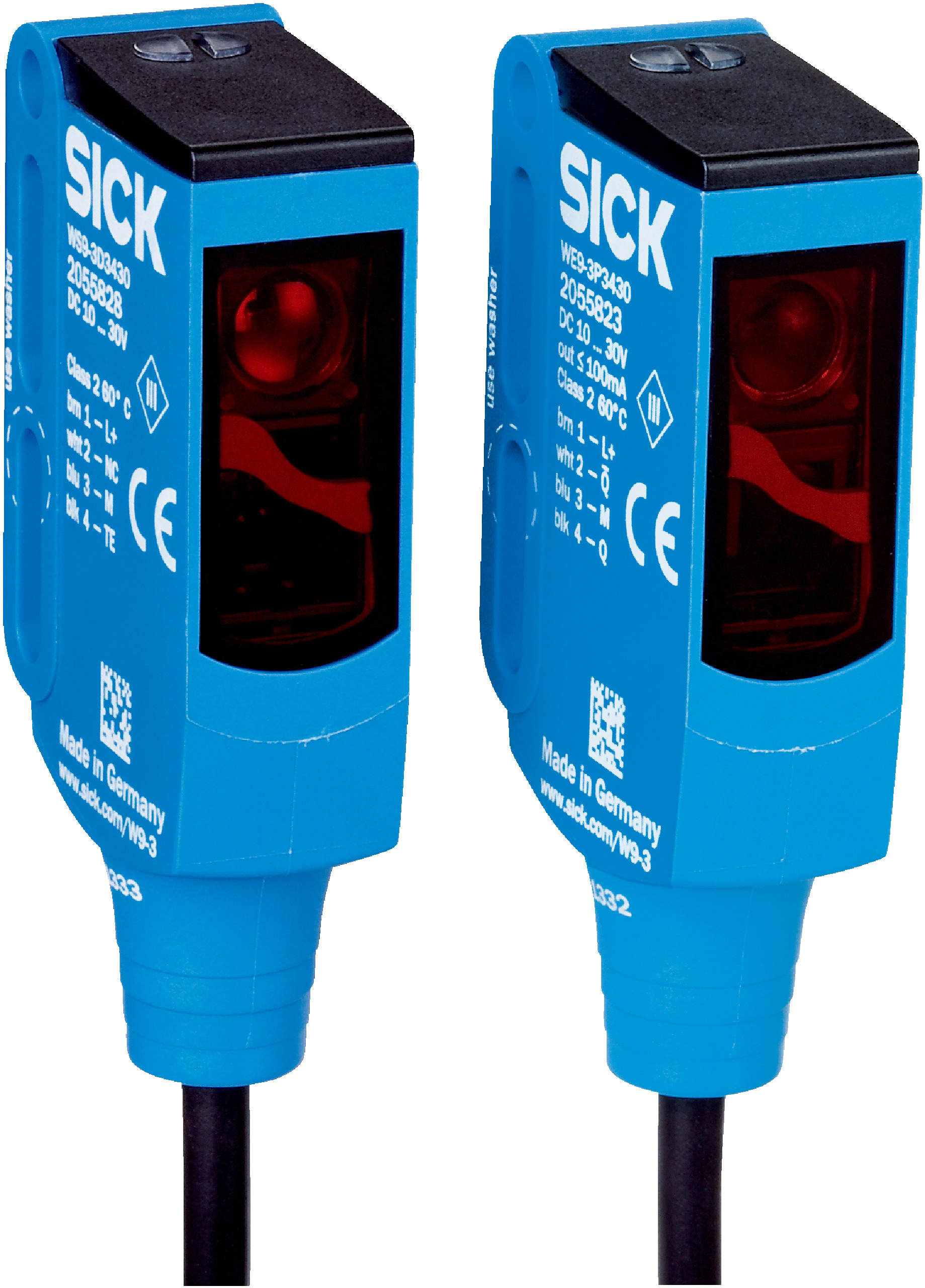

Photoelectric Through Beam Switch WS9-3D1130 | PinPoint Red Light | 7m Sensing Range | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Through Beam Switch WS9-3D1130 features a PinPoint red LED light and a sensing range of up to 7 meters, making it ideal for industrial automation and safety applications. With a high switching frequency of 1000 Hz and a robust IP66/IP67/IP69K rated housing, this sensor ensures reliable performance in demanding environments, perfect for object detection and monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Through Beam Switch WS9-3D1130 | PinPoint Red Light | 7m Sensing Range | IP66/IP67/IP69K Rated | by SICK
Brand: SICK
SKU: 2055818
Alternatively Known As: Photoelectric sensor, Through beam sensor, WS9-3D1130 sensor, PinPoint LED sensor, Industrial photoelectric switch
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range: 0 to 7 meters (max 10 meters)
- Light source: PinPoint LED, visible red light at 650 nm wavelength
- Light spot size: Ø 25 mm at 1 meter
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary function
- Switching mode: Light/dark switching
- Max output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Weight: 80 g
- Dimensions (H x L x W): 50mm x 24mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with visible red PinPoint LED light
- Sensing range up to 7 meters, maximum 10 meters
- Rectangular housing design with M3 mounting hole
- High switching frequency of 1000 Hz and response time under 0.5 ms
- Complementary PNP output with light/dark switching mode
- Robust housing with IP66, IP67, and IP69K protection ratings
- Wide ambient operating temperature range from -40°C to +60°C
- Circuit protection and compliance with multiple international safety standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper wiring and compliance with electrical safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
- Complies with China RoHS and ECOLAB environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK Photoelectric Through Beam Switch WS9-3D1130 is available for immediate purchase, ideal for industrial automation and safety applications.
