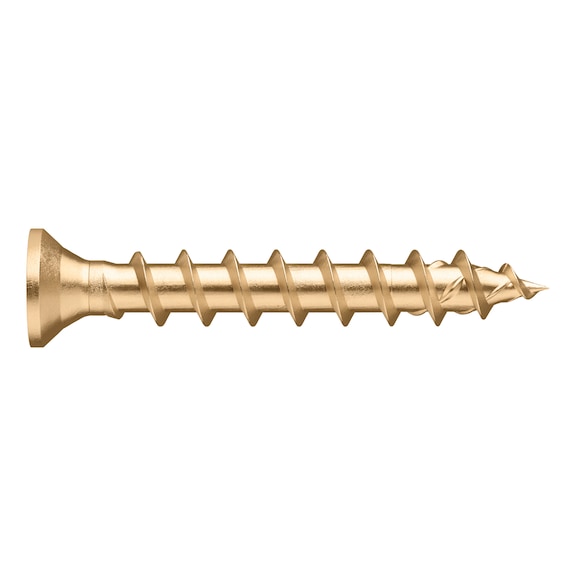

Piano Hinge Screw | Brass Plated | Full Thread & Small Countersunk Head | by Wurth
Piano hinge screw designed for furniture assembly and cabinet making, featuring a brass plated finish and full thread for optimal grip. Ideal for professional installation, this screw ensures strong fastening of thin sheet metals and piano hinges, making it perfect for various woodworking applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Piano Hinge Screw | Brass Plated | Full Thread & Small Countersunk Head | by Wurth
Brand: Wurth
SKU: 168813012
Alternatively Known As: Piano hinge screw, wood screw brass plated, countersunk head screw, RW10 drive screw, furniture screw
Technical Specifications
- Nominal diameter: 3 mm
- Length: 12 mm
- Head type: Small countersunk head
- Head diameter: 4.9 mm
- Head height: 1.3 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Coarse thread
- Thread length: 9 mm
- Core diameter: 2 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 34 degrees
- Material: Hardened steel
- Surface finish: Brass plated
- Screw-in angle range: 45-90 degrees
- Suitable materials: Wood, derived timber products, softwood, plywood, hardwood, LVL
- Suitable machines: Würth BS 12-A Power
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.3mm x 12mm x 4.9mm
- Weight: 0.000384 kg
Key Features
- Full-thread wood screw with small countersunk head
- Ideal power transmission due to RW drive with larger contact area
- More stability and precise positioning with tight-fit recess
- Compatibility with previous AW drive
- Strong fastening of thin sheet metals and piano hinges
- Low head height and small head diameter
- Reinforced asymmetrical coarse thread flank geometry for hardwoods
- Smooth thread start for optimized recessing and biting
- Reduced splitting effect due to dome-shaped milling elements in tip
- Friction-reduced thread rotation lowers screw-in force
- High strength and ductility from adjusted heat treatment
- RoHS-compliant
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and avoid damage to materials.
Applications
- Furniture assembly
- Cabinet making
- Fitting installation
- Piano hinge fixing
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Construction & Building)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
Available for immediate purchase, ideal for furniture, cabinet, and piano hinge applications.
