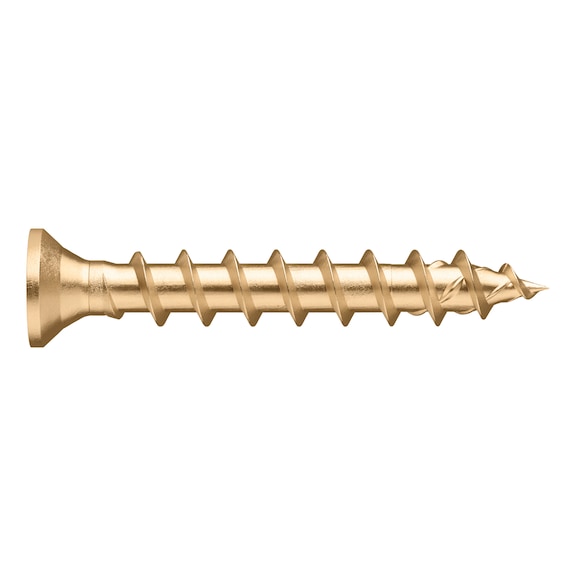

Piano Hinge Screw | Brass Plated | Full Thread & Small Countersunk Head | @Pack of 1000 | by Wurth
Piano hinge screw designed for optimal fastening in wood, featuring a brass plated finish and a small countersunk head. Ideal for furniture assembly and cabinet making, this full-thread screw ensures strong stability and precise positioning, making it perfect for piano hinge applications. With its RW10 drive, it offers enhanced power transmission and reduced splitting effects, ensuring a reliable and durable installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Piano Hinge Screw | Brass Plated | Full Thread & Small Countersunk Head | @Pack of 1000 | by Wurth
Brand: Wurth
SKU: 168813016
Alternatively Known As: Piano hinge screw, wood screw for piano hinges, countersunk wood screw, brass plated hinge screw, RW10 drive screw
Technical Specifications
- Nominal diameter: 3 mm
- Length: 16 mm
- Head type: Small countersunk head
- Head diameter: 4.9 mm
- Head height: 1.3 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Coarse thread
- Thread length: 13 mm
- Core diameter: 2 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 34 degrees
- Material: Hardened steel
- Surface finish: Brass plated
- Screw-in angle range: 0-90 degrees
- Product weight per item: 0.473 g
- Suitable materials: Wood, derived timber products, softwood, board plywood (BSP), hardwood, LVL
- Suitable machines: Würth BS 12-A Power
- Approval: ETA-11/0190
- Screw requiring approval: Yes
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.3mm x 16mm x 4.9mm
- Weight: 0.000473 kg
Key Features
- Full-thread wood screw with small countersunk head for fixing piano hinges in wood
- Ideal power transmission due to RW drive with larger contact area at the bit
- More stability and precise positioning with tight-fit recess and perfect bit fit
- Compatibility with previous AW drive and fewer bit changes needed
- Strong fastening of thin sheet metals such as rod hinges or piano hinges
- Low head height and small head diameter to prevent over-tightening or stripping
- Higher power transmission in hardwoods due to reinforced asymmetrical thread flank geometry
- Better anchoring with higher thread flanks
- Smooth thread start for optimized recessing and biting
- Reduced splitting effect due to dome-shaped milling elements in the tip
- Friction-reduced thread rotation lowers screw-in force
- High strength and ductility guaranteed by adjusted heat treatment
Professional Installation Requirements
- Professional installation recommended for optimal fastening and safety, especially when used in furniture and cabinetry.
Applications
- Furniture assembly
- Cabinet making
- Fitting installation
- Piano hinge fixing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable construction reduces need for frequent replacements
Warranty Information
Warranty details available upon request from Wurth; product complies with ETA-11/0190 approval.
Available Now
Available for immediate purchase, ideal for furniture, cabinet, and piano hinge applications.
