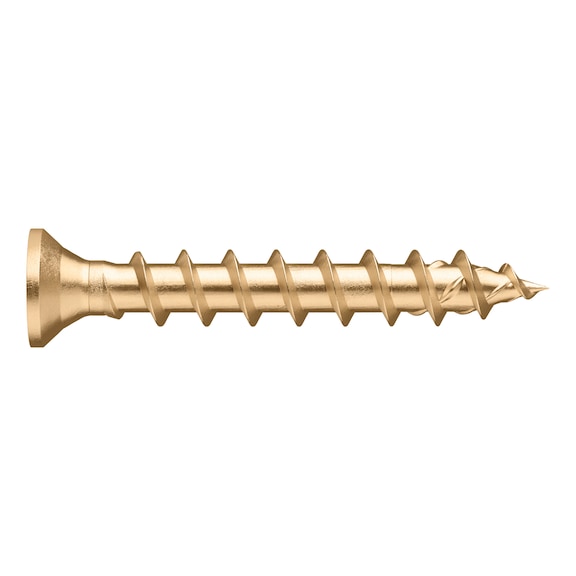

Piano Hinge Screw | Brass Plated | Full Thread & Small Countersunk Head | @Pack of 1000 | by Wurth
Piano hinge screw designed for furniture assembly and cabinet making, featuring a brass plated finish and a small countersunk head for a clean look. With a full thread design and RW10 drive, it ensures strong fastening and precise positioning, making it ideal for piano hinge installations and other applications requiring stability and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Piano Hinge Screw | Brass Plated | Full Thread & Small Countersunk Head | @Pack of 1000 | by Wurth
Brand: Wurth
SKU: 168813020
Alternatively Known As: Piano hinge screw, wood screw brass plated, countersunk head screw, RW10 drive screw, furniture screw
Technical Specifications
- Nominal diameter: 3 mm
- Length: 20 mm
- Head type: Small countersunk head
- Head diameter: 4.9 mm
- Head height: 1.3 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Coarse thread
- Thread length: 17 mm
- Core diameter: 2 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 28 degrees
- Material: Hardened steel
- Surface finish: Brass plated
- Screw-in angle range: 0-90 degrees
- Product weight per item: 0.575 g
- Suitable materials: Wood, derived timber products, softwood, board plywood (BSP), hardwood, LVL
- Area of application: Furniture, cabinet, fitting, piano hinge
- Suitable machines: Würth BS 12-A Power
- Approval: ETA-11/0190
- Screw requiring approval: Yes
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.3mm x 20mm x 4.9mm
- Weight: 0.000575 kg
Key Features
- Full-thread wood screw with small countersunk head
- Ideal power transmission due to RW drive with larger contact area
- More stability and precise positioning with tight-fit recess
- Compatibility with previous AW drive
- Strong fastening of thin sheet metals and piano hinges
- Low head height and small head diameter to prevent over-tightening
- Reinforced asymmetrical thread flank geometry for hardwoods
- Smooth thread start for optimized recessing and biting
- Reduced splitting effect due to dome-shaped milling elements in tip
- Friction-reduced thread rotation lowers screw-in force
- High strength and ductility from adjusted heat treatment
Professional Installation Requirements
- Professional installation recommended for optimal fastening performance and safety, especially when used in structural or load-bearing applications.
Applications
- Furniture assembly
- Cabinet making
- Fitting installation
- Piano hinge fixing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable construction reduces need for frequent replacements
Warranty Information
Wurth provides warranty coverage as per standard terms for fastening products; please refer to Wurth's official warranty policy.
Available Now
Available for immediate purchase, ideal for furniture, cabinetry, and piano hinge installations.
