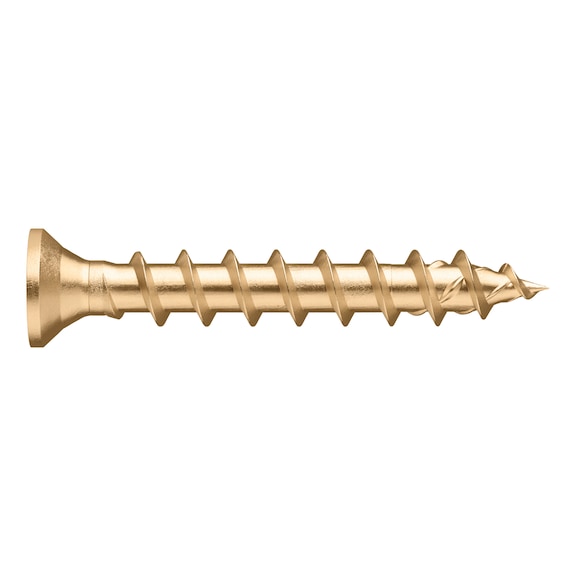

Piano Hinge Screw | Brass Plated | Full Thread & Small Countersunk Head | by Wurth
Piano hinge screw with brass plating and full thread design, perfect for furniture assembly and cabinet making. Engineered for optimal power transmission with RW drive, it ensures strong fastening for thin sheet metals and piano hinges. Ideal for professional installation, this screw features a low head height to prevent over-tightening and is RoHS-compliant for environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Piano Hinge Screw | Brass Plated | Full Thread & Small Countersunk Head | by Wurth
Brand: Wurth
SKU: 168813025
Alternatively Known As: Piano hinge screw, brass plated wood screw, countersunk head screw, full thread wood screw, RW10 drive screw
Technical Specifications
- Dimensions (H x L x W): 1.3mm x 25mm x 4.9mm
- Weight: 0.0008 kg
Key Features
- Full-thread wood screw with small countersunk head
- Ideal power transmission due to RW drive with larger contact area
- More stability and precise positioning with tight-fit recess
- Compatibility with previous AW drive
- Strong fastening of thin sheet metals and piano hinges
- Low head height and small head diameter to prevent over-tightening
- Reinforced asymmetrical thread flank geometry for hardwoods
- Smooth thread start for optimized recessing and biting
- Reduced splitting effect due to dome-shaped milling elements in tip
- Friction-reduced thread rotation lowers screw-in force
- High strength and ductility from adjusted heat treatment
- Brass plated hardened steel material
Professional Installation Requirements
- Recommended installation using Würth BS 12-A Power machine or equivalent for optimal fastening performance.
Applications
- Furniture assembly
- Cabinet making
- Fitting installation
- Piano hinge fixing
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable construction reduces need for frequent replacements
Warranty Information
Warranty details available upon request from Wurth.
Available Now
Available for immediate purchase, ideal for furniture, cabinet, and piano hinge applications.
