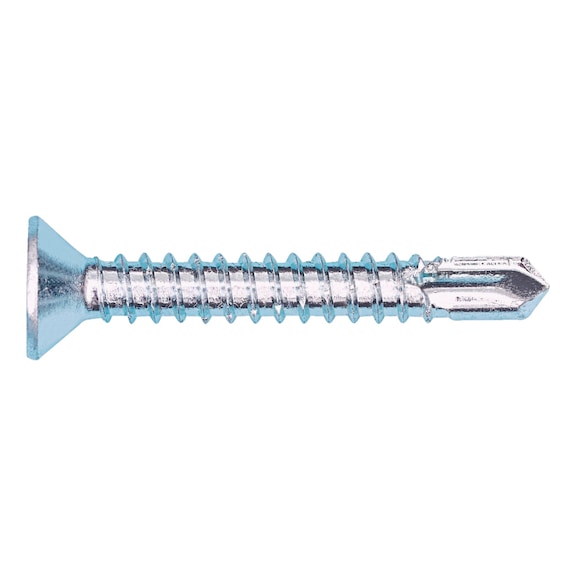

Pias Drilling Screw Countersunk Head | AW Drive | Zinc Plated | 100 PCS | by Wurth
Pias drilling screws with a countersunk head and AW drive are perfect for metal fastening and construction applications. Made from galvanized steel with a zinc-plated surface for corrosion resistance, these self-tapping screws simplify installation by combining drilling, threading, and screwing in one step. Ideal for professionals, they ensure secure connections in sheet metal and electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias Drilling Screw Countersunk Head | AW Drive | Zinc Plated | 100 PCS | by Wurth
Brand: Wurth
SKU: 20573516
Alternatively Known As: Self-tapping drilling screw, Countersunk metal screw, AW drive screw, Zinc plated drilling screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated (blue passivated A3K)
- Nominal diameter: 3.5 mm
- Length: 16 mm
- Head diameter: 6.8 mm
- Head height: 2.5 mm
- Internal drive: AW10
- Drill tip length: 3 mm
- Head type: Countersunk head 80 degree
- Thread type: Self-tapping screw thread
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 2.5 mm
- Recommended installation speed (idling): 1700-2500 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.5mm x 16mm x 6.8mm
- Weight: 0.02 kg
Key Features
- Galvanised steel with blue passivated (A3K) surface for corrosion resistance
- AW drive system for optimal torque transmission and longer service life
- Drilling, threading, and screwing-in all in one step to reduce time and effort
- Exact drilling diameter minimizes thread tolerance and prevents installation errors
- Countersunk head with 80 degree angle for flush mounting
- Even force distribution prevents damage to surface protection coating
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate tools and adhering to recommended installation speeds and torque to ensure optimal performance and safety.
Applications
- Metal fastening and joining
- Sheet metal construction
- Electrical installations requiring secure metal connections
- General industrial and construction fastening tasks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable corrosion-resistant coating extends product life reducing waste
Warranty Information
Wurth provides a standard warranty against manufacturing defects; please refer to Wurth's official warranty policy for details.
Available Now
The Wurth Pias Drilling Screw Countersunk Head with AW Drive is available for immediate purchase, ideal for metal fastening and construction applications.
