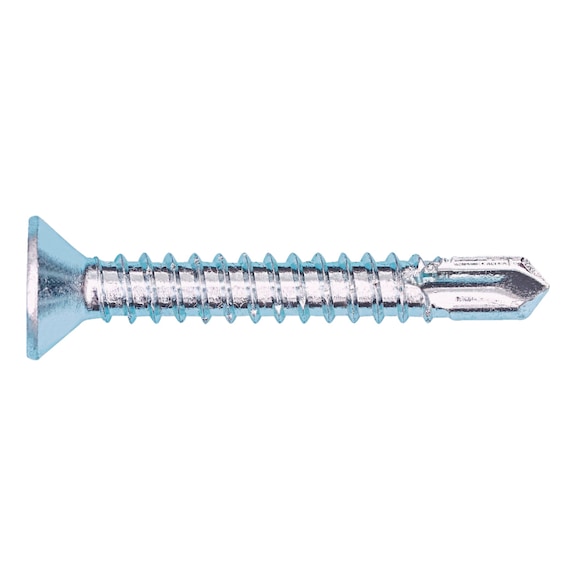

Pias Drilling Screw Countersunk Head | AW Drive | Zinc Plated | 100 PCS | by Wurth
Pias drilling screw countersunk head with AW drive is designed for efficient metal fastening and construction. Made from galvanized steel with a blue passivated surface, it offers excellent corrosion resistance and optimal torque transmission. Ideal for professionals, this self-tapping screw simplifies drilling, threading, and screwing in one step, ensuring precise connections and reducing installation errors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias Drilling Screw Countersunk Head | AW Drive | Zinc Plated | 100 PCS | by Wurth
Brand: Wurth
SKU: 20573916
Alternatively Known As: Self-tapping drilling screw, Countersunk head screw, AW drive screw, Metal drilling screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated (blue passivated A3K)
- Nominal diameter: 3.9 mm
- Length: 16 mm
- Head diameter: 7.5 mm
- Head height: 2.8 mm
- Internal drive: AW20
- Drill tip length: 3.1 mm
- Head type: Countersunk head 80 degree
- Thread type: Self-tapping screw thread
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 3.0 mm
- Min./max. recommended installation speed (idling): 1700-2500 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.8mm x 16mm x 7.5mm
- Weight: 0.02 kg
Key Features
- Galvanised steel with blue passivated (A3K) surface for corrosion resistance
- AW drive system for optimal torque transmission and longer service life
- Drilling, threading, and screwing-in all in one work step to reduce time and effort
- Exact drilling diameter for each screw connection minimizing thread tolerance
- Prevents installation errors with optimum connection
- Fatigue-free screwing with lower contact pressure required
- Largest possible contact surface of bit in screw drive for even force distribution
- Prevents damage to surface-protection coating ensuring better corrosion resistance
Professional Installation Requirements
- Installation should be performed by professionals using suitable drills and drivers at recommended speeds to ensure optimal performance and safety.
Applications
- Metal construction and assembly
- Sheet metal fastening
- General purpose drilling and screwing in metal materials
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Corrosion-resistant coating extends product life reducing waste
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth Pias Drilling Screw Countersunk Head with AW Drive is available for immediate purchase, ideal for metal fastening and construction applications.
