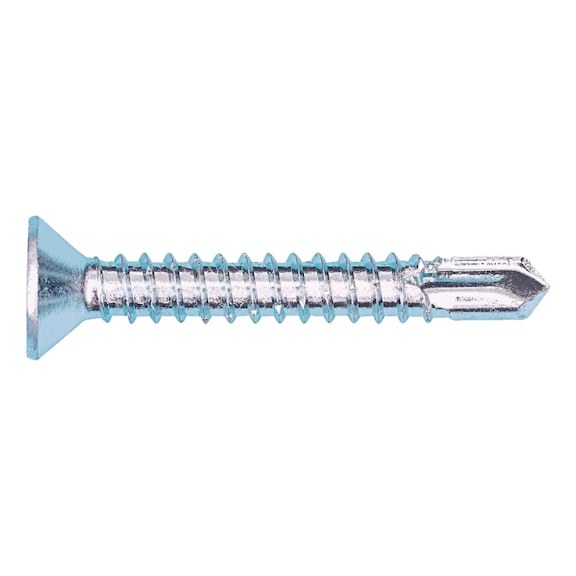

Pias Drilling Screw Countersunk Head | AW Drive | Zinc Plated | Self-Tapping | @Pack of 100 | by Wurth
Pias drilling screws with a countersunk head and AW drive are perfect for metal fastening and industrial assembly. Made from galvanized steel with a blue passivated surface, these self-tapping screws ensure optimal torque transmission and reduce installation errors. Ideal for sheet metal construction and electrical installations, they offer a reliable solution for professionals seeking efficiency and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias Drilling Screw Countersunk Head | AW Drive | Zinc Plated | Self-Tapping | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 20573513
Alternatively Known As: Self-tapping drilling screw, Countersunk head screw, AW drive screw, Metal drilling screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated (blue passivated A3K)
- Nominal diameter: 3.5 mm
- Length: 13 mm
- Head diameter: 6.8 mm
- Head height: 2.5 mm
- Internal drive: AW10
- Drill tip length: 3 mm
- Head type: Countersunk head 80 degree
- Thread type: Self-tapping screw thread
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 2.5 mm
- Min./max. recommended installation speed (idling): 1700-2500 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.5mm x 13mm x 6.8mm
- Weight: 0.02 kg
Key Features
- Galvanised steel with blue passivated (A3K) surface for corrosion resistance
- AW drive system for optimal torque transmission and longer service life
- Drilling, threading, and screwing-in all in one step to reduce time and effort
- Exact drilling diameter minimizes thread tolerance and prevents installation errors
- Countersunk head with 80 degree angle for flush mounting
- Self-tapping screw thread suitable for metal thickness up to 2.5 mm
- Even force distribution prevents damage to surface protection coating
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate drills and screwdrivers to ensure correct torque and depth stop settings.
Applications
- Metal fastening and joining
- Sheet metal construction
- Electrical installations
- General industrial assembly requiring self-tapping screws
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Galvanised and passivated coating extends product life reducing waste
- Efficient one-step drilling and fastening reduces energy and material use
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company standards.
Available Now
The Wurth Pias Drilling Screw Countersunk Head with AW Drive is available for immediate purchase, ideal for metal fastening and industrial assembly applications.
