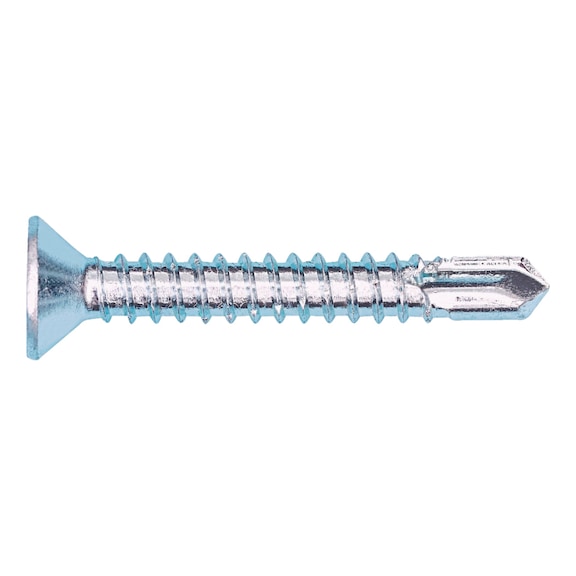

Pias Drilling Screw Countersunk Head | AW Drive | Zinc Plated | Self-Tapping | @Pack of 100 | by Wurth
Pias drilling screws with a countersunk head and AW drive are perfect for metal fastening and joining. Made from galvanized steel with a blue passivated surface, these self-tapping screws ensure optimal torque transmission and corrosion resistance. Ideal for sheet metal construction and electrical installations, they simplify the drilling and fastening process in one step, making them a must-have for professionals in industrial and construction settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias Drilling Screw Countersunk Head | AW Drive | Zinc Plated | Self-Tapping | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 20573522
Alternatively Known As: Self-tapping drilling screw, Countersunk metal screw, AW drive screw, Zinc plated drilling screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated (blue passivated A3K)
- Nominal diameter: 3.5 mm
- Length: 22 mm
- Head diameter: 6.8 mm
- Head height: 2.5 mm
- Internal drive: AW10
- Drill tip length: 3 mm
- Head type: Countersunk head 80 degree
- Thread type: Self-tapping screw thread
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 2.5 mm
- Recommended installation speed (idling): 1700-2500 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.5mm x 22mm x 6.8mm
- Weight: 0.02 kg
Key Features
- Galvanised steel with blue passivated (A3K) surface for corrosion resistance
- AW drive system for optimal torque transmission and longer service life
- Drilling, threading, and screwing-in all in one work step to reduce time and effort
- Exact drilling diameter for each screw connection minimizing thread tolerance
- Countersunk head 80 degree for flush mounting
- Self-tapping screw thread suitable for metal thickness up to 2.5 mm
- Even force distribution prevents damage to surface protection coating
Professional Installation Requirements
- Installation should be performed by professionals using suitable drills and drivers at recommended speeds to ensure optimal fastening and safety.
Applications
- Metal fastening and joining
- Sheet metal construction
- Electrical installations requiring secure metal connections
- General industrial and construction use for metal materials
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Galvanised and passivated coating extends product life reducing waste
- Efficient one-step drilling and fastening reduces energy and tool usage
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth Pias Drilling Screw Countersunk Head with AW Drive is available for immediate purchase, ideal for metal fastening in construction and industrial applications.
