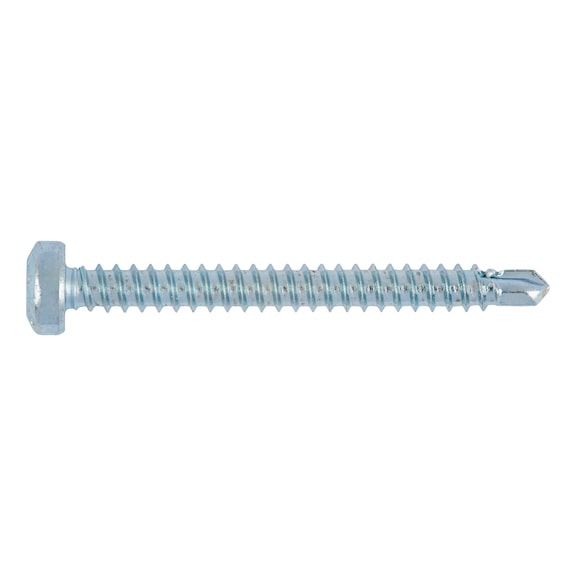

Pias® Drilling Screw | Flat Head with AW Drive | Galvanized Coating & Integrated Drill Tip | by WURTH
Pias® drilling screw features a flat head design with AW drive, perfect for fastening steel profiles on substructures up to 3 mm thick. Made from case-hardened steel with a galvanized blue passivert coating, it offers excellent corrosion resistance and durability. The integrated drill tip reduces assembly time by at least 50%, making it ideal for construction and metalworking applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Flat Head with AW Drive | Galvanized Coating & Integrated Drill Tip | by WURTH
Brand: WURTH
SKU: 020635 16
Alternatively Known As: Self-drilling screw, metal drilling screw, steel fastening screw, galvanized drilling screw
Technical Specifications
- Material: Steel, case-hardened
- Coating: Galvanized blue passivert
- Drive type: AW drive
- Head type: Flat head
- Drill tip for fast assembly
- Suitable for steel substructures ≤ 3 mm thickness
- Contact pressure during use approx. 100 N
- Must be used with suitable drill driver with depth stop
- Impact screwdrivers not permitted
- Dimensions (H x L x W): 30mm x 30mm x 5mm
- Weight: 0.1 kg
Key Features
- Steel case-hardened for durability
- Galvanized blue passivert coating for corrosion resistance
- Integrated drill tip reduces assembly time by at least 50%
- Flat head design with AW drive for secure fastening
Professional Installation Requirements
- Installation requires a suitable drill driver with depth stop; impact screwdrivers are not permitted. Screws must be attached perpendicular to the surface with approx. 100 N contact pressure.
Applications
- Fastening steel profiles on steel substructures up to 3 mm thickness
- Suitable for construction and metalworking applications requiring secure steel fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanized coating extends product life reducing replacement frequency and waste
Warranty Information
Warranty against manufacturing defects as per WURTH standard terms and conditions.
Available Now
The WURTH pias® drilling screw flat head with AW drive is available for immediate purchase, ideal for construction and metal fastening applications.
