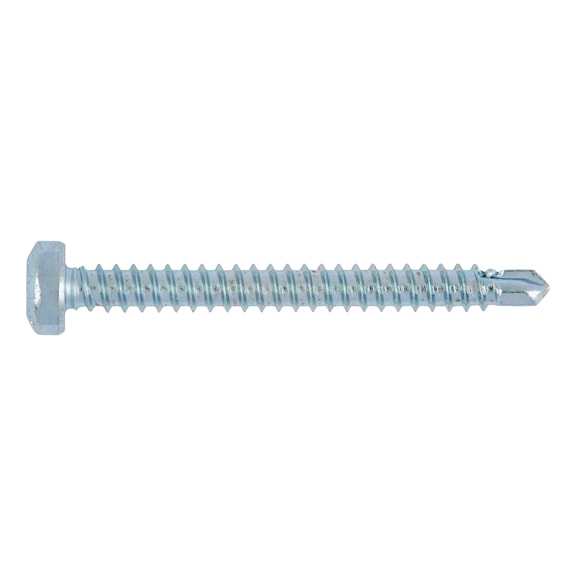

Pias® Drilling Screw | Flat Head with AW Drive | Steel Case-Hardened | Galvanized Coating | by WURTH
The Pias® drilling screw features a flat head design with AW drive, crafted from steel and case-hardened for exceptional durability. Ideal for fastening steel profiles on substructures up to 3 mm thick, this screw's drill tip reduces assembly time by at least 50%. Perfect for construction and metalworking applications, it ensures secure fastening with a galvanized coating for corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Flat Head with AW Drive | Steel Case-Hardened | Galvanized Coating | by WURTH
Brand: WURTH
SKU: 020635 13
Alternatively Known As: Self-drilling screw, metal drilling screw, steel drilling screw, flat head screw with drill tip
Technical Specifications
- Material: Steel, case-hardened
- Coating: Galvanized blue passivert
- Drive type: AW drive
- Head type: Flat head
- Drill tip for fast assembly
- Suitable for steel substructures ≤ 3 mm
- Contact pressure during use approx. 100 N
- Use with drill driver with depth stop; impact screwdrivers not permitted
- Dimensions (H x L x W): 30mm x 30mm x 5mm
- Weight: 0.1 kg
Key Features
- Steel case-hardened for durability
- Galvanized blue passivert coating for corrosion resistance
- Drill tip reduces assembly time by at least 50%
- Flat head design with AW drive for secure fastening
- Must be used with suitable drill driver and depth stop
- Perpendicular attachment to surface required
Professional Installation Requirements
- Installation requires use of a suitable drill driver with depth stop; impact screwdrivers are not permitted. Screws must be attached perpendicular to the surface for optimal performance.
Applications
- Fastening steel profiles on steel substructures up to 3 mm thickness
- Suitable for construction and metalworking applications requiring secure fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanized coating provides corrosion resistance extending product life and reducing replacement waste
Warranty Information
Warranty against manufacturing defects as per WURTH standard terms and conditions.
Available Now
The WURTH pias® drilling screw flat head with AW drive is available for immediate purchase, ideal for construction and metal fastening applications.
