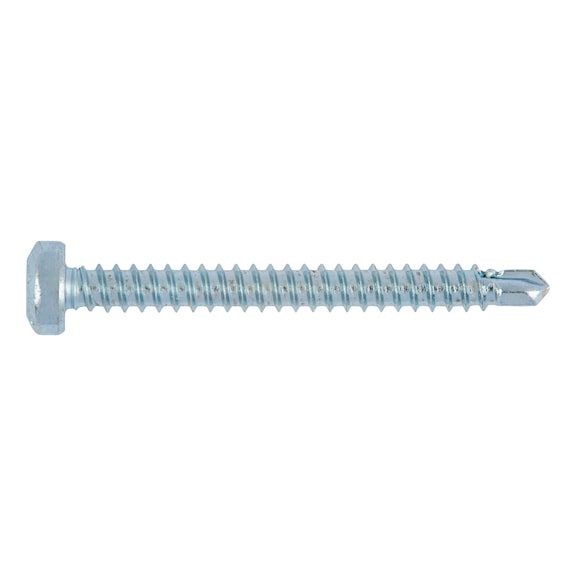

Pias® Drilling Screw | Flat Head with AW Drive | Steel Case-Hardened | Galvanized Coating | by WURTH
The Pias® drilling screw features a flat head design with AW drive, crafted from steel and case-hardened for exceptional durability. Ideal for fastening steel profiles on substructures up to 3 mm thick, this screw reduces assembly time by at least 50% thanks to its drill tip. Perfect for construction and metalworking applications, it ensures secure fastening with corrosion resistance from its galvanized blue passivert coating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Flat Head with AW Drive | Steel Case-Hardened | Galvanized Coating | by WURTH
Brand: WURTH
SKU: 020639 13
Alternatively Known As: Self-drilling screw, metal drilling screw, steel profile screw, galvanized drilling screw
Technical Specifications
- Material: Steel, case-hardened
- Coating: Galvanized blue passivert
- Drive type: AW drive
- Head type: Flat head
- Drill tip for fast assembly
- Suitable for steel substructures ≤ 3 mm
- Contact pressure during use approx. 100 N
- Must be used with suitable drill driver with depth stop
- Impact screwdrivers not permitted
- Dimensions (H x L x W): 30mm x 5mm x 5mm
- Weight: 0.1 kg
Key Features
- Steel case-hardened for durability
- Galvanized blue passivert coating for corrosion resistance
- Drill tip reduces assembly time by at least 50%
- Flat head design with AW drive for secure fastening
Professional Installation Requirements
- Installation requires a suitable drill driver with depth stop; impact screwdrivers are not permitted. Screws must be attached perpendicular to the surface with approx. 100 N contact pressure.
Applications
- Fastening steel profiles on steel substructures up to 3 mm thickness
- Suitable for construction and metalworking applications requiring secure fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanized coating extends product life reducing replacement frequency
- Efficient assembly reduces energy consumption during installation
Warranty Information
Warranty against manufacturing defects as per WURTH standard terms and conditions.
Available Now
The WURTH pias® drilling screw flat head with AW drive is available for immediate purchase, ideal for construction and metal fastening applications.
