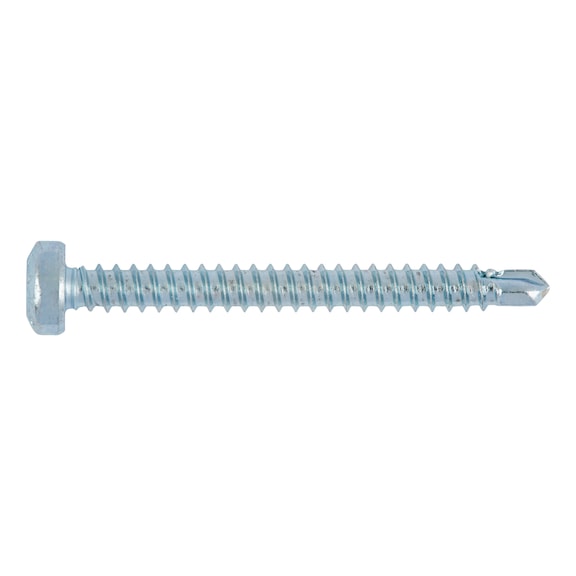

pias® Drilling Screw Flat Head AW Drive | Steel Case-Hardened | Galvanized Coating | Integrated Drill Tip | by WURTH
The pias® drilling screw with a flat head and AW drive is designed for efficient fastening in construction and metalworking applications. Made from steel and case-hardened for durability, it features a galvanized blue passivert coating for corrosion resistance. The integrated drill tip allows for fast assembly, making it ideal for securing steel profiles on substructures up to 3 mm thickness, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: pias® Drilling Screw Flat Head AW Drive | Steel Case-Hardened | Galvanized Coating | Integrated Drill Tip | by WURTH
Brand: WURTH
SKU: 020639 16
Alternatively Known As: Self-drilling screw, metal drilling screw, steel fastening screw, flat head screw with drill tip
Technical Specifications
- Material: Steel, case-hardened
- Coating: Galvanized blue passivert
- Drive type: AW drive
- Head type: Flat head
- Drill tip included for fast assembly
- Suitable for steel substructures ≤ 3 mm thickness
- Contact pressure during use: approx. 100 N
- Must be used with drill driver with depth stop
- Impact screwdrivers not permitted
- Dimensions (H x L x W): 30mm x 5mm x 5mm
- Weight: 0.1 kg
Key Features
- Steel case-hardened for durability
- Galvanized blue passivert coating for corrosion resistance
- Integrated drill tip reduces assembly time by at least 50%
- Flat head design with AW drive for secure fastening
- Requires contact pressure of approximately 100 N during use
- Must be screwed in perpendicular to the surface
- Use with suitable drill driver with depth stop; impact screwdrivers not permitted
Professional Installation Requirements
- Installation requires a suitable drill driver with depth stop; impact screwdrivers must not be used. Screws must be applied perpendicular to the surface with approximately 100 N contact pressure.
Applications
- Fastening steel profiles on steel substructures up to 3 mm thickness
- Suitable for construction and metalworking applications requiring secure steel fastening
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanized coating provides corrosion resistance, extending product life and reducing replacement frequency
Warranty Information
Warranty against manufacturing defects as per WURTH standard terms and conditions.
Available Now
The WURTH pias® drilling screw flat head with AW drive is available for immediate purchase, ideal for construction and metal fastening applications requiring durable and efficient steel fastening.
