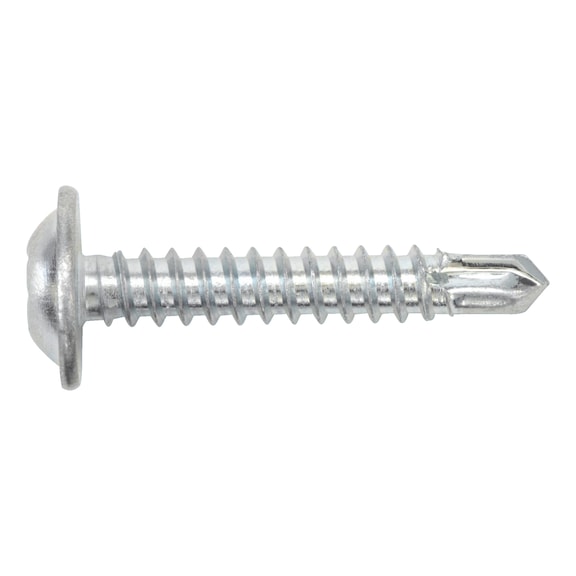

Pias® Drilling Screw | Galvanised Steel | AW Drive System | 50 PCS | by Wurth
Pias® drilling screws are designed for efficient metal fastening with a galvanised steel construction and an AW drive system for enhanced torque. Ideal for construction and manufacturing, these self-tapping screws simplify installation in thin metal sheets up to 3.5 mm thick, ensuring durability and reliability in every application.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Steel
- Surface: Zinc plated (blue passivated A3K)
- Nominal diameter: 4.2 mm
- Length: 19 mm
- Head diameter: 11.0 mm
- Head height: 2.9 mm
- Drill tip length: 3.7 mm
- Head type: Pan head with collar
- Internal drive: AW20
- Thread type: Self-tapping full thread
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 3.5 mm
- Max. attachment thickness: 12 mm
- Recommended installation speed (idling): 1700-2500 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.9mm x 19mm x 4.2mm
- Weight: 0.02 kg
Key Features
- Galvanised steel with blue passivated (A3K) surface for corrosion resistance
- AW drive system for enhanced torque transmission and longer service life
- Drilling, threading, and screwing-in all in one step to reduce time and effort
- Exact drilling diameter minimizes thread tolerance and prevents installation errors
- Pressed-on flange reduces surface pressure to prevent stress cracks
- Even force distribution protects surface-protection coating
Professional Installation Requirements
- Installation by a professional or experienced technician is recommended to ensure correct torque and avoid damage.
Applications
- Metal fastening and assembly
- Construction and manufacturing requiring self-tapping screws
- Installation in thin metal sheets up to 3.5 mm thickness
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable corrosion-resistant coating extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
Wurth pias® drilling screws are available for immediate purchase, ideal for metal fastening and construction applications.
