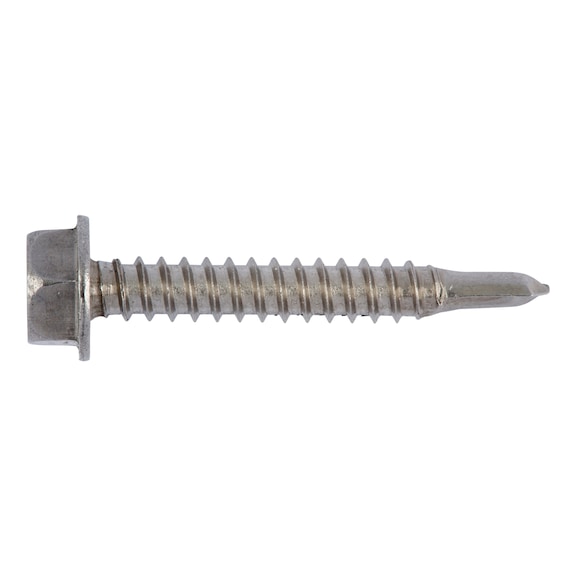

Pias® Drilling Screw | Hexagon Head A2 Stainless Steel | Self-Tapping Thread | 25 PCS | by Wurth
Pias® drilling screws with hexagon heads and A2 stainless steel construction are perfect for fastening aluminum profiles to aluminum substructures. Featuring a self-tapping thread and a drill tip that reduces assembly time by 50%, these screws ensure secure fastening without graining. Ideal for professional installations, they comply with safety standards and are RoHS-compliant, making them a reliable choice for your projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Hexagon Head A2 Stainless Steel | Self-Tapping Thread | 25 PCS | by Wurth
Brand: Wurth
SKU: 21414832
Alternatively Known As: Stainless Steel Drilling Screw, Hex Head Self-Tapping Screw, Aluminium Profile Screw, pias® Hexagon Head Screw
Technical Specifications
- Material: Stainless steel A2
- Surface: Plain
- Head type: Hexagon head
- Drive type: Hexagon (WS8)
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Nominal diameter: 4.8 mm
- Length: 32 mm
- Head diameter: 10.5 mm
- Flange diameter: 9.75 mm
- Head height: 5.4 mm
- Drill tip length: 6.5 mm
- Screw-thread length with drill tip: 29 mm
- Max. material thickness to be drilled through (metal): 4.5 mm
- Max. substructure thickness: 3 mm
- Min./max. attachment thickness: 1.8-23 mm
- Recommended installation speed (idling): 1700-2500 rpm
- Approval: ETA-10/0184
- RoHS-compliant: Yes
- Dimensions (H x L x W): 5.4mm x 32mm x 10.5mm
- Weight: 0.05 kg
Key Features
- Drill tip reduces assembly time by at least 50%
- Drilling without graining, thread moulding, and securing all in one operation
- Suitable for fastening aluminium profiles to aluminium substructures
- Self-tapping screw thread with drilling tip
- Hexagon head and drive type for secure fastening
Professional Installation Requirements
- Use a suitable drill driver (e.g., cordless drill driver with depth stop). Impact screwdrivers are not permitted. Screws must be attached perpendicular to the surface.
Applications
- Fastening aluminium profiles to aluminium substructures up to 4 mm thickness
- Suitable for component combinations tI/tII according to approval ETA-10/0184 ALU/ALU
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from stainless steel A2 which is durable and corrosion resistant, reducing replacement frequency and waste
- RoHS-compliant ensuring restriction of hazardous substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth pias® drilling screws hexagon head A2 stainless steel 25 PCS are available for immediate purchase, ideal for aluminium profile fastening applications.
