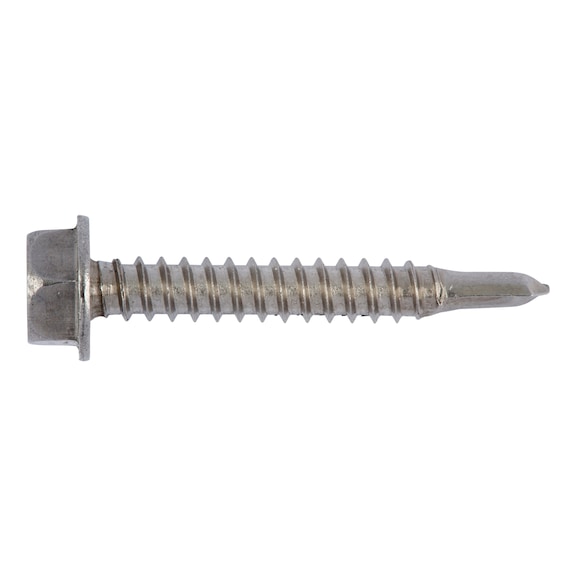

Pias® Drilling Screw Hexagon Head A2 Stainless Steel Variant-2 Wurth
Pias® drilling screws with hexagon heads and A2 stainless steel construction are perfect for fastening aluminum profiles to substructures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Stainless steel A2
- Surface: Plain
- Head type: Hexagon head
- Drive type: Hexagon (WS10)
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Nominal diameter: 6.3 mm
- Length: 22 mm
- Head diameter: 13.0 mm
- Flange diameter: 12.19 mm
- Head height: 6.8 mm
- Drill tip length: 9.0 mm
- Screw-thread length with drill tip: 18 mm
- Max. material thickness to be drilled through (metal): 6.0 mm
- Max. substructure thickness: 4 mm
- Min./max. attachment thickness: 2-10 mm
- Approval: ETA-10/0184
- Recommended installation speed (idling): 1200-1800 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.8mm x 22mm x 13mm
- Weight: 0.05 kg
Key Features
- Drill tip reduces assembly time by at least 50%
- Drilling without graining, thread moulding, and securing all in one operation
- Self-tapping screw thread with drilling tip
- Hexagon head and drive type for secure fastening
- RoHS-compliant stainless steel A2 material
Professional Installation Requirements
- Use a suitable drill driver with depth stop; impact screwdrivers are not permitted. Screws must be attached perpendicular to the surface for optimal fastening.
Applications
- Fastening aluminium profiles to aluminium substructures up to 4 mm thickness
- Suitable for component combinations tI/tII according to approval ETA-10/0184 ALU/ALU
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from corrosion-resistant stainless steel for long service life reducing replacement waste
- RoHS-compliant material ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth pias® drilling screws hexagon head A2 stainless steel 25 PCS are available for immediate purchase, ideal for aluminium profile fastening applications.
