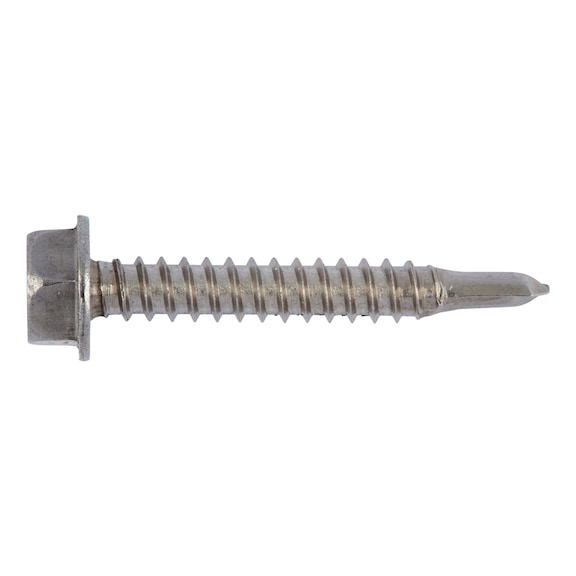

Pias® Drilling Screw | Hexagon Head | A2 Stainless Steel | Self-Tapping | @Pack of 50 | by Wurth
Pias® drilling screws with hexagon heads and A2 stainless steel construction are perfect for fastening aluminum profiles to substructures. Designed for efficiency, these self-tapping screws reduce assembly time by at least 50% and are suitable for materials up to 4.5 mm thick. Ideal for professionals, they ensure secure fastening with a drilling tip that eliminates the need for pre-drilling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Hexagon Head | A2 Stainless Steel | Self-Tapping | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 21414225
Alternatively Known As: Self-drilling screw, Hex head stainless steel screw, Aluminium drilling screw, A2 stainless steel fastener
Technical Specifications
- Material: Stainless steel A2
- Surface: Plain
- Head type: Hexagon head
- Drive type: Hexagon (WS7)
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Nominal diameter: 4.2 mm
- Length: 25 mm
- Head diameter: 8.8 mm
- Flange diameter: 8.18 mm
- Head height: 4.0 mm
- Drill tip length: 5.5 mm
- Screw-thread length with drill tip: 22 mm
- Max. material thickness to be drilled: 4.5 mm
- Max. substructure thickness: 3 mm
- Min./max. attachment thickness: 1.5-17 mm
- Recommended installation speed: 1700-2500 rpm
- Approval: ETA-10/0184
- RoHS-compliant: Yes
- Dimensions (H x L x W): 25mm x 25mm x 8.8mm
- Weight: 0.05 kg
Key Features
- Reduces assembly time by at least 50% due to efficient drill tip
- Drilling without graining, thread moulding, and securing all in one operation
- Hexagon head with hexagon drive for secure fastening
- Self-tapping screw thread with drilling tip
- RoHS-compliant stainless steel A2 material
- Suitable for max. metal thickness of 4.5 mm and substructure thickness up to 3 mm
Professional Installation Requirements
- Use a suitable drill driver with depth stop; impact screwdrivers are not permitted. Screws must be attached perpendicular to the surface.
Applications
- Fastening aluminium profiles to aluminium substructures up to 4 mm thickness
- Suitable for component combinations tI/tII according to approval ETA-10/0184 ALU/ALU
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from durable stainless steel for long service life reducing replacement waste
- RoHS-compliant ensuring no hazardous substances
Warranty Information
Wurth standard warranty against manufacturing defects applies.
Available Now
Wurth pias® drilling screws hexagon head A2 stainless steel 50 PCS are available for immediate purchase, ideal for aluminium profile fastening applications.
