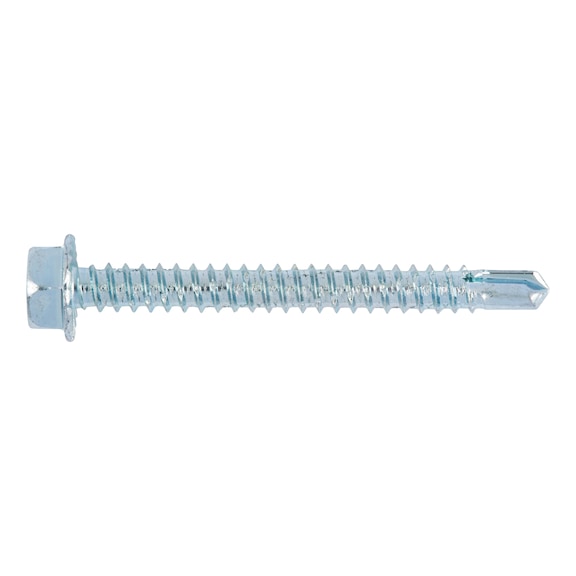

Pias® Drilling Screw | Hexagon Head & Drill Tip | Case-Hardened Steel | Zinc-Plated Blue Passivated | by WURTH
The Pias® drilling screw features a hexagon head and drill tip, designed for efficient fastening in steel construction. Made from case-hardened steel and zinc-plated with a blue passivation for enhanced corrosion resistance, this screw is perfect for attaching steel profiles to substructures up to 5 mm thick. Ideal for professionals, it reduces assembly time significantly, ensuring a reliable and durable installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Hexagon Head & Drill Tip | Case-Hardened Steel | Zinc-Plated Blue Passivated | by WURTH
Brand: WURTH
SKU: 021442 13
Alternatively Known As: Self-drilling screw, Hex head drill screw, Metal drilling screw, Zinc-plated drilling screw
Technical Specifications
- Material: Case-hardened steel
- Coating: Zinc-plated, blue passivated
- Suitable for steel substructures ≤ 5 mm
- Requires use with suitable drill driver (e.g., cordless drill driver with depth stop)
- Impact screwdrivers not permitted
- Must be attached perpendicular to the surface
- Dimensions (H x L x W): 30mm x 30mm x 6mm
- Weight: 0.1 kg
Key Features
- Hexagon head for secure fastening
- Drill tip reduces assembly time by at least 50%
- Case-hardened steel for durability
- Zinc-plated and blue passivated for corrosion resistance
Professional Installation Requirements
- Installation requires a suitable drill driver with depth stop; impact screwdrivers must not be used. Screws must be installed perpendicular to the surface for optimal performance.
Applications
- Attaching steel profiles to steel substructures up to 5 mm thickness
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Reduces assembly time, lowering energy consumption during installation
- Durable coating extends product life, reducing waste
Warranty Information
Warranty as per WURTH standard terms and conditions.
Available Now
The WURTH pias® drilling screw with hexagon head and drill tip is available for immediate purchase, ideal for steel construction and metal fastening applications.
