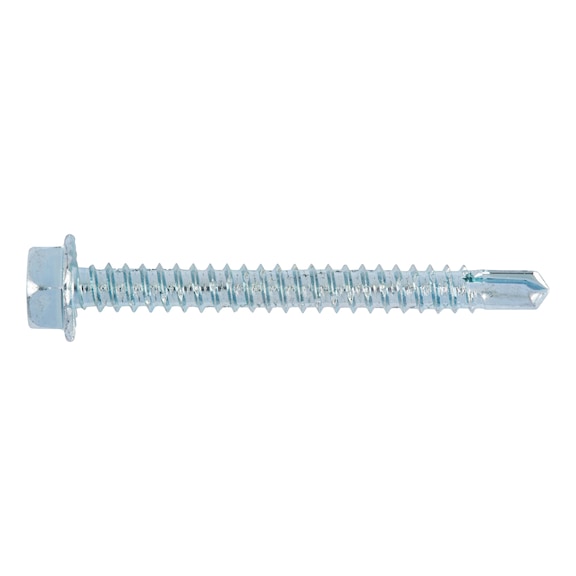

Pias® Drilling Screw | Hexagon Head & Drill Tip | Case-Hardened Steel | Zinc-Plated | @Pack of 50 | by Wurth
Pias® drilling screws with hexagon head and drill tip are designed for efficient fastening in construction and metal assembly applications. Made from case-hardened steel and zinc-plated for durability, these screws reduce assembly time by 50% and are ideal for attaching steel profiles to substructures. Perfect for professionals, they ensure reliable performance without the need for pre-drilling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Hexagon Head & Drill Tip | Case-Hardened Steel | Zinc-Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 2143513
Alternatively Known As: Self-drilling screw, Hex head drilling screw, Metal drilling screw, Zinc plated screw, Blue passivated screw

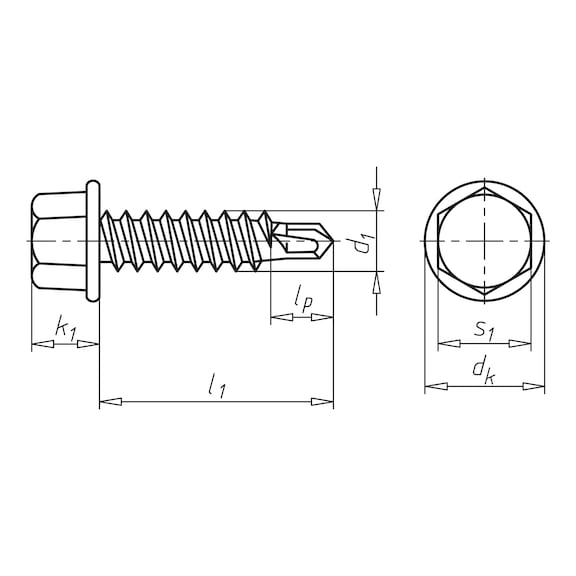

Technical Specifications
- Dimensions (H x L x W): 3.45mm x 13mm x 8.3mm
- Weight: 0.02 kg
Key Features
- Case-hardened steel with zinc plating and blue passivation
- Hexagon head with WS5.5 external drive
- Drill tip reduces assembly time by at least 50%, enabling drilling without centre punching
- Self-tapping screw thread with drilling tip for all-in-one operation: drilling, thread moulding, and securing
- Suitable for max. material thickness to be drilled through of 2.5 mm and max. substructure thickness of 1.5 mm
- Recommended installation speed between 1700-2500 rpm
- Zinc-plated screws suitable only where dampness is not expected
- Must be installed perpendicular to the surface using a suitable drill driver; impact screwdrivers are not permitted
Professional Installation Requirements
- Installation requires a suitable drill driver with depth stop; impact screwdrivers are not permitted. Screws must be attached perpendicular to the surface for optimal performance.
Applications

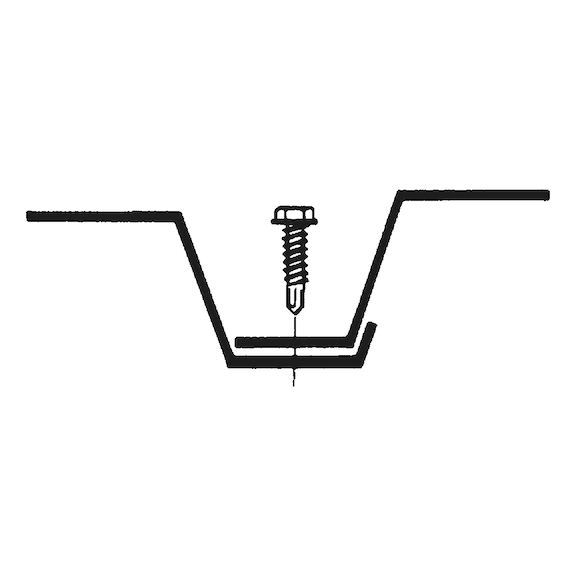

- Attaching steel profiles to steel substructures up to 5 mm thickness
- Suitable for component combinations tI/tII according to approval ETA-10/0184
- Use in steel/steel connections with diameters 4.2 mm to 6.3 mm
- Ideal for construction and metal assembly applications where dampness is not expected
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant, ensuring restriction of hazardous substances
- Durable zinc plating extends product life, reducing replacement frequency and waste
Warranty Information
Wurth provides standard warranty against manufacturing defects; specific warranty terms available upon request.
Available Now
Available for immediate purchase, ideal for steel profile fastening in construction and metalworking applications.
