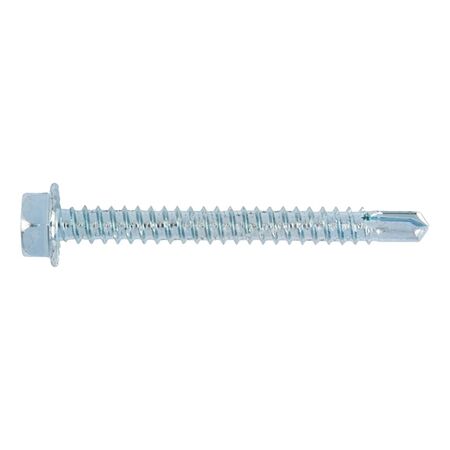

Pias® Drilling Screw | Hexagon Head & Drill Tip | Case-Hardened Steel | Zinc-Plated | @Pack of 50 | by Wurth
Pias® drilling screws with hexagon head and drill tip are designed for efficient fastening in construction and metal assembly. Made from case-hardened steel and zinc-plated for durability, these screws reduce assembly time by 50% and are ideal for attaching steel profiles to substructures. Perfect for professionals, they ensure reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Hexagon Head & Drill Tip | Case-Hardened Steel | Zinc-Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 2144232
Alternatively Known As: Self-drilling screw, Hex head drilling screw, Metal drilling screw, Zinc plated drilling screw, Blue passivated screw
Technical Specifications
- Dimensions (H x L x W): 4.3mm x 32mm x 8.8mm
- Weight: 0.05 kg
Key Features
- Case-hardened steel with zinc plating and blue passivation
- Hexagon head with WS7 external drive
- Drill tip reduces assembly time by at least 50%, enabling drilling without centre punching
- Thread moulding and securing in one operation
- Suitable for max. metal thickness of 3.0 mm and substructure thickness up to 2 mm
- Self-tapping screw thread with drilling tip
- RoHS-compliant
- Approved under ETA-10/0184
- Recommended installation speed between 1700-2500 rpm
Professional Installation Requirements
- Use a suitable drill driver with depth stop; impact screwdrivers are not permitted. Screws must be attached perpendicular to the surface for optimal performance.
Applications
- Attaching steel profiles to steel substructures up to 5 mm thickness
- Suitable for component combinations tI/tII according to approval ETA-10/0184
- Use in steel/steel connections with diameters 4.2 mm to 6.3 mm
- Ideal for construction and metal assembly applications where dampness is not expected
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
- Efficient installation reduces energy consumption during assembly
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Available for immediate purchase, ideal for steel profile fastening in construction and metal fabrication.
