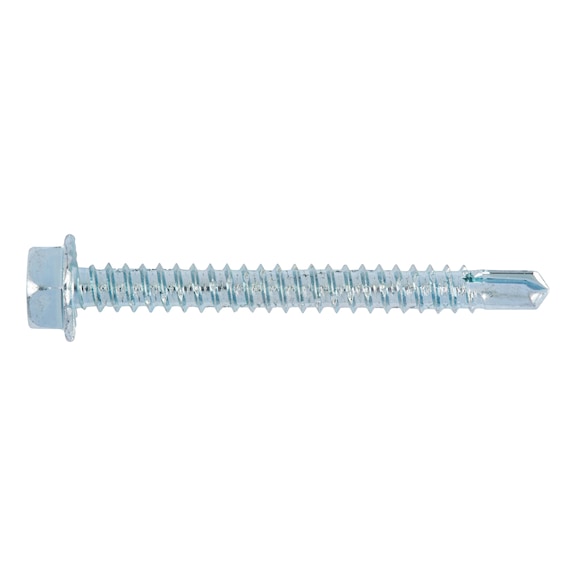

Pias® Drilling Screw | Hexagon Head & Drill Tip | Zinc-Plated & Blue Passivated | @Pack of 50 | by Wurth
Pias® drilling screws with hexagon head and drill tip are designed for efficient fastening in steel profiles. Made from case-hardened steel and featuring a zinc-plated, blue passivated finish, these screws reduce assembly time by 50% and are ideal for applications requiring self-tapping threads. Perfect for construction and industrial use, they ensure secure connections with a maximum metal thickness of 3.0 mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Hexagon Head & Drill Tip | Zinc-Plated & Blue Passivated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 2144216
Alternatively Known As: Self-drilling screw, Hex head drilling screw, Zinc plated steel screw, Metal drilling screw, Blue passivated screw
Technical Specifications
- Material: Case-hardened steel
- Surface: Zinc plated, blue passivated
- Head type: Hexagon head
- Drive type: Hexagon (WS7)
- Thread type: Self-tapping screw thread
- Tip shape: Drilling tip

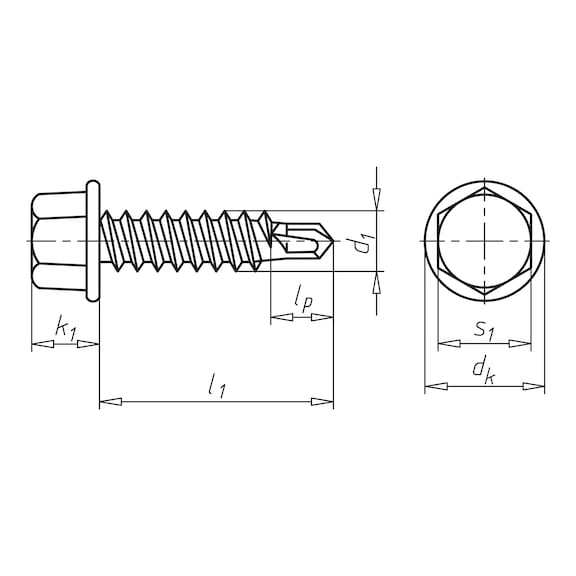

- Nominal diameter: 4.2 mm
- Length: 16 mm
- Head diameter: 8.8 mm
- Head height: 4.3 mm
- Drill tip length: 4.5 mm
- Screw-thread length with drill tip: 12.5 mm
- Max. material thickness to be drilled: 3.0 mm
- Max. substructure thickness: 2 mm
- Min./max. attachment thickness: 1.5-8.5 mm
- Approval: ETA-10/0184
- Recommended installation speed: 1700-2500 rpm
- Use with suitable drill driver only; impact screwdrivers not permitted
- Dimensions (H x L x W): 16mm x 16mm x 8.8mm
- Weight: 0.02 kg
Key Features
- Case-hardened steel with zinc plating and blue passivation
- Hexagon head with WS7 external drive
- Drill tip reduces assembly time by at least 50%, enabling drilling without centre punching
- Thread moulding and securing in one operation
- Suitable for max. metal thickness of 3.0 mm and substructure thickness up to 2 mm
- Self-tapping screw thread with drilling tip
- RoHS-compliant
Professional Installation Requirements
- Installation requires a suitable drill driver with depth stop; impact screwdrivers are not permitted. Screws must be attached perpendicular to the surface.
Applications

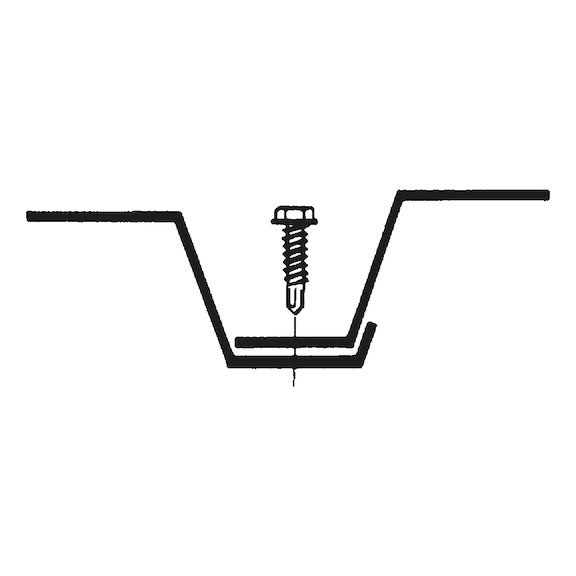

- Attaching steel profiles to steel substructures up to 5 mm thickness
- Suitable for component combinations tI/tII according to approval ETA-10/0184
- Steel to steel connections with nominal diameter 4.2 mm to 6.3 mm
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life and reduces replacement frequency
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
Wurth pias® drilling screws with hexagon head and drill tip are available for immediate purchase, ideal for steel profile fastening in construction and industrial applications.
