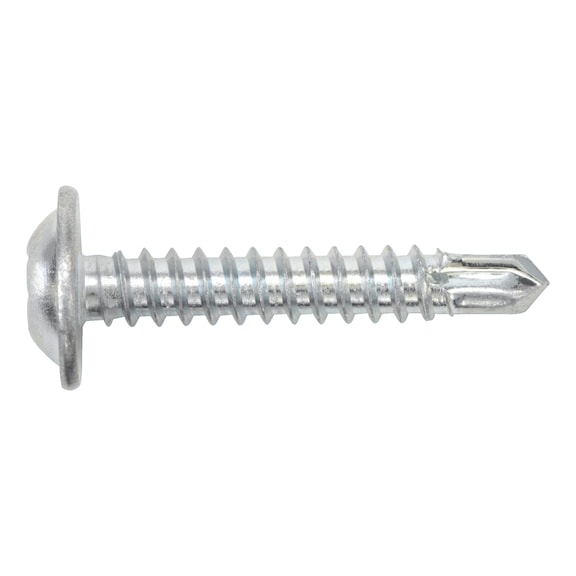

Pias® Drilling Screw | Round Head with Collar | AW Drive | Zinc Plated | @Pack of 50 | by Wurth
Pias® drilling screws with a round head and AW drive are perfect for metal construction and assembly. Made from galvanized steel with a zinc-plated surface, these screws ensure corrosion resistance and fatigue-free screwing. Ideal for industrial applications, they combine drilling, threading, and screwing in one step, making your tasks quicker and more efficient.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Round Head with Collar | AW Drive | Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 21814216
Alternatively Known As: Self-drilling screw, Pan head drilling screw, AW drive screw, Metal drilling screw, Zinc plated screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated (blue passivated A3K)

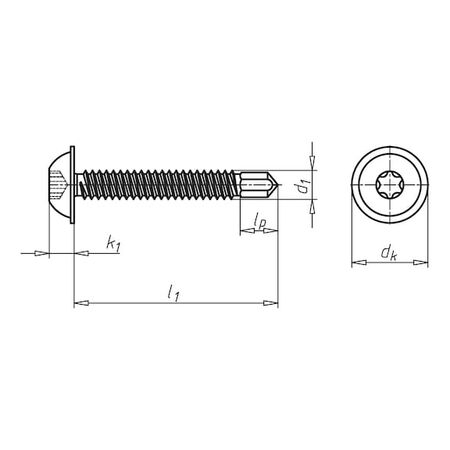

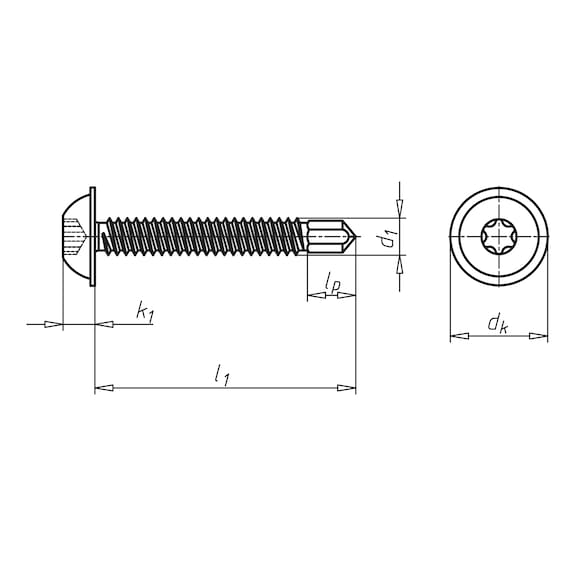

- Nominal diameter (d1): 4.2 mm
- Length (l1): 16 mm
- Head diameter (dk): 11.0 mm
- Head height (k1): 2.9 mm
- Drill tip length (lp): 3.7 mm
- Head type: Pan head with collar

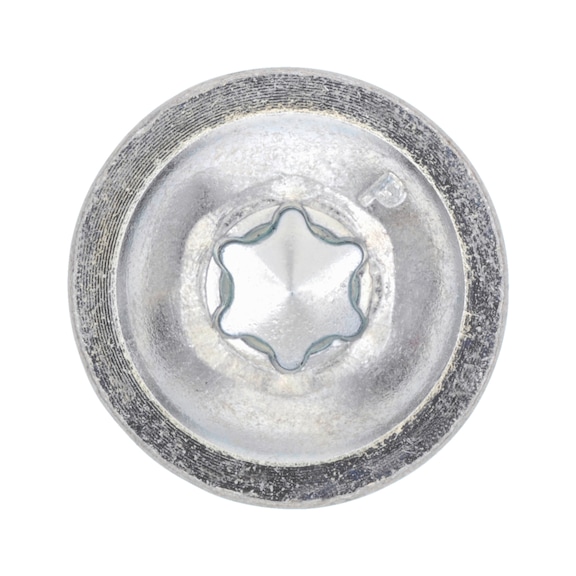

- Internal drive: AW20
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 3.5 mm
- Max. attachment thickness (lB): 9 mm
- Min./max. recommended installation speed (idling): 1700-2500 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.9mm x 16mm x 11mm
- Weight: 0.05 kg
Key Features
- Galvanised steel with blue passivated (A3K) surface for corrosion resistance
- AW drive system for enhanced torque transmission and longer service life
- Drilling, threading, and screwing-in all in one step to reduce time and effort
- Exact drilling diameter for each screw connection minimizes thread tolerance
- Pan head with collar design prevents installation errors and reduces surface pressure
- Even force distribution protects surface coating and improves corrosion resistance
- Fatigue-free screwing with optimum centring and better mounting output
Professional Installation Requirements
- Professional installation recommended to ensure correct torque and fastening technique for optimal performance and safety.
Applications
- Metal construction and assembly
- Sheet metal fastening
- Industrial and manufacturing applications
- General purpose drilling and screwing tasks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable corrosion-resistant coating extends product life, reducing waste
Warranty Information
Wurth offers standard product warranty against manufacturing defects. Please refer to Wurth's warranty policy for details.
Available Now
Wurth pias® drilling screws with round head and AW drive are available for immediate purchase, ideal for metal fastening and industrial applications.
