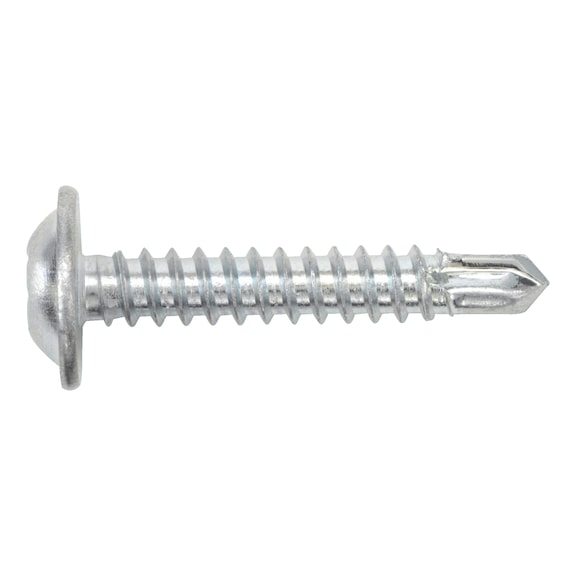

Pias® Drilling Screw | Round Head with Collar | AW Drive | Zinc Plated | @Pack of 50 | by Wurth
Pias® drilling screws with a round head and AW drive are perfect for metal construction and assembly tasks. Made from galvanized steel with a zinc-plated surface, these screws offer excellent corrosion resistance and enhanced torque transmission. Ideal for industrial applications, they simplify drilling, threading, and screwing-in all in one step, ensuring optimal fastening performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Round Head with Collar | AW Drive | Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 21814232
Alternatively Known As: Self-tapping drilling screw, Pan head drilling screw, AW drive screw, Metal drilling screw, Zinc plated screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated (blue passivated A3K)
- Nominal diameter (d1): 4.2 mm
- Length (l1): 32 mm
- Head diameter (dk): 11.0 mm
- Head height (k1): 2.9 mm
- Drill tip length (lp): 3.7 mm
- Head type: Pan head with collar
- Internal drive: AW20
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 3.5 mm
- Max. attachment thickness (lB): 25 mm
- Min./max. recommended installation speed (idling): 1700-2500 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.9mm x 32mm x 11mm
- Weight: 0.05 kg
Key Features
- Galvanised steel with blue passivated (A3K) surface for corrosion resistance
- AW drive system for enhanced torque transmission and longer service life
- Drilling, threading, and screwing-in all in one step to reduce time and effort
- Exact drilling diameter minimizes thread tolerance and prevents installation errors
- Pressed-on flange reduces surface pressure to prevent stress cracks
- Even force distribution protects surface coating and improves corrosion resistance
- Optimum centring and better mounting output with fatigue-free screwing
Professional Installation Requirements
- Professional installation recommended to ensure correct torque application and optimal fastening performance.
Applications
- Metal construction and assembly
- Sheet metal fastening
- Industrial and manufacturing applications
- General purpose drilling and screwing tasks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable corrosion-resistant coating extends product life, reducing waste
Warranty Information
Wurth offers a standard warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
Wurth pias® drilling screws are available for immediate purchase, ideal for metal fastening and industrial applications.
