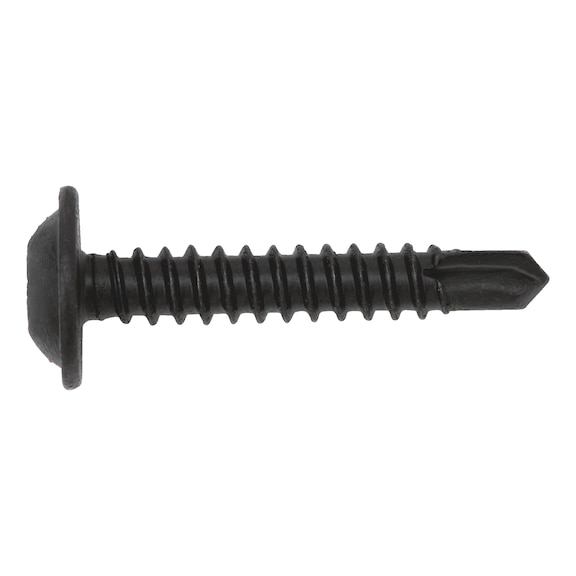

Pias® Drilling Screw | Round Head with Collar | AW Drive | Zinc-Flake Coated | @Pack of 50 | by Wurth
Pias® drilling screws are designed for efficient metal fastening, featuring a round head with collar and AW drive for enhanced torque transmission. Ideal for metal construction and assembly, these self-tapping screws simplify drilling and threading in one step, ensuring a secure fit with reduced surface pressure to prevent stress cracks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Round Head with Collar | AW Drive | Zinc-Flake Coated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 21874816
Alternatively Known As: Self-drilling screw, Pan head drilling screw, AW drive screw, Zinc-flake coated screw, Metal drilling screw
Technical Specifications
- Material: Steel
- Surface: Black zinc-flake coating (ZFBM)

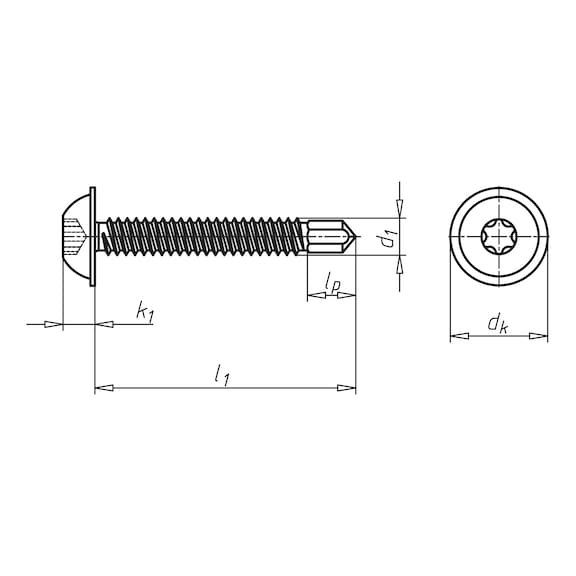

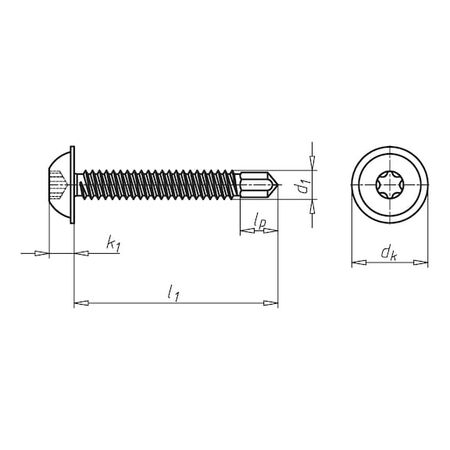

- Nominal diameter: 4.8 mm
- Length: 16 mm
- Head diameter: 12.75 mm
- Head height: 3.6 mm
- Drill tip length: 4.5 mm
- Head type: Pan head with collar
- Internal drive: AW25
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Minimum recommended substructure thickness: 1.5 mm
- Maximum material thickness to be drilled through (metal): 4.0 mm
- Maximum attachment thickness: 7 mm
- Recommended installation speed (idling): 1200-1800 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 16mm x 16mm x 12.75mm
- Weight: 0.02 kg
Key Features
- Steel construction with black zinc-flake coating (ZFBM) for corrosion resistance
- AW drive system for enhanced torque transmission and longer service life
- Drilling, threading, and screwing-in all in one work step to reduce time and effort
- Exact drilling diameter for each screw connection minimizing thread tolerance
- Pan head with collar to generate lower surface pressure preventing stress cracks
- Full thread self-tapping screw thread design
- Even force distribution prevents damage to surface-protection coating
Professional Installation Requirements
- Installation should be performed by professionals using suitable drills and drivers at recommended speeds to ensure optimal fastening and avoid damage.
Applications
- Metal construction and assembly
- Sheet metal fastening
- General industrial and construction fastening requiring drilling and threading in one step
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc-flake coating extends product life reducing waste
Warranty Information
Wurth offers standard warranty against manufacturing defects; please refer to Wurth's warranty policy for details.
Available Now
Wurth pias® drilling screws are available for immediate purchase, ideal for metal fastening and construction applications.
