Trade Discount 21%

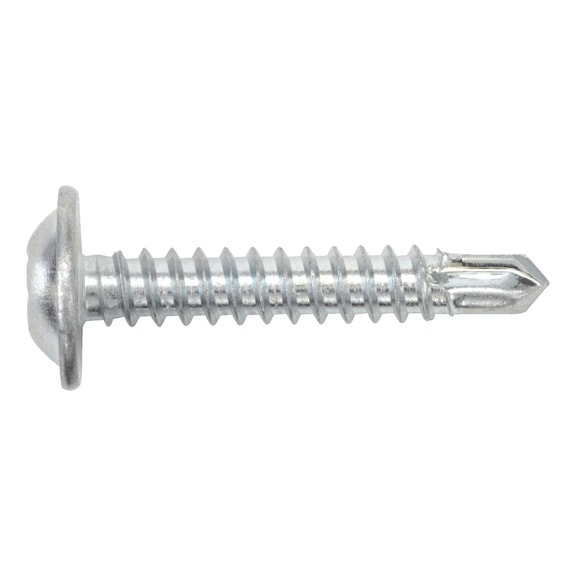

Pias® Drilling Screw | Round Head with Collar | AW Drive | Zinc Plated | @Pack of 50 | by Wurth
Pias® drilling screws are designed for efficient metal fastening, featuring a round head with collar and AW drive for enhanced torque transmission. Made from galvanized steel with a corrosion-resistant zinc plated surface, these screws simplify installation by combining drilling, threading, and screwing in one step—ideal for professionals in metal construction and assembly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pias® Drilling Screw | Round Head with Collar | AW Drive | Zinc Plated | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 21814213
Alternatively Known As: Self-drilling screw, Pan head screw with collar, AW drive screw, Metal drilling screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated (blue passivated A3K)
- Nominal diameter: 4.2 mm
- Length: 13 mm
- Head diameter: 11.0 mm
- Head height: 2.9 mm
- Drill tip length: 3.7 mm
- Head type: Pan head with collar
- Internal drive: AW20
- Thread type: Self-tapping full thread
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 3.5 mm
- Max. attachment thickness: 6 mm
- Recommended installation speed (idling): 1700-2500 rpm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.9mm x 13mm x 11mm
- Weight: 0.02 kg
Key Features
- Galvanised steel with blue passivated (A3K) surface for corrosion resistance
- AW drive system for enhanced torque transmission and longer service life
- Drilling, threading, and screwing-in all in one step to reduce time and effort
- Exact drilling diameter minimizes thread tolerance and prevents installation errors
- Pressed-on flange reduces surface pressure to prevent stress cracks
- Even force distribution protects surface coating and improves corrosion resistance
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure correct torque and fastening performance.
Applications
- Metal construction and assembly
- Sheet metal fastening
- General industrial and construction fastening requiring self-drilling screws
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable corrosion-resistant coating extends product life, reducing waste
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
Wurth pias® drilling screws are available for immediate purchase, ideal for metal fastening and construction applications.
